IN

OUT

IN

OUT

Installation / Operation Instructions

Unpack the amplifier and power supply from the box. Place
the amplifier in a dry location, usually behind the shelf
where the monitors are located.

The unit has integrated mounting brackets that are pre-
drilled in case the user wishes to screw the unit to the shelf
(

).

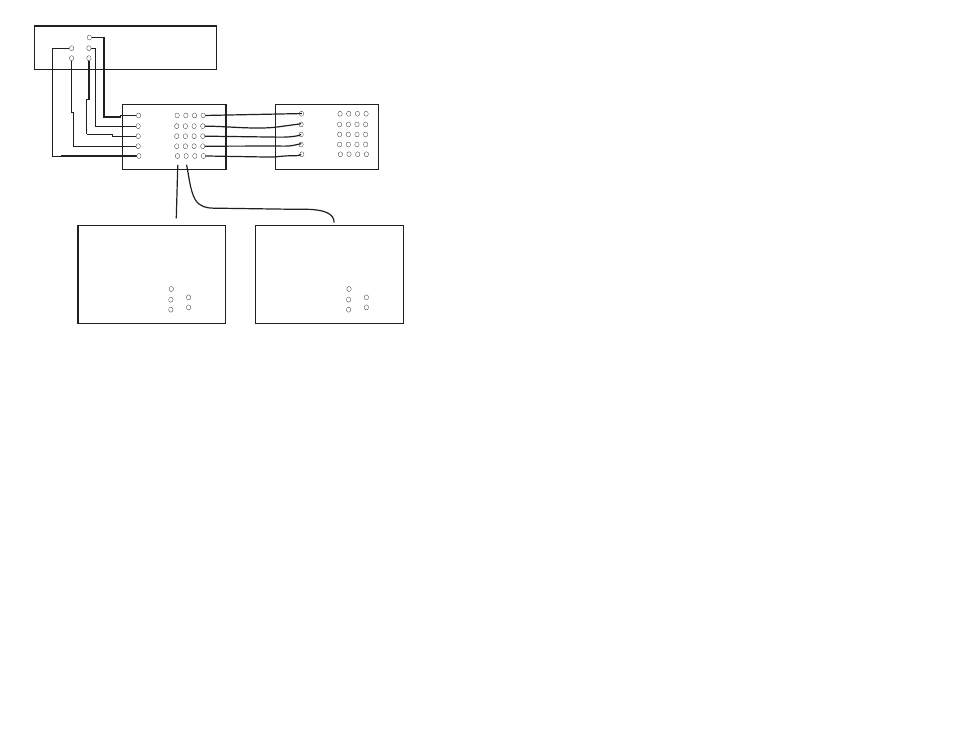

Connect the source device outputs to the appropriate input
jacks on the AV400COMP. Connect cabling from the
AV400COMP outputs to the desired display or recording
device. One of the outputs may be used as normal or to
connect to the next distribution amplifier to create more
outputs.

Insert the power supply connector into the power jack of
the AV400COMP. Plug the wall transformer into a 120Vac
outlet. The power LED should be on and the unit is ready to
use.

screws supplied by user

Monitor 1

Monitor 2

Source

AV400COMP

The AV400COMP has one set of inputs and four sets of outputs.
The unit allows any Audio/Video source, with Y, Cb, Cr, or Y, Pb, Pr
Outputs (component), to distribute Audio and Video to four different
locations without any signal loss. Note: the fourth output may be used to
daisy chain several units together as is typically done in store displays.

Nominal Input level:

1 Volt peak to peak

Gain:

1 Volt into 75 ohms (2 Volts Unterminated)

Input Impedance:

75 ohms

Output Impedance:

75 ohms

Isolation port to port:

32 dB

Isolation out to input:

60 dB

Return loss:

18 dB

Video bandwidth:

> 75 MHz (HDTV requires 37MHz min.)

Nominal Input level:

1 Volt peak to peak

Gain:

Unity (one to one)

Input impedance:

22k ohm

Output impedance:

1k ohm

THD:

0.05%

Frequency Response:

20Hz to 100kHz

Channel Separation:

>75dB

Port to Port Isolation:

60dB

Out to Input Isolation:

60dB

Signal to Noise:

100dB @ 2 Volts out

Requirement: External 9 to 10 Volt AC @ 500mA with a ( 2.1mm center)
Coaxial connector. Power Supply is included.

SPECIFICATIONS

VIDEO (All Three Video Channels )

AUDIO

Analog:

POWER
