CITRONIC DJ PLATFORM
NOTE: Before starting the installation, make sure you have read and completely understand these
instructions.
IMPORTANT!
•
Check to ensure that all parts are supplied. If any are missing contact your retailer
•
Check the below measurements of your product to correctly select the right plate for your
needs.
In the box:
1 x Allen wrench 1 x Plate 1: 370 x 278 x 14mm
4 x M6 x 20 screws 1 x Plate 2: 375 x 325 x 14mm
1 x Plastic stopper 1 x Desk top
1 x Stopper screw 1 x Desk Clamp
1 x Adjustable arm 1 x Bracket to mount to plate
Tools required for the installation:
1 x Phillips Screw Driver

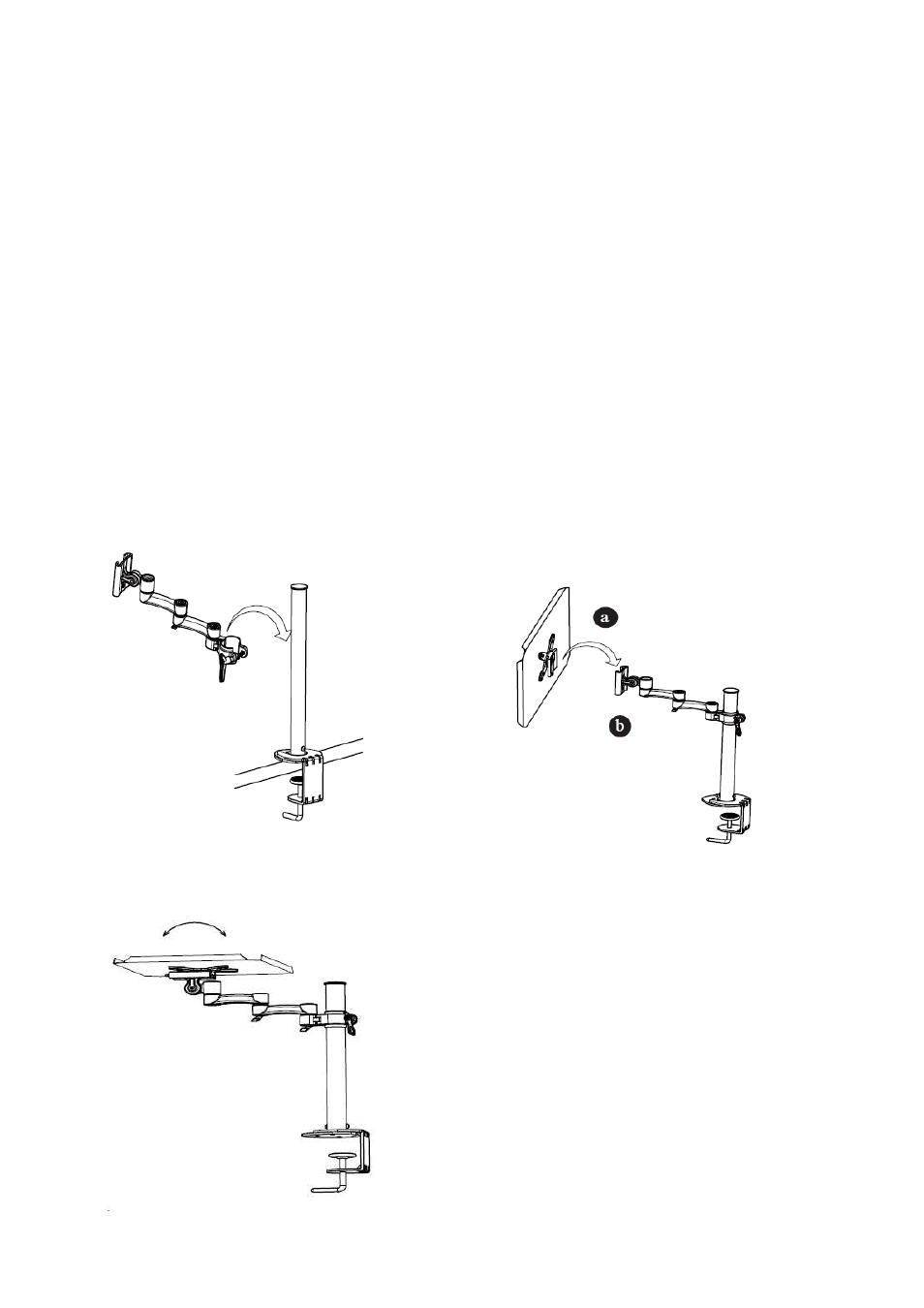

1. Securely fasten the desk pole to the desk
2. Attach your selected sized plate to the
and tighten to ensure no movement: arm of the bracket and secure with the
plastic stopper and screw
3. Turn the knob under the plate to adjust Specification:
the angle of the plate.
Max height:
300mm
Mounting Plate 1: 370 x 278 x 14mm
Mounting Plate 2: 375 x 325 x 14mm
Maximum Weight Load: 10kg
Weight: 3.35kg
