AVSL 154.111 RP4 User Manual
Page 3

154.111UK User Manual
Operation

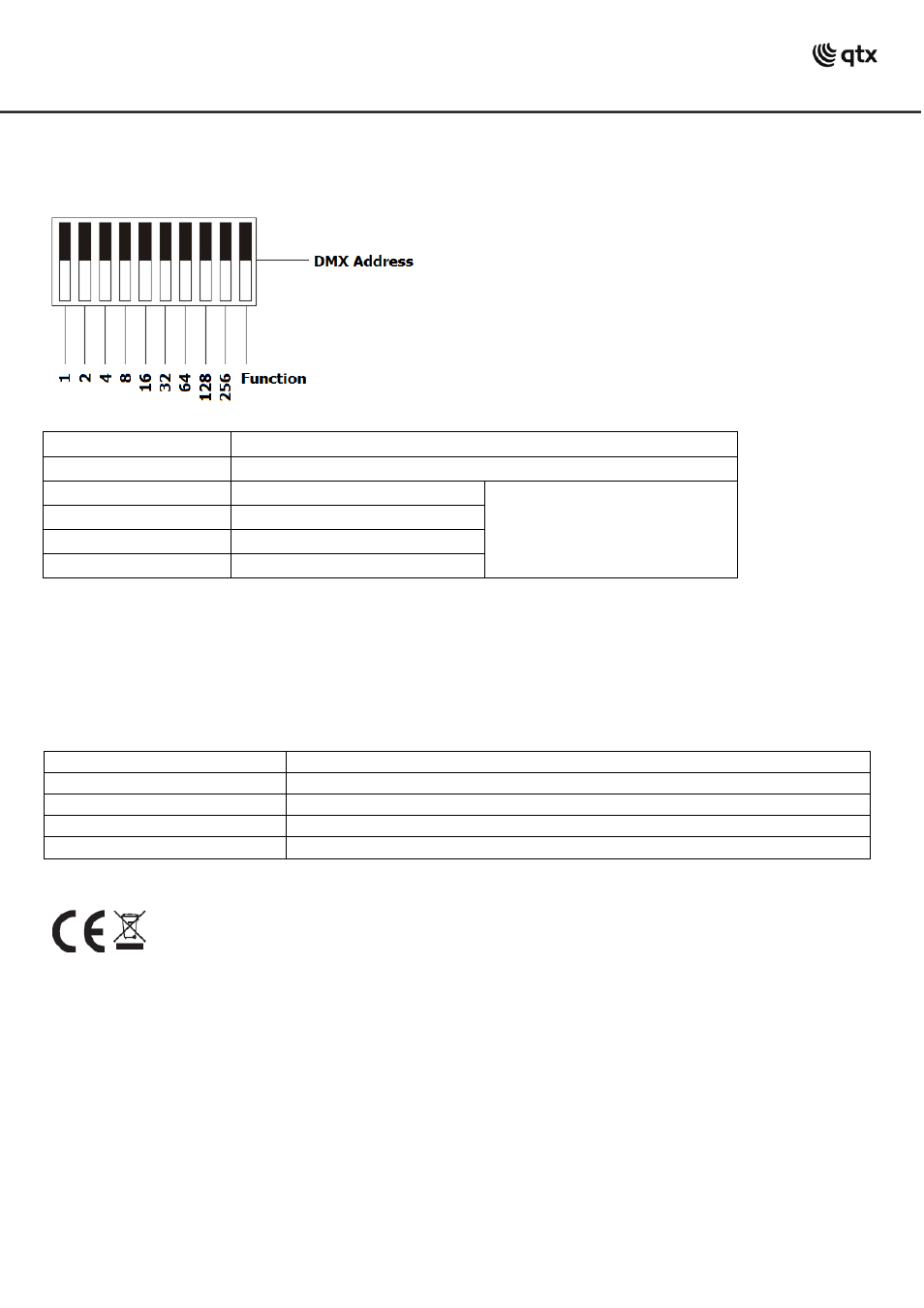

DIP Switch settings
DIP switch ON
Setting
10
DMX control - Set start address using DIP switches 1- 9
1
Channel 1 ON
DIP switch 10 is OFF
2
Channel 2 ON
3
Channel 3 ON
4
Channel 4 ON
The RP4 can be used as a 4 Channel DMX switch pack or for standalone operation:
Stand alone: Set DIP switch 10 to OFF then use switch 1 to 4 to turn on / turn off each channel
DMX Mode: Set DIP switch 10 to ON and use DIP switches 1 - 9 to set the DMX start address.
In DMX mode, 4 channels (starting at the selected start address) can be used to turn on or turn off each channel by
adjusting the slider accordingly (000/0% = OFF, 255/100% = ON)
Specifications
Power supply
230Vac, 50Hz
Power outlets
4 x 2 x IEC
DMX Channels
4
Dimensions
193 x 72 x 260mm
Weight
2.5kg
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or
Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2013. AVSL Group Ltd.
