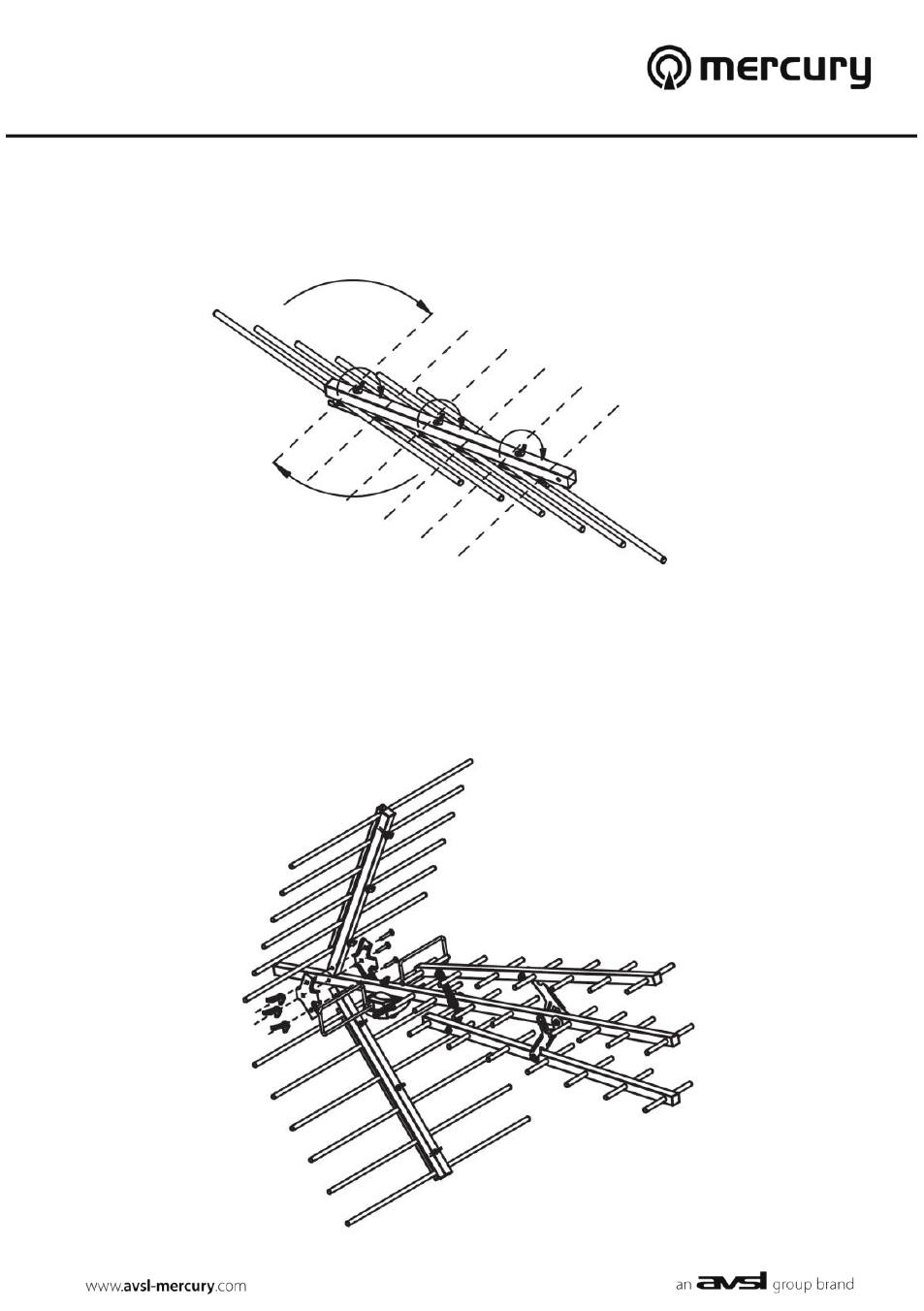

Step 3:
Rotate the elements until they sit into the pre-cut slot in position. Tighten the 3 wing nuts on the reflector
to ensure the elements are tight in place.
Step 4:
Position the reflector housing, reflector and main body as picture below, guide the 3 screws through the
pre drilled holes and fasten the wing nuts on to the screws to ensure reflectors are secured on the main
body.
