INTRODUCTION:

Thank you for choosing Mercury antenna. This is a new concept antenna based on current mobile
communication technology. Anti-UV and water proof casing make it ideal for outdoor installation. It is
specially designed for the purpose of analogue and digital TV reception, with a built in 4G filter, so you
will never have to worry about interference from the 4G mobile signal. The design of this aerial is much
more compact compared to a traditional aerial of the same gain; this is due to the built in, low noise, high
gain amplifier, to make this possible. Ready to install from the box, which will save a considerable amount
of installation time and labour cost. Well-designed outer case will greatly improve the appearance of an
aerial installation.

SPECIFICATION:

Frequency Range :

470-790MHz

Antenna Gain:

35dB

Maximum Output Level:

100dBµV

Impedence:

75Ω

Noise Figure:

≤3.5dB

Power Supply:

12Vdc 50mA

INSTALLATION:

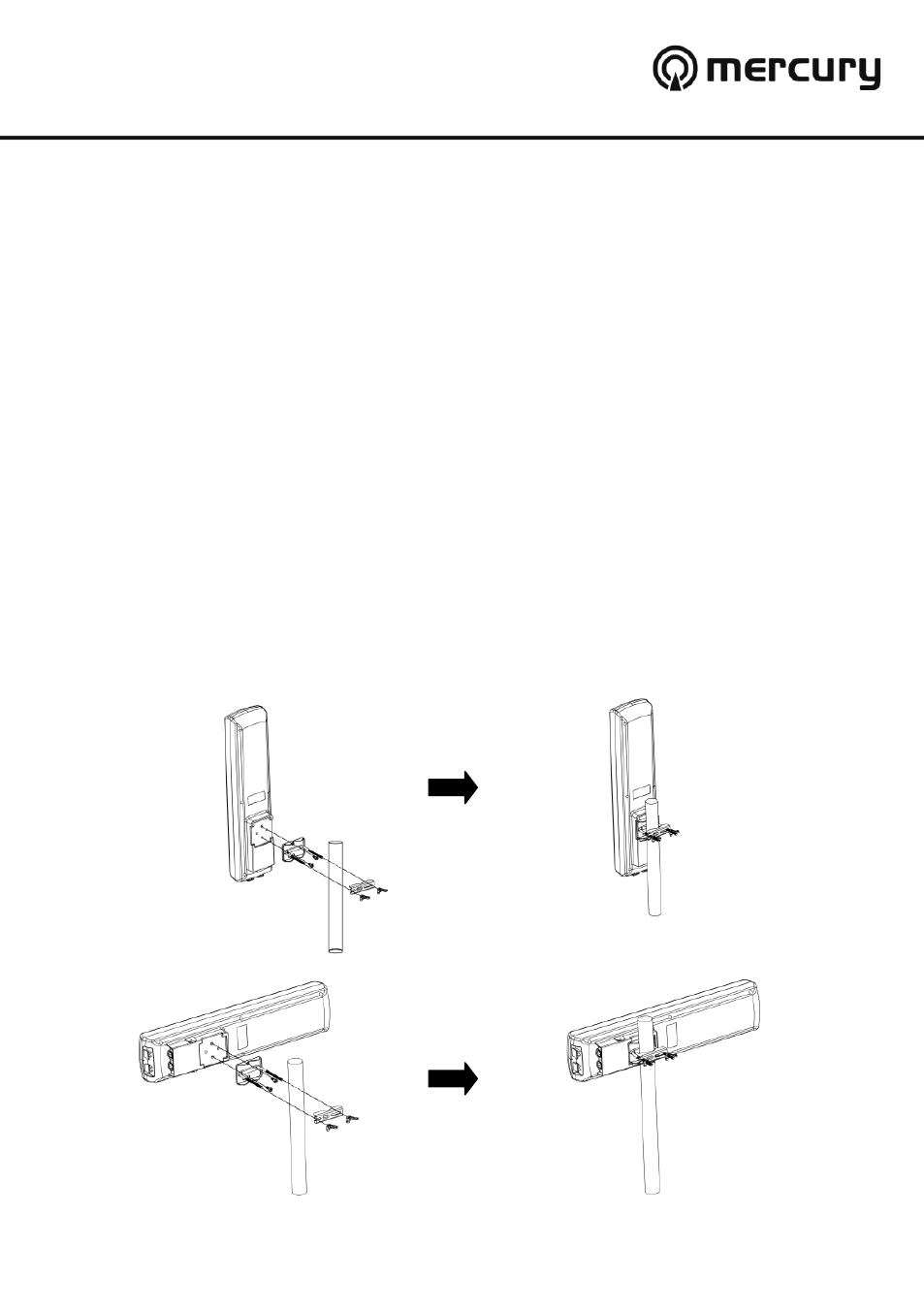

Depending on which plane the wave is transmitting, the antenna can be installed either
horizontally or vertically, using the bracket to clamp the aerial to the pole mast.
