130.022UK User Manual
INTRODUCTION:
Thank you for choosing this Mercury aerial. This aerial is designed for the reception of UHF digital TV
signals. It is designed to clamp onto a satellite dish and does not need a mast. With a built in low noise
signal amplifier and mixer, it boosts the signals and transmits them along the same coax cable as the
satellite signal.
SPECIFICATION:
Power Supply:
Via satellite receiver (13 – 18Vdc 60mA)
Frequency Range: 470 – 790MHz
Gain: 27dB
Impedance: 75Ω
Connector: 1 x SAT input (950 – 2150MHz), 1 x Mix output
Insertion Lost: 3dB
Dimension & weight: 300 x 100 x 180mm, 350g
PRODUCT FEATURES:
- Tool free installation, easily installed onto existing satellite dish.
- Built in 4G signal filter to prevent 4G mobile signal interference.
- Built in high gain low noise amplifier, with DC pass to power the amplifier and LNB from
the satellite receiver.
- Built in signal mixer combines the satellite and terrestrial signals and transmits them down
a single cable, saving material and labour costs.
- Supplied with diplexer to split satellite and terrestrial signals, to feed a set top box and
satellite receiver.
- Compatible with DTV(DVB-T, ATSC, ISDB-T, T-DMB).
INSTALLATION:
Please note, before installation turn the satellite receiver off and unplug from the mains supply. Take care
not to alter the satellite dish position during installation, otherwise realignment may be required.

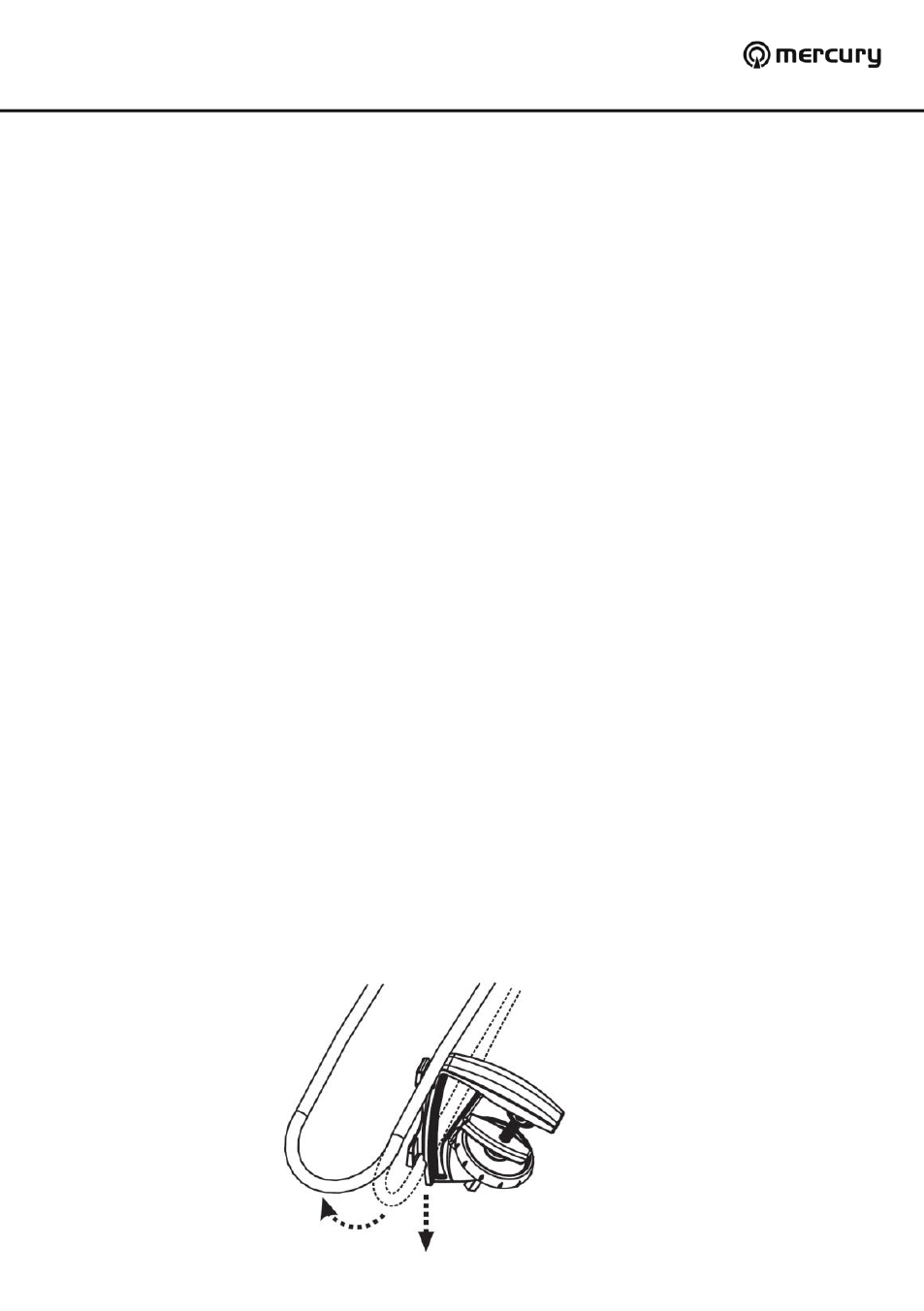

Step 1:
Gently pull the elements apart from each other and detach one side of each of the mounting clamps from
the aerial element.
