Analytical Industries GPR-3500 MO Portable Oxygen Analyzer - Manual (Page 15)

Advanced Instruments Inc.
15
Charging the battery requires a common 9VDC adapter (positive pole located inside the female connector) supplied with the analyzer
and a convenience outlet. The analyzer’s charging circuit accepts 9VDC from any standard AC 110V or 220V adapter (specified when
the order is placed). The electronic design enables the analyzer to remain fully operable during the 8-10 hour charging cycle.

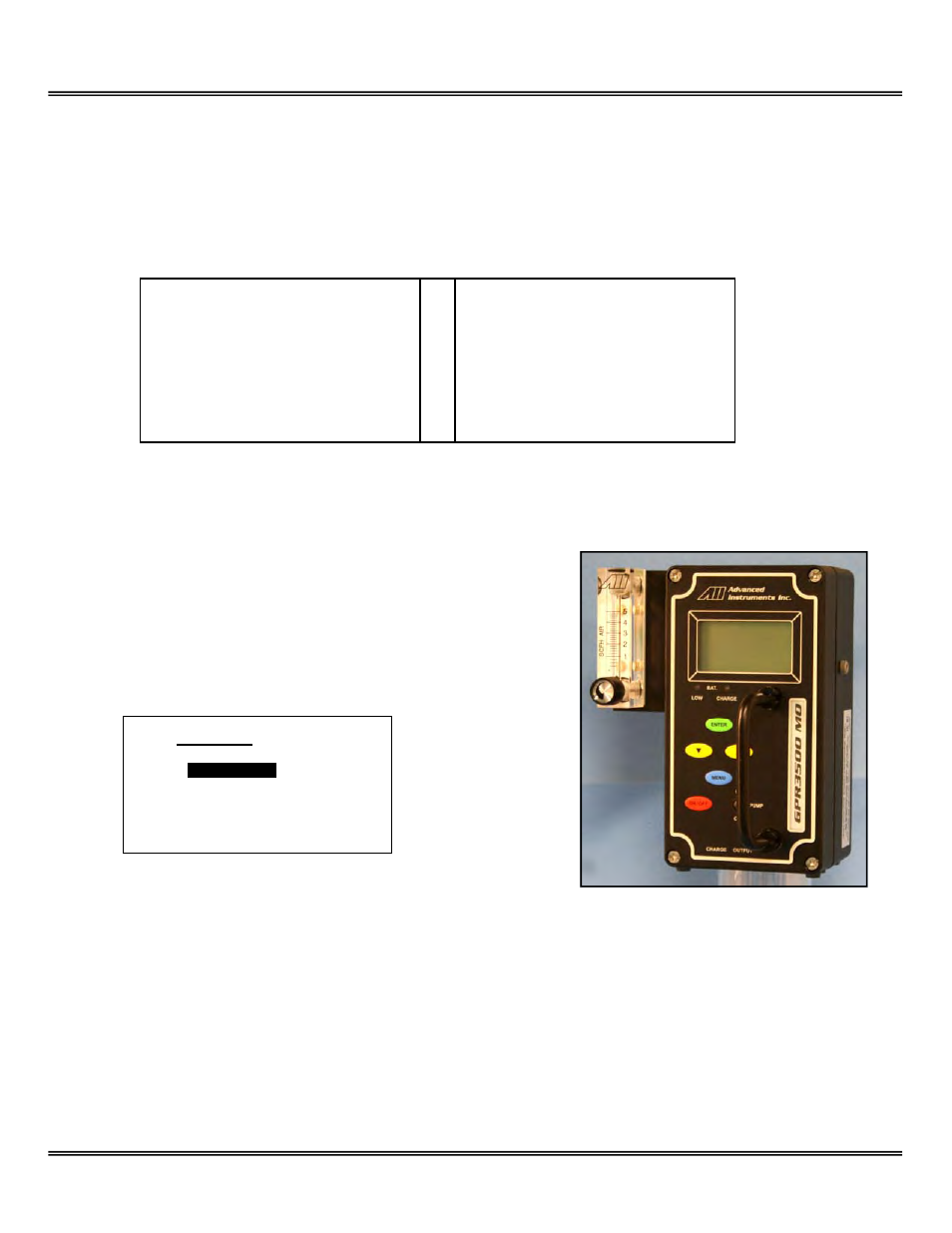

When power is applied, the software performs several diagnostic system status checks termed “START-UP TEST” as illustrated below.
Note: The analyzer display defaults to the sampling mode when 30 seconds elapses without user interface.
START-UP TEST
ELECTRONICS – PASS
LOOP POWER – PASS
TEMP SENSOR – PASS
BAROMETRIC SENSOR – PASS
93.3
%
AUTO SAMPLING
100% RANGE
24.5 C 100 KPA
Menu Navigation
The four (4) pushbuttons located on the front of the portable oxygen purity analyzer operate the micro-processor:
1. Green ENTER (select)
2. Yellow UP ARROW
3. Yellow DOWN ARROW
4. Blue MENU (escape)
Main Menu
Access the MAIN MENU by pressing the MENU key:
MAIN MENU
AUTO SAMPLE
MANUAL SAMPLE
CALIBRATE
24.5 C 100 KPA
Range Selection:
The GPR-3500MO portable oxygen purity analyzer is equipped with a single 0-100% measuring range (see specification); accordingly,
there is no difference between auto and manual sampling.
Start-Up is complete . . .
