Air Suspension AS-2540 REV 2 User Manual
Page 10
10
AS-2540RR REV-2 11/7/2012

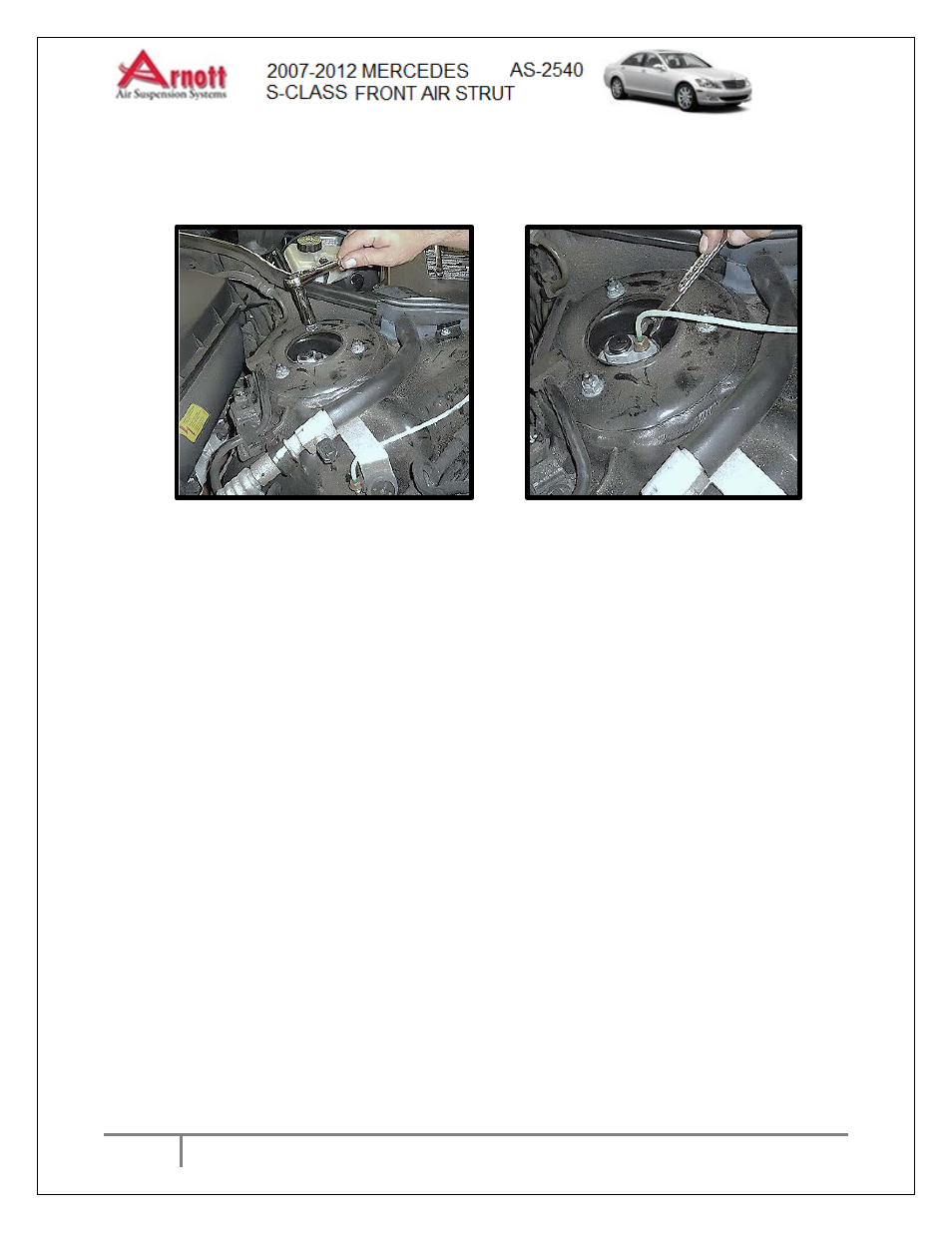

11.0 Tighten top three mount nuts to manufacturer’s specifications. (Figure L)
12.0 Install air line, tighten just past finger tight. (Figure M)
Figure L
Figure M
13.0 Reinstall tire and tighten to manufacturer’s specifications.
14.0 Start engine, wait 2 minutes, operate the raising function to activate
the airmatic system.
15.0 Installation complete.
