Air Suspension AS-2272 REV 4 User Manual
Page 3
3
AS-
2272
ARNOTT REMANUFACTURED FRONT RIGHT
AIR STRUT FOR
2003-2006
MERCEDES-BENZ S-CLASS (W
220
CHASSIS)
W/O ABC, W/4MATIC
AS-2272
REV 4
02/11/2014
7.

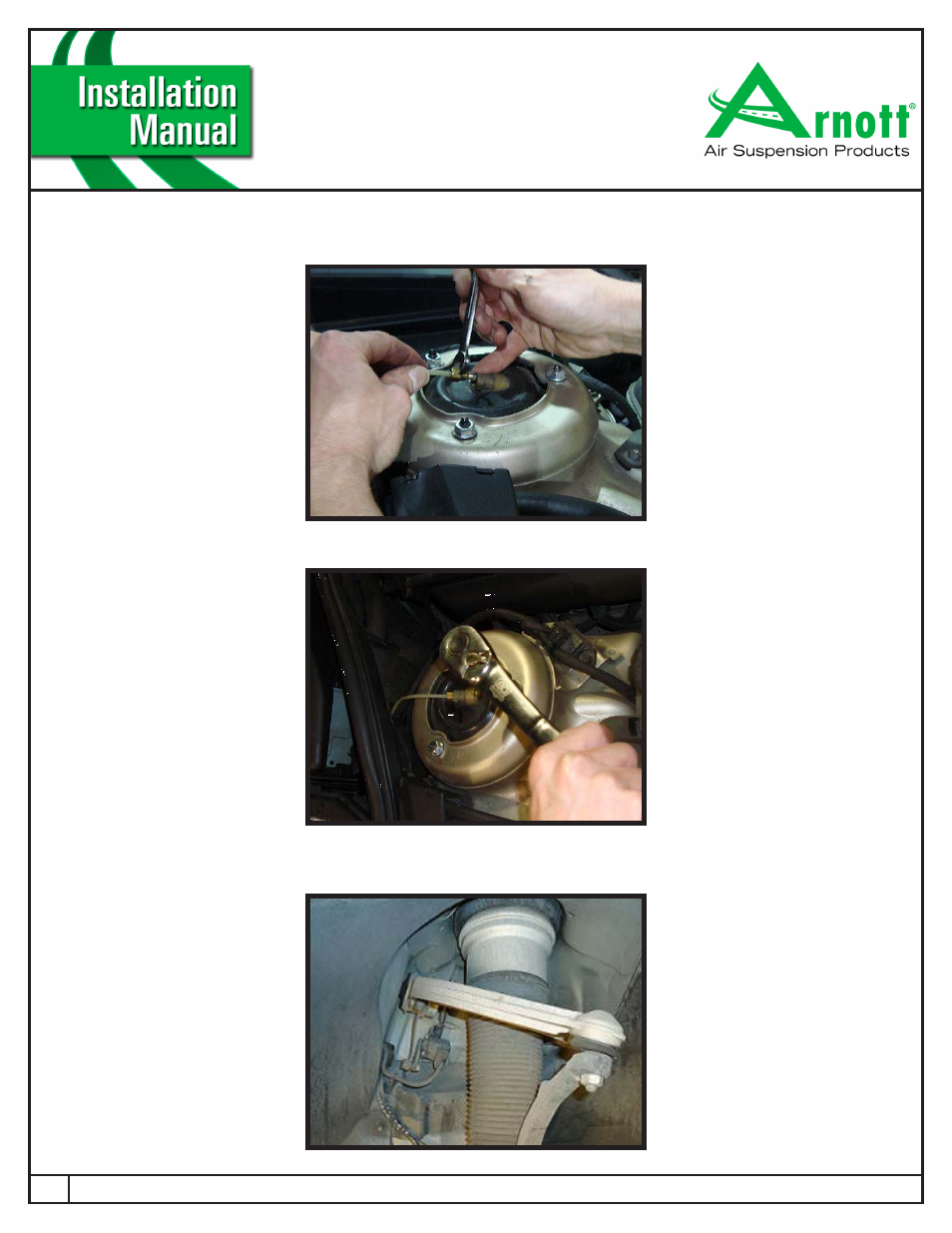

REMOVE THE THREE (3) NUTS HOLDING THE TOP MOUNT OF THE SHOCK. (FIGURE C)
5.
LOOSEN AND REMOVE THE TWO (2) BOLTS HOLDING THE BOTTOM OF THE AIR STRUT TO THE LOWER BRACKET.
6.
RAISE HOOD AND DISCONNECT THE AIR SUPPLY LINE TO THE SHOCK ASSEMBLY. (FIGURE B)
FIGURE C
FIGURE B
8.
SEPARATE UPPER CONTROL ARM BALL JOINT FROM THE SPINDLE ASSEMBLY AND REMOVE THE AIR STRUT.
(FIGURE D)
FIGURE D
