Air Suspension A-2726 REV 1 User Manual
Page 4
4
REV 1
12/13/2013
A-2726
A-
2726
ARNOTT REAR AIR SPRING
FOR
2003-2009
MERCEDES-BENZ E-CLASS WAGON W/O ADS

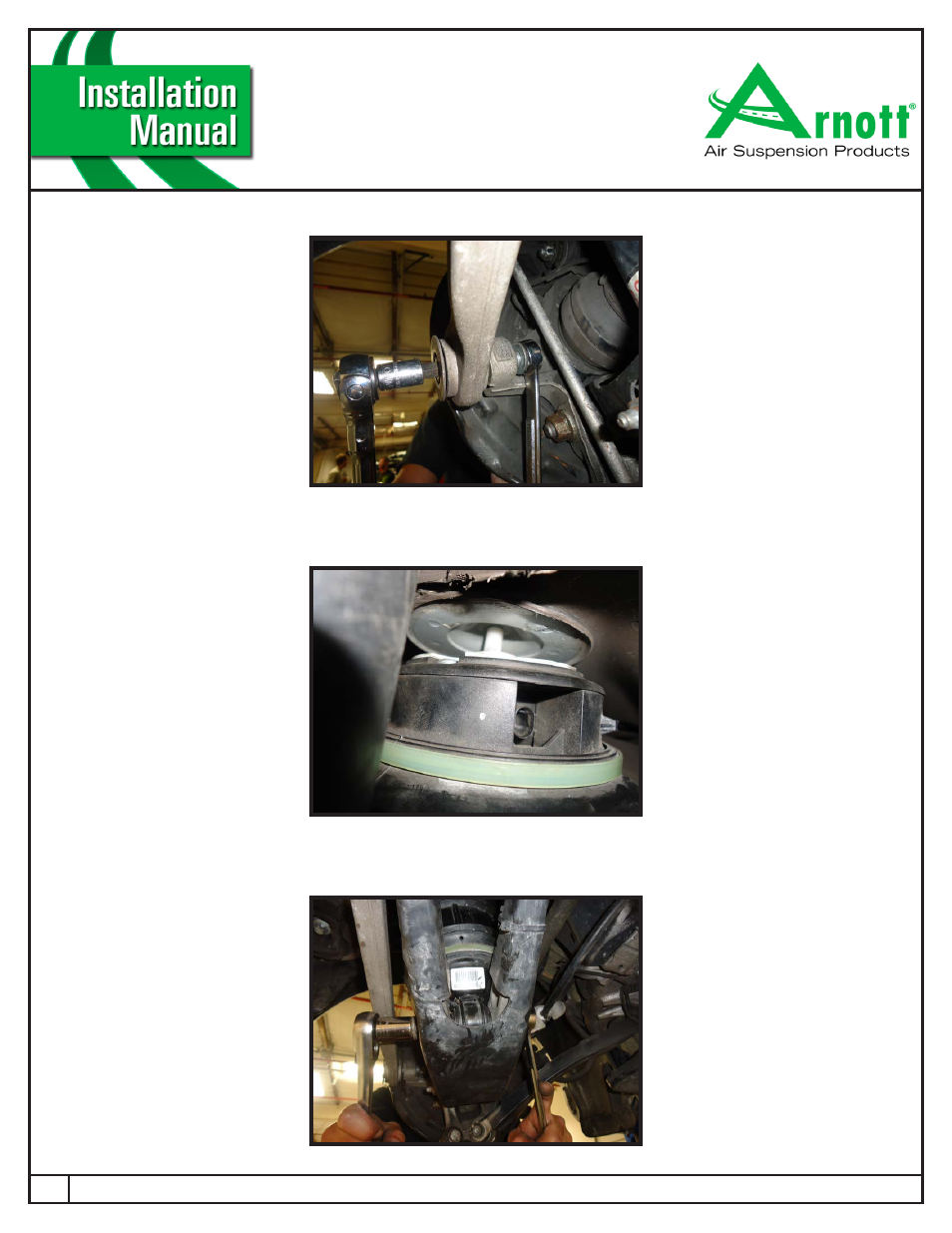

FIGURE 5
8.
DISLOCATE THE AIR SPRING’S TOP MOUNT FROM THE VEHICLE. (FIGURE 6)
9.
LOOSEN AND REMOVE THE AIR SPRING’S LOWER MOUNTING NUT AND BOLT. (FIGURE 7)
7.
LOOSEN AND REMOVE THE REAR CONTROL ARM NUT AND BOLT. (FIGURE 5)
FIGURE 7
FIGURE 6
