ARNOTT REMANUFACTURED
FRONT RIGHT ABC STRUT FOR
2002-2006
MERCEDES-BENZ S-CLASS (AMG
)
2002-2006
MERCEDES-BENZ CL-CLASS (AMG
)
5.

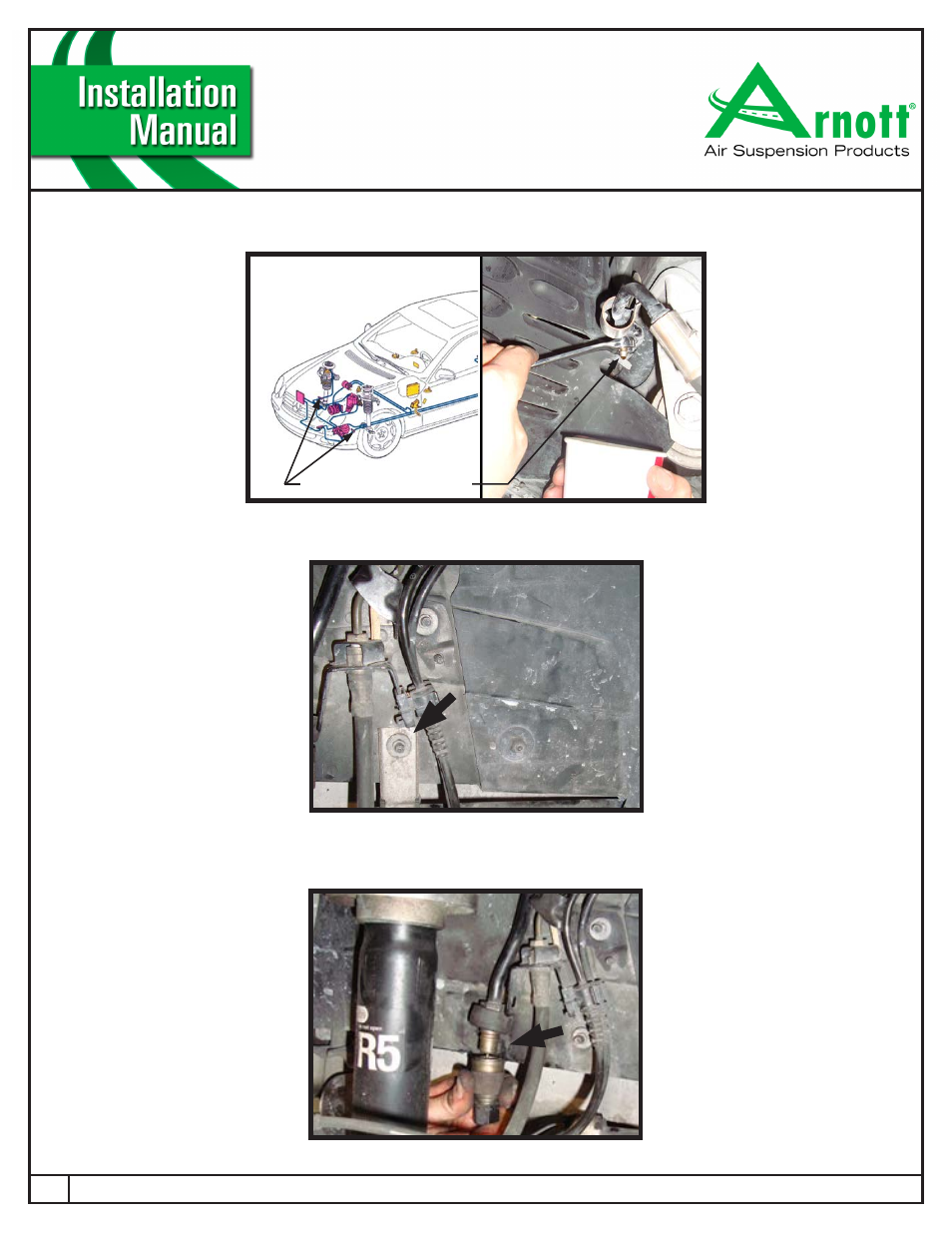

BLEED OFF HYDRAULIC PRESSURE. OPEN BLEED SCREW CAREFULLY SO THAT THE HYDRAULIC FLUID CAN
DRAIN OUT SLOWLY TO PREVENT THE STRUT FROM COLLAPSING TOO RAPIDLY. (FIGURE B)
6.
DISCONNECT THE BRACKET HOLDING HYDRAULIC LINE TO THE FRAME. (FIGURE C)
7.
DISCONNECT THE HYDRAULIC LINE QUICK-RELEASE COUPLING FROM THE SHOCK (ENSURE THAT NO DIRT
ENTERS THE OPENED QUICK-RELEASE FITTING). (FIGURE D)
