Air Suspension Front Coil Spring LINCOLN Continental 1984-1987 User Manual
Page 6

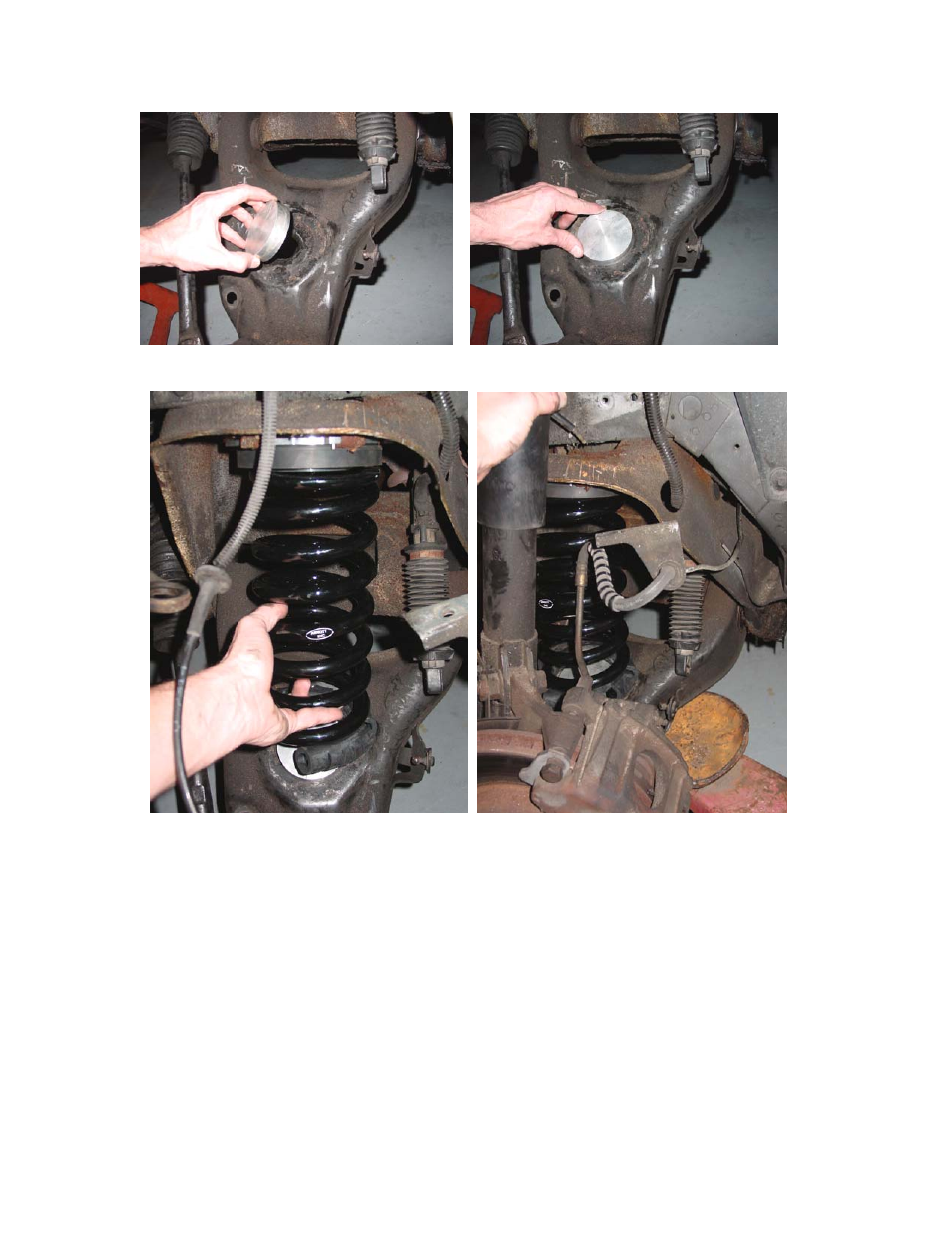

17. Bolt lower aluminum spring mount on to lower control arm.
18. Install front coil spring.
19. Compress the strut, and jack up on
(Rotate spring so “Arnott Inc.” logo the lower control arm.
MAKE
faces the wheel.) SURE THE COIL SPRING IS
LOCKED IN PLACE!!
20. Replace the 3 nuts on the top strut mount. (Refer to step 12)
21. Replace sway bar link (Refer to steps 10 & 11)
22. Bolt brake line back to the frame of the vehicle. (Refer to step 8)
23. Hook ABS sensor cable back on. (Refer to step 9)
24. Hook height sensor back up. (Refer to step 7B)
25. Replace wheel and lower suspension.
