Air Suspension C-2168 REV 4 User Manual
Page 4

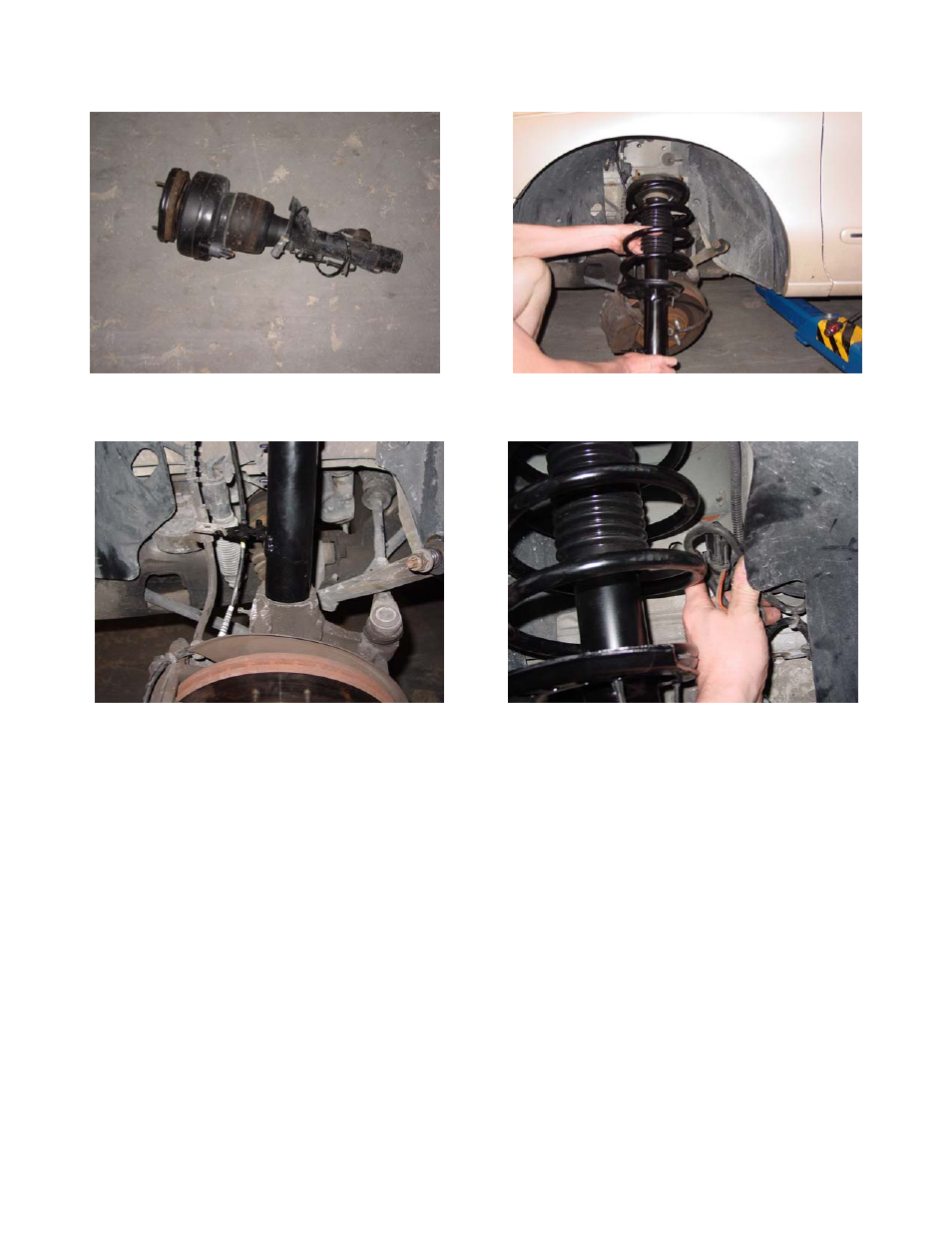

14. Carefully remove the old air spring/ shock 15. Install new coil spring/ strut and three top
assembly from vehicle. top mount-to-shock nuts. Do not tighten nuts.
16. Install knuckle pinch bolt and nut. 17. Tie back nylon tubing and electrical plug.
(Tighten to 73-97 lb-ft).
18. Install stabilizer bar link and tighten nut to 57-75 lb-ft. (Reverse steps #11 and 12)
19. Install brake line to the mounting bracket. (Reverse step # 7)
19. Install ABS cable relief back to strut mounting bracket. (Reverse step # 8)
20. Snap height sensor back to its lower ball stud. (Reverse step # 9)
21. Replace wheel and lower suspension.
