8. INSTALLATION
WARNING!
Refer to the Safety chapters.
Before the installation
Before the installation of the appliance,
record the information below from the
rating plate. The rating plate is on the
bottom of the appliance casing.
• Model ...........................
• PNC .............................
• Serial number ....................
8.1 Built-in appliances
• Only use the built-in appliances after
you assemble the appliance into cor-
rect built-in units and work surfaces
that align to the standards.
8.2 Connection cable
• The appliance is supplied with the
connection cable.
• Replace the damaged mains cable
with a special cable (type H05BB-F
Tmax 90°C; or higher). Speak to your
local Service Centre.
8.3 To attach the seal to the
rabbet
• Clean the rabbet in the work surface.
• Bond the seal stripe supplied on the
upper surface of the rabbet along the
edges of the cut out section.
• Cut the seal stripe into four pieces in
relation to the length of the edges of
the rabbet.
• For the four corners of the rabbet the
ends of the seal stripes must be cut in-
to mitres. Do not bond the ends over
one another.
• Bond the seal stripe flush into the cor-
ner of the rabbet. Make sure that no
silicon compound can get below the
glass ceramic when grouting.
• Do not extend the tapes.

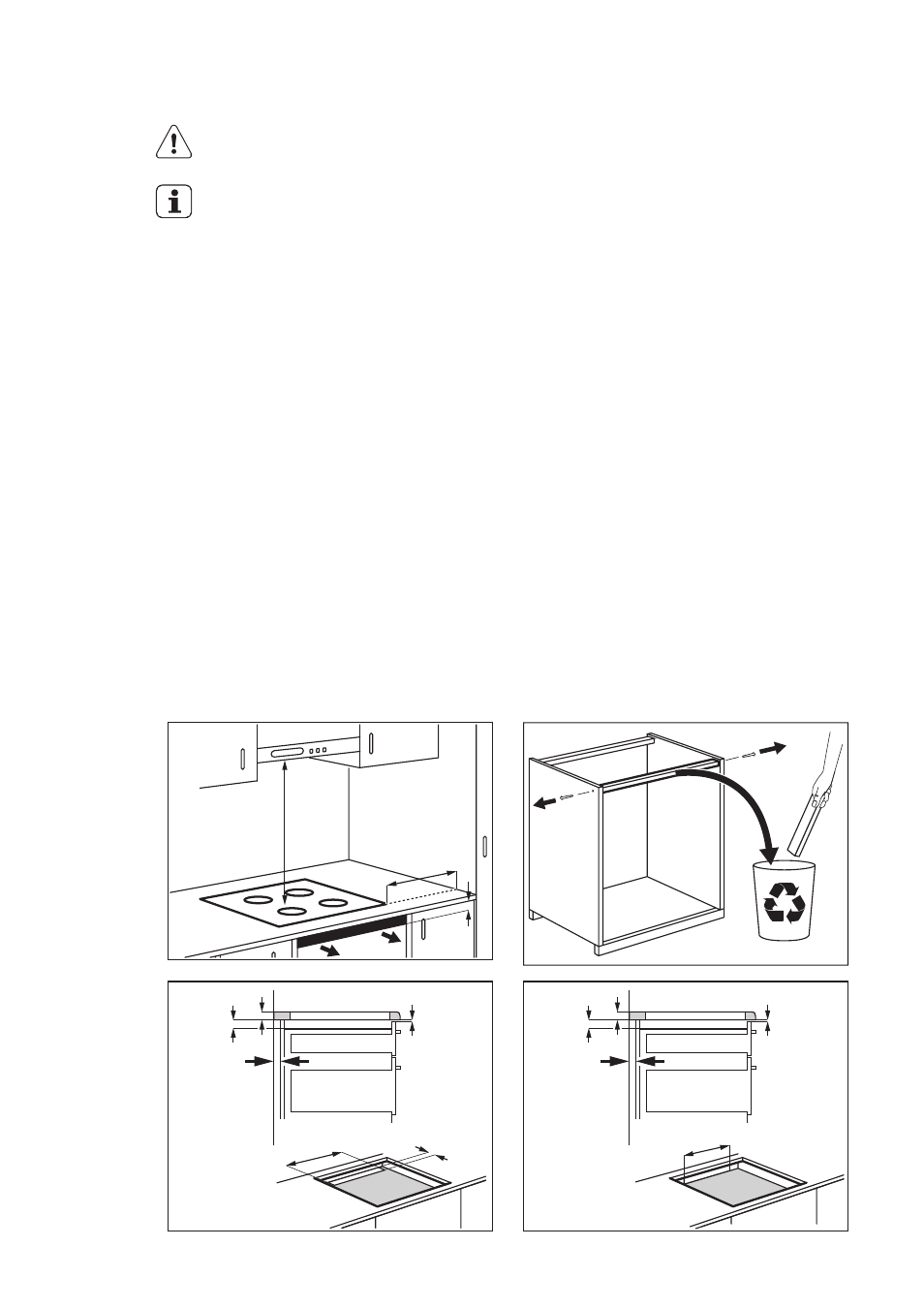

8.4 Assembly
min.
50mm
min.
500mm
min.
2mm
< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
