Compressor Removal:

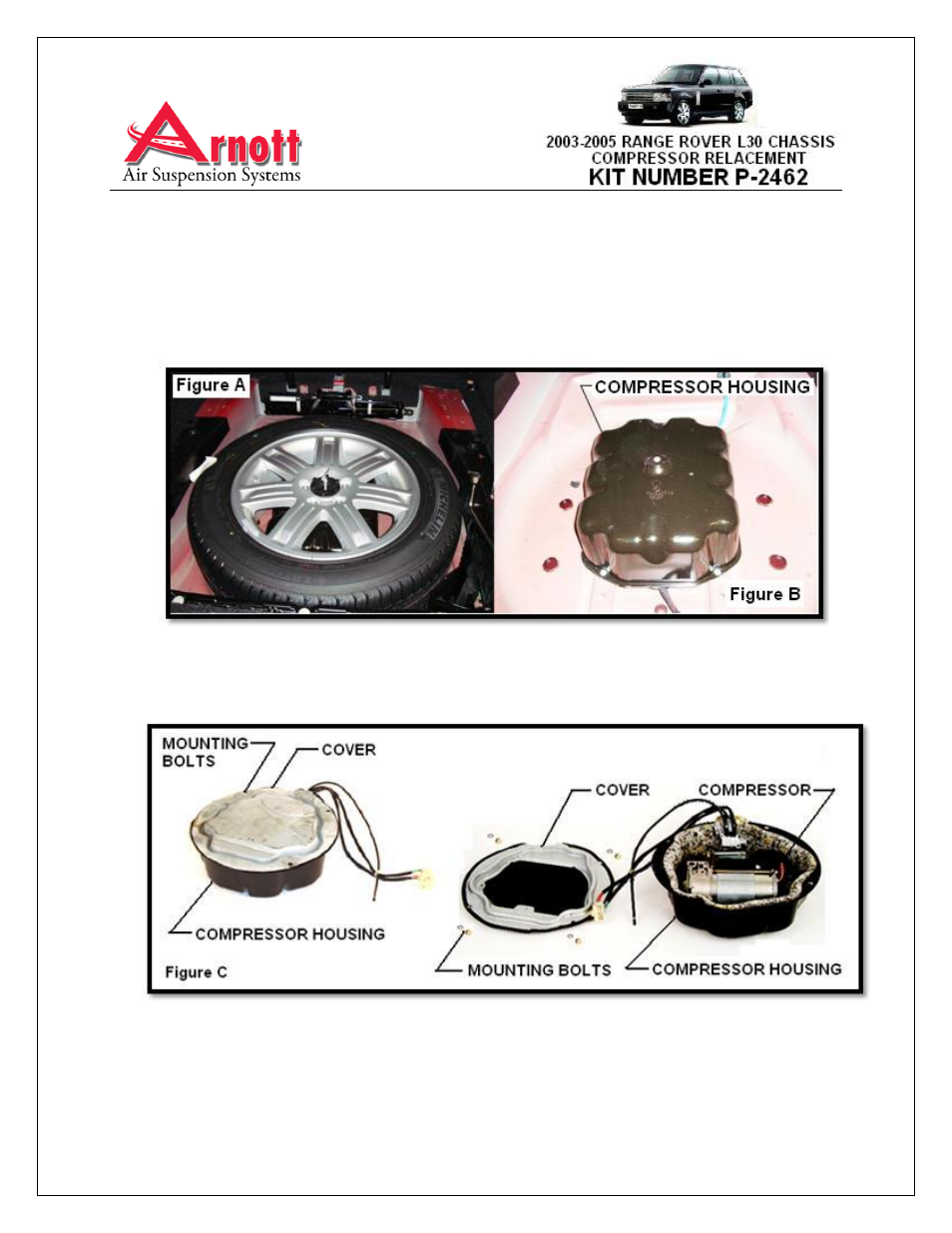

1. Remove spare tire for access to compressor housing (Figure A).
2. Disconnect air tube and electrical connector from compressor to vehicle. Remove
four (4) bolts holding compressor housing to vehicle (bolts also hold cover and
housing together) (figure B).
3. Remove cover from housing to expose the compressor (Cover is held on with the
same mounting bolts that hold the compressor housing to the vehicle) (Figure C).
