2 REV 4 11/11/2013 AS-2308
AS- 2308
ARNOTT REMANUFACTURED
FRONT LEFT AIR STRUT
FOR 2003-2012 LAND ROVER RANGE ROVER
(EXC.SUPERCHARGED)
GENERAL INFORMATION:
Reading this manual signifies your agreement to the terms of the general release, waiver of liability, and hold harmless agreement,
the full text of which is available at www.arnottinc.com.
• Not to be stored below 5
o
F (-15
o
C) and above 122
o
F (50
o
C).
• Avoid damage to air lines and cables.
• Removal and installation is only to be performed by fully qualified personnel.
• Use car manufacturer’s diagnostic software.
CAUTION: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified
in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to
disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for
additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath
the vehicle if it is not adequately supported, as serious injuries and death can occur.
1. SET STEERING TO STRAIGHT AHEAD.
2. RAISE VEHICLE.
3. REMOVE FRONT WHEEL.

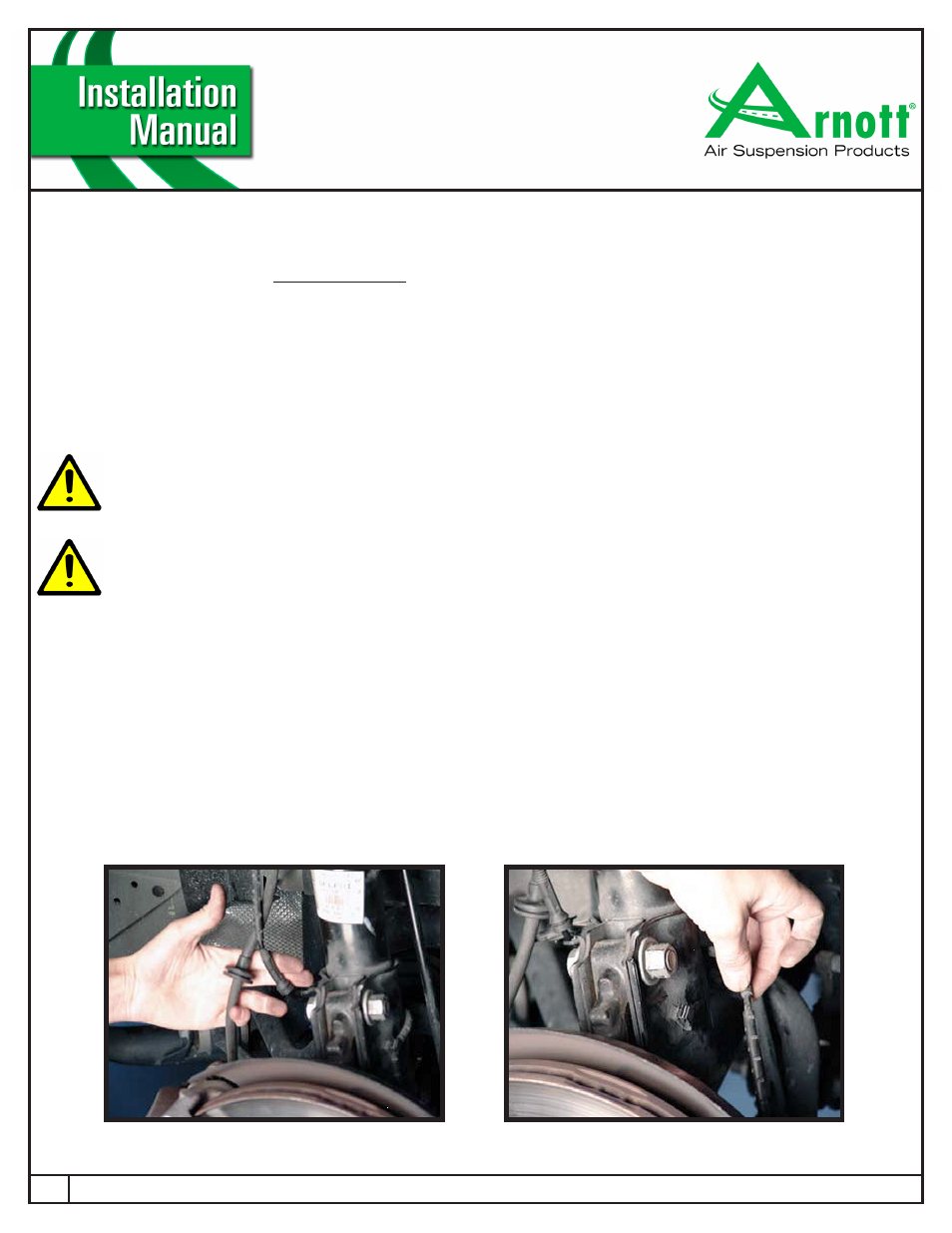

4. NEXT, REMOVE THE BRAKE HOSE AND ABS SENSOR WIRE FROM THE RETENTION BRACKET ON THE STRUT.
(FIGURE A)
ALSO, REMOVE THE SENSOR FROM THE SMALL PLASTIC CLIP AT THE BOTTOM OF THE SHOCK. (FIGURE B)
AIR STRUT REMOVAL
FIGURE A FIGURE B
