Air Suspension A-2202 REV 2 User Manual
Page 3
3
A-
2202
ARNOTT REAR AIR SPRING
FOR
1998-2004
LAND ROVER DISCOVERY II
A-2202
REV 2
01/17/2014

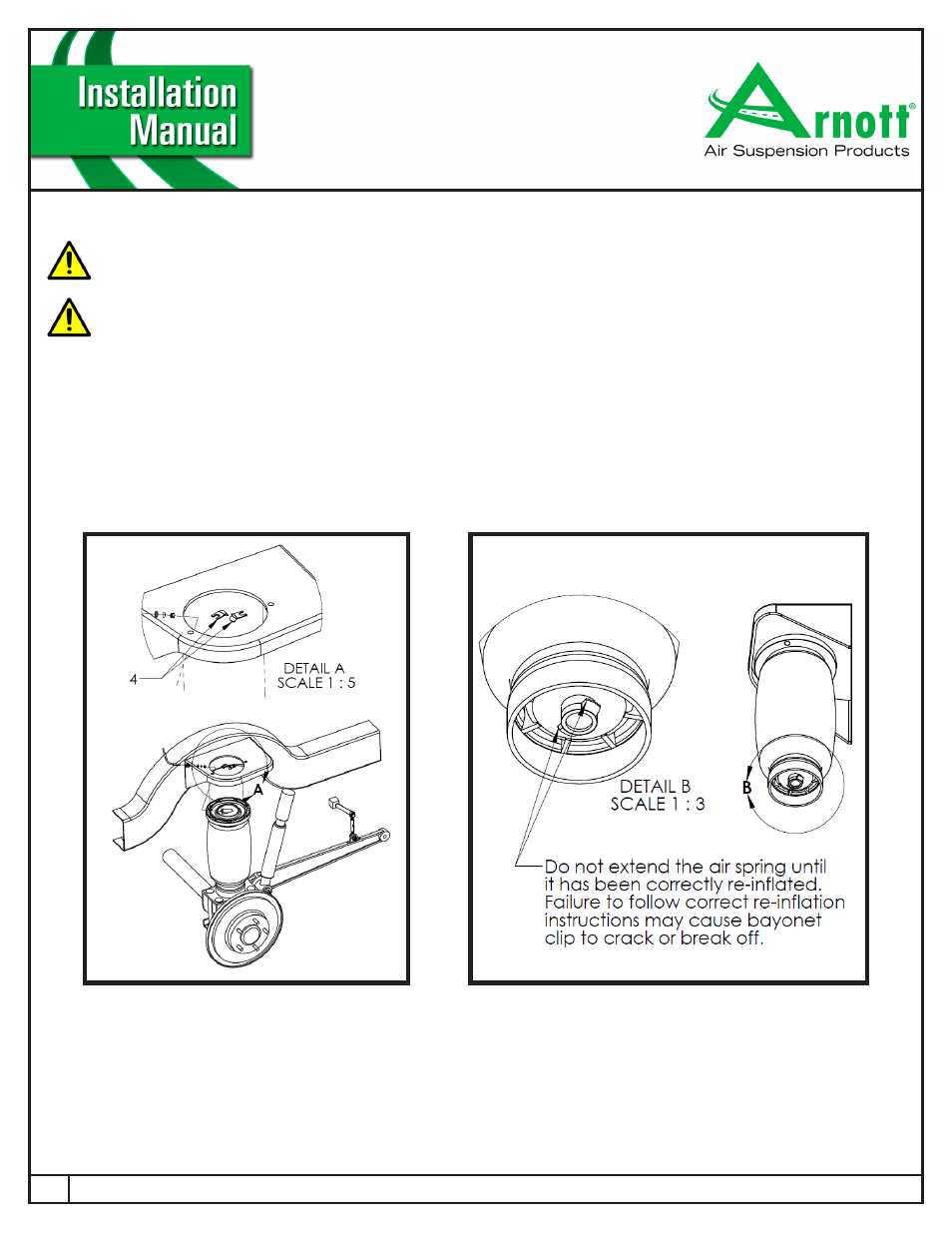

AIR SPRING INSTALLATION
1.
INSTALLATION IS IN THE REVERSE ORDER OF AIR SPRING REMOVAL.
2.
INSTALL THE NEW AIR SPRING ONTO THE AXLE AND ROTATE 90
o
TO FULLY ENGAGE THE LOWER BAYONET
FITTING.
3.
REINSTALL REAR WHEEL.
4.
FIT THE CLIPS TO SECURE THE TOP OF THE AIR SPRING TO CHASSIS.
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air spring. Doing so may cause damage and/or void warranty. Remove the white
shipping pin from the new air fitting and insert the air line until fully seated.
