Air Suspension C-2529 User Manual
Page 2
Page 2 of 4
Rev A
NOTE:
In the information center, locate and turn off the air suspension.
WARNING: The air suspension system is under pressure (up to 10 bar, or
150 lbf/in ). Do not allow dirt or grease to enter the system. Always wear
standard protective hand, ear, and eye protection when servicing the air
suspension system.

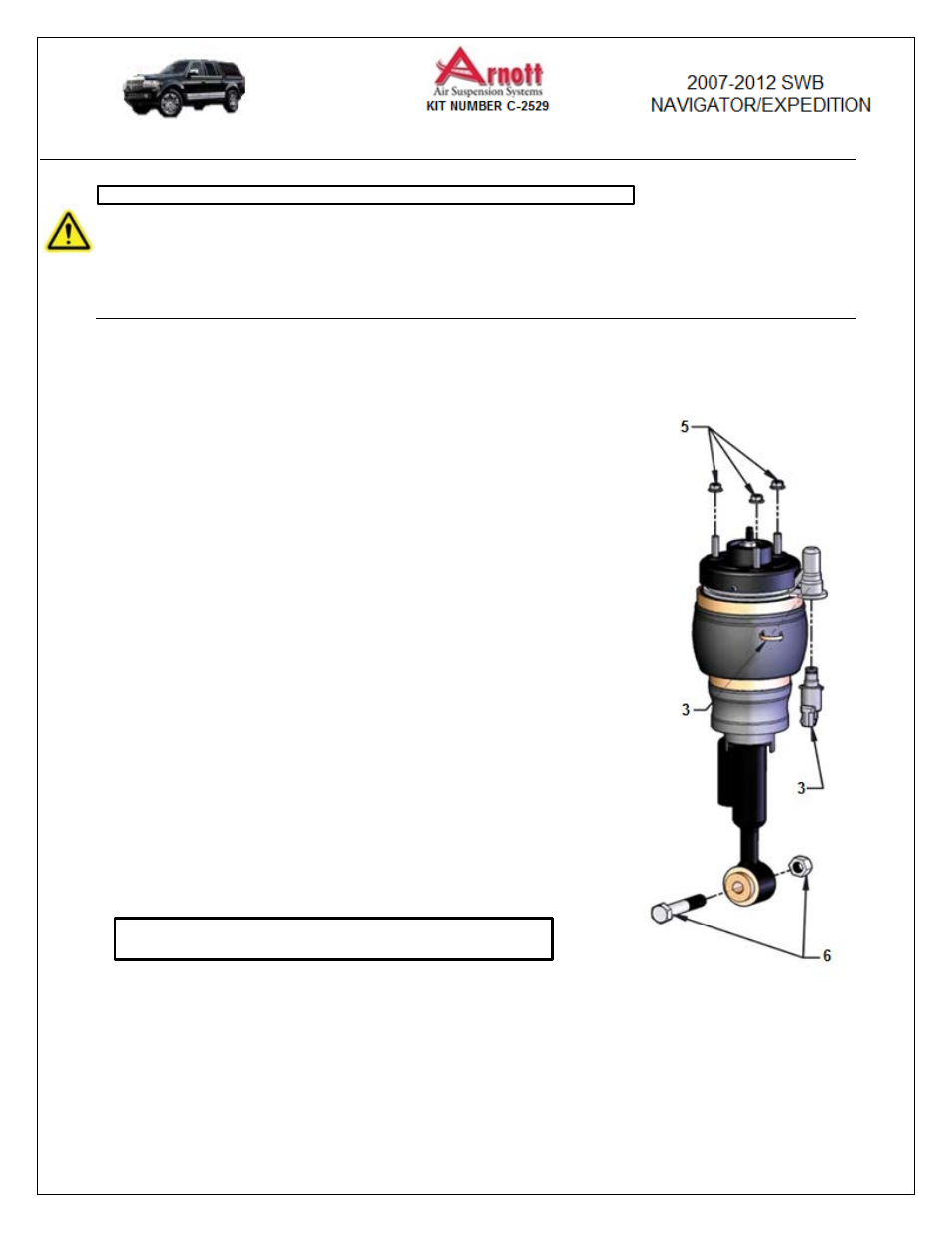

REMOVAL
1. Safety raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Discharge the remaining air from the strut by carefully
removing the solenoid clip. Then carefully turn solenoid to
release the air pressure.
4. Loosen and remove the tie rod to knuckle ball joint.
5. Loosen and remove the strut to body nuts at the top.
6. Remove the shock mount to lower control arm bolt and nut.
7. With all fastners removed, pull the strut loose from its mounting position.
Reinstall into vehicle in the reverse order of removal.
NOTE: UNPLUG AND REMOVE THE AIR SPRING SOLENOIDS.
LEAVE THE AIR SUSPENSION TURNED OFF.
