Air Suspension A-2730 REV 1 User Manual
Page 5
5
A-
2730
ARNOTT FRONT AIR SPRING
FOR
1997-2004
AUDI A
6 (
C
5)
FOR
1999-2005
AUDI A
6
ALLROAD QUATTRO
(
C
5)
REV 1
12/11/2013
A-2730
5.

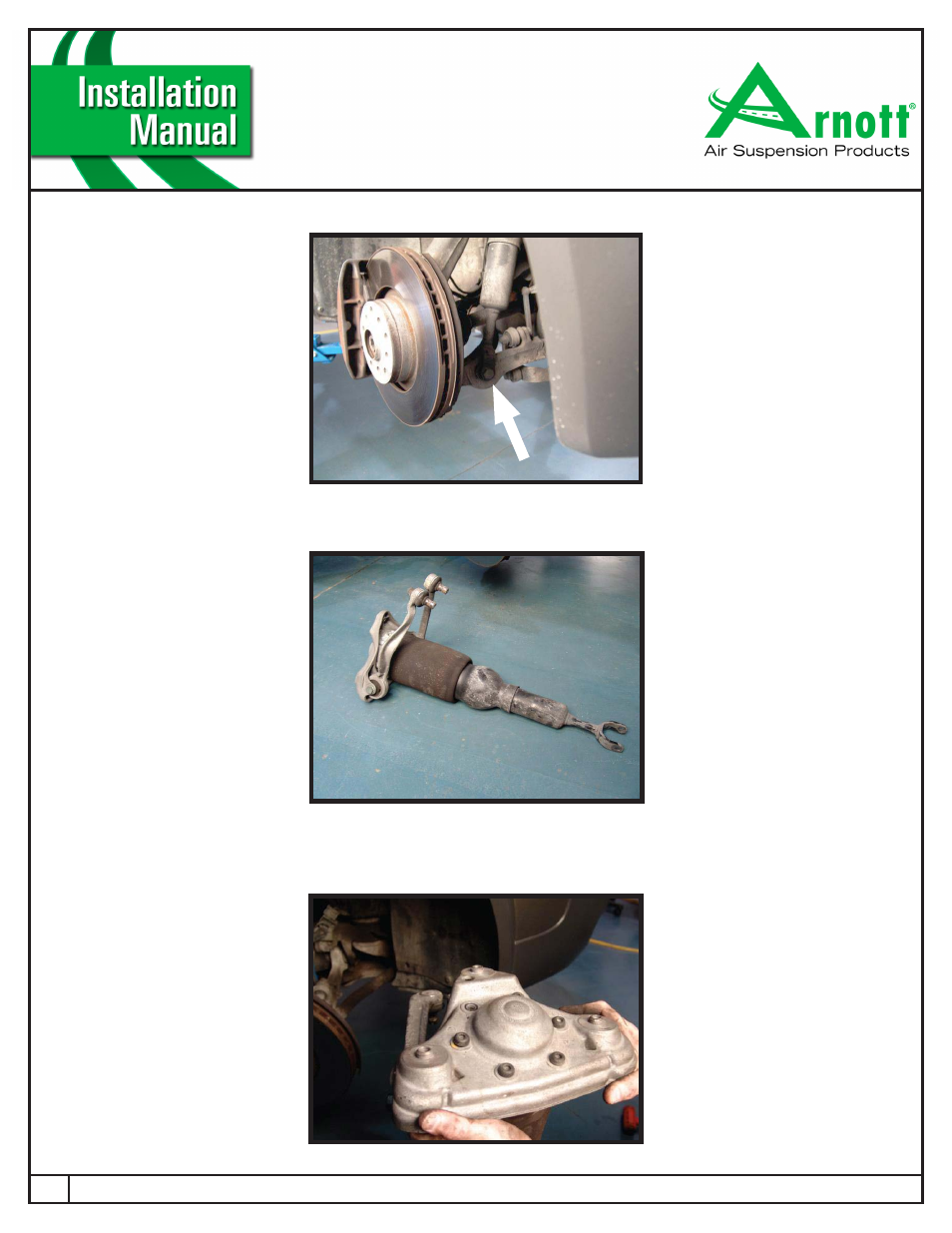

LOOSEN AND REMOVE THE LOWER SHOCK BOLT. (FIGURE E)
6.
CAREFULLY REMOVE THE AIR STRUT ASSEMBLY FROM THE VEHICLE. (FIGURE F)
7.
USING A 12 POINT TORX BIT, REMOVE THE 6 UPPER SHOCK MOUNTING BOLTS. REMOVE THE TOP CAST
ALUMINUM SHOCK CAP. (FIGURE G)
FIGURE E
FIGURE F
FIGURE G
