• Cut off the mains cable and discard it.

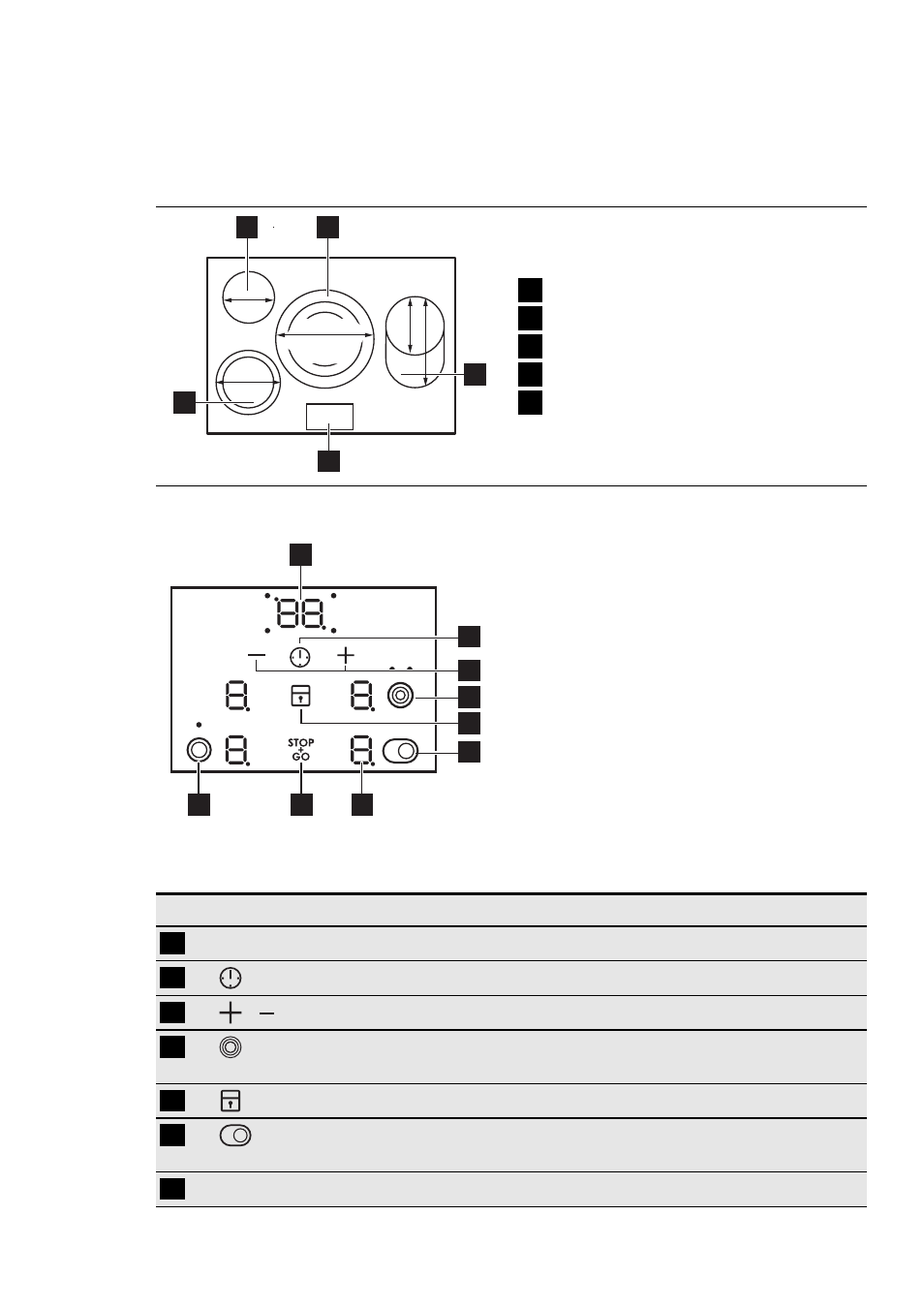

3. PRODUCT DESCRIPTION
1
145 mm
170 mm 265 mm
180 mm
120 mm
270 mm
210 mm
145 mm
4
3
5
2
1
Cooking zone
2
Cooking zone
3
Cooking zone
4
Control panel
5
Cooking zone
3.1 Control panel layout
1
2
4
6
3
5
7
8
9
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
sensor field
function
1
The timer display
To show the time in minutes.
2
To select a cooking zone.
3
/
To increase or decrease the time.
4
To activate and deactivate the outer
rings.
5
To lock / unlock the control panel.
6
To activate and deactivate the outer
ring.
7
A heat setting display
To show the heat setting.
