22

2

Knowing the Parts

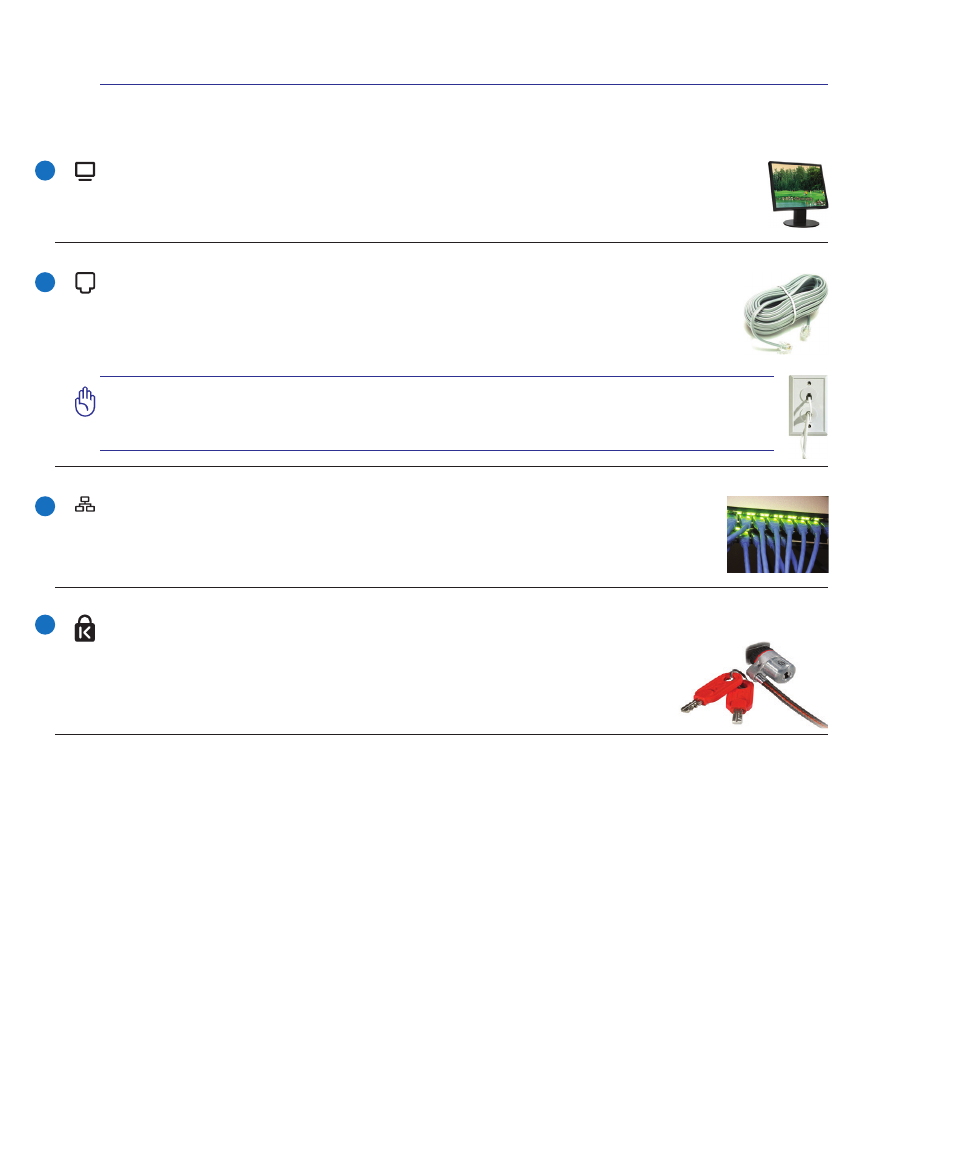

Rear Side (cont.)

Modem Port

The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports

a standard telephone cable. The internal modem supports up to 56K V.90 transfers. The

built-in connector allows convenient use without additional adapters.

IMPORTANT! The built-in modem does not support the voltage used in digi-

tal phone systems. Do not connect the modem port to a digital phone system

or else damage will occur to the Notebook PC.

LAN Port

The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a

standard Ethernet cable for connection to a local network. The built-in connector allows

convenient use without additional adapters.

Kensington

®

Lock Port

The Kensington

®

lock port allows the Notebook PC to be secured using Kensington

®

com-

patible Notebook PC security products. These security products usually include a metal

cable and lock that prevent the Notebook PC to be removed from a fixed object.

Some may also include a motion detector to sound an alarm when moved.

6

7

8

Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor

or projector to allow viewing on a larger external display.
