1 3 . 1 3 . 1 3 . 1 3 . 1 3 . T P M c o n n e c t o r ( 2 0 - 1 p i n T P M ) T P M c o n n e c t o r ( 2 0 - 1 p i n T P M ) T P M c o n n e c t o r ( 2 0 - 1 p i n T P M ) T P M c o n n e c t o r ( 2 0 - 1 p i n T P M ) T P M c o n n e c t o r ( 2 0 - 1 p i n T P M )
This connector supports a Trusted Platform Module (TPM) system,
which can securely store keys, digital certificates, passwords, and
data. A TPM system also helps enhance network security, protects
digital identities, and ensures platform integrity.
The TPM module is purchased separately.

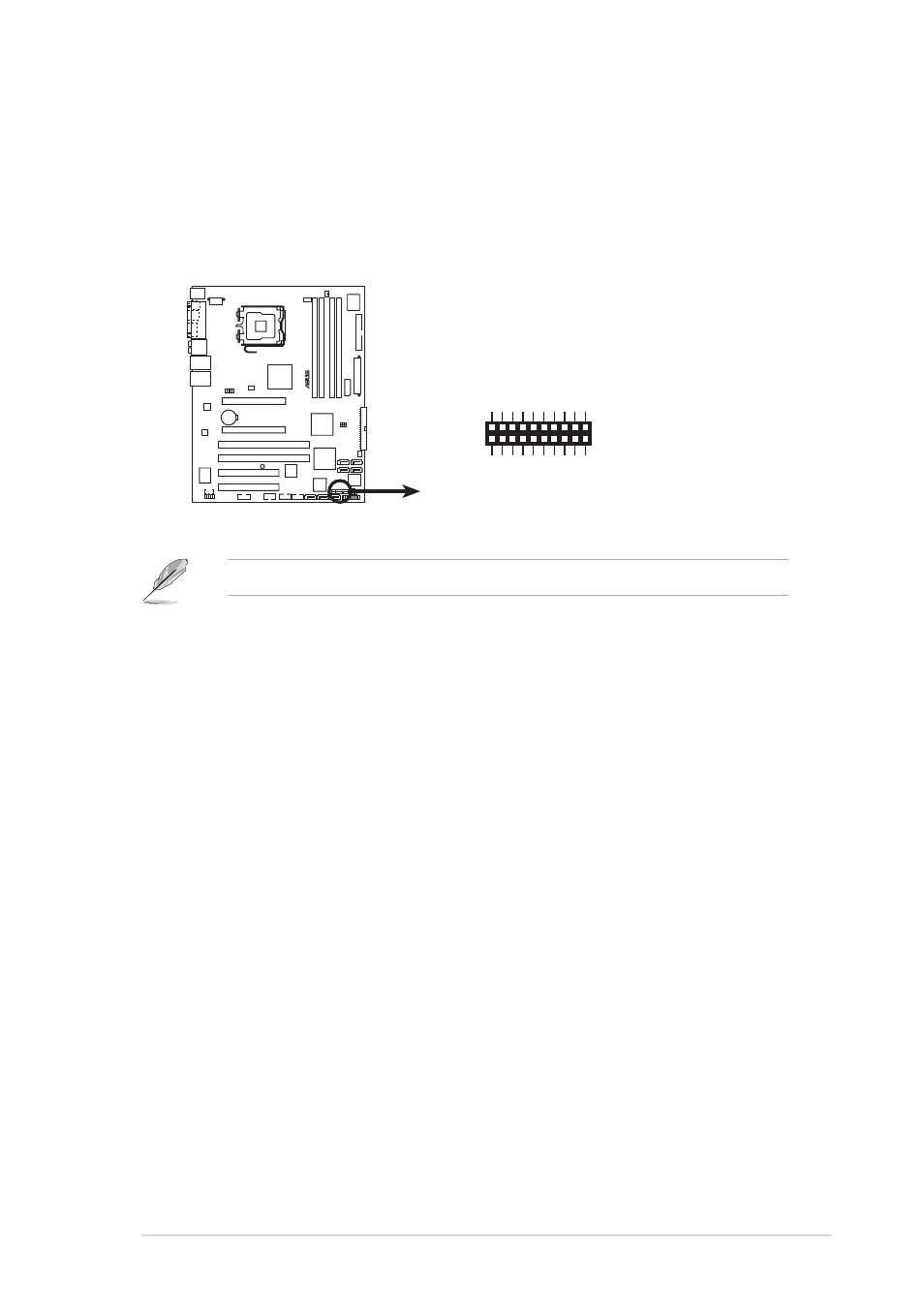

P5WDG2-WS PRO
®
P5WDG2-WS PRO TPM connector
CK_33M_TPM LFRAMEn LRESETn LAD3 +3.3V LAD0 +3.3V X GND LPC_PD#
GND
smb_clk_main
smb_data_main
LAD2 LAD1 GND
X
SERIRQ
X X
TPM
1
