English

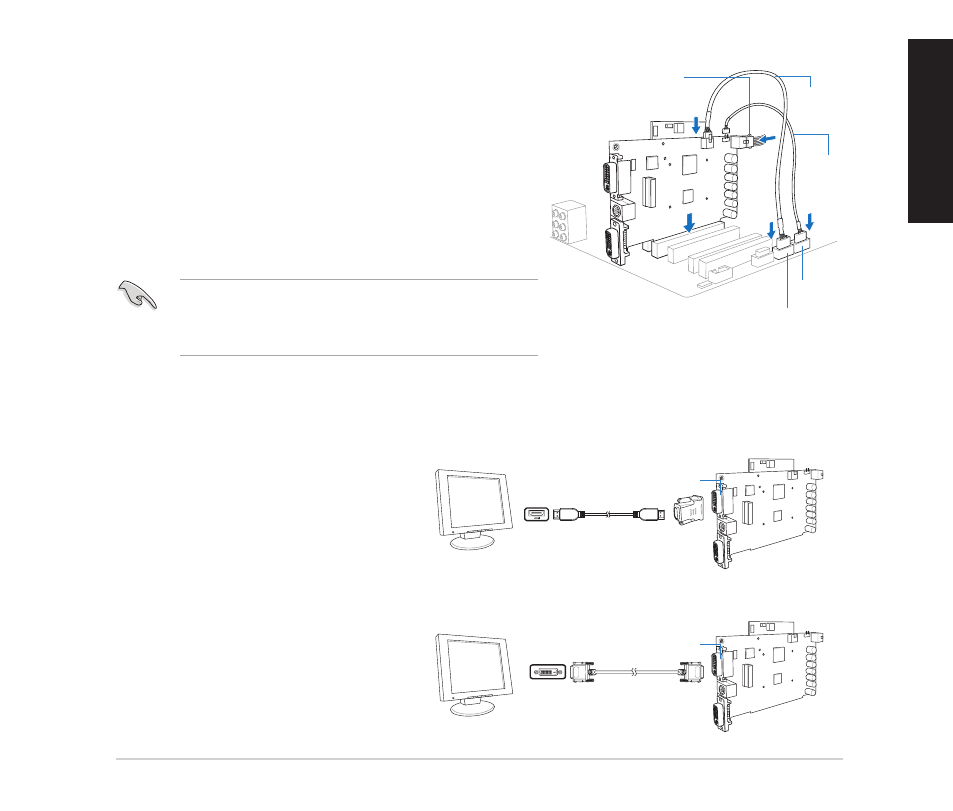

3 Quick installation guide
USB cable
ATX power
cable
USB connector
3.1 Connecting to an HDMI monitor
1. Connect the bundled DVI-to-HDMI adapter
to the DVI-D out port of the Splendid HD
graphics card.
. Using an HDMI cable, connect the DVI-to-
HDMI adapter to an HDMI monitor.
3. Monitor connection
DVI-D out
3.2 Connecting to a DVI monitor
Using a DVI cable, connect the DVI-D out port of
the Splendid HD graphics card to a DVI monitor. DVI-D out
Connecting cables:
1.
Connect one end of the USB cable to the USB port of the
card and connect the other end to a USB connector on
your motherboard.
. Connect one end of the bundled S/PDIF cable to the
S/PDIF In connector of the card and connect the other end
to a S/PDIF Out connector on your motherboard. (only for
some models)
3. Connect a 6-pin ATX power cable to the ATX power
connector on the card.
The Splendid HD graphics card requires additional
power to work. Ensure that you connect the ATX power
connector to the card to provide sufficient power.
S/PDIF cable
S/PDIF connector
