25 mm HIGH ENERGY SOFT
DOME TWEETER SYSTEM
TW-20
Dear Customer,
Congratulations on your purchase of a RE AUDIO Loud-
speaker System. The TW-20 Tweeter System contains two
25 mm soft dome tweeter units that have been
precision-engineered to produce the highest quality
audio for your vehicle.
Some consideration before attempting the installa-
tion:
FOR MAXIMUM PERFORMANCE OF THIS RE AUDIO
PRODUCT, WE RECOMMEND YOU TO HAVE YOUR NEW
TW-20 TWEETER SYSTEM INSTALLED BY AN AUTHORIZED
RE AUDIO DEALER / INSTALLER!
PACKAGE CONTENTS
(2)
TW-20 Soft Dome Tweeters
(1)
Mounting Accessories Set
(2)
TPM-20 Tweeter Protection Modules
TECHNICAL DESIGN FEATURES
• 25 mm SOFT DOME TWEETER
• OPEN WEAVE SILK DOME DIAPHRAGM
• HEXATECH ALUMINUM VOICE COIL FORMER
• LOW-VISCOSITY FERRO-FLUID COOLING
• PURE COPPER VOICE COIL WIRE
• HIGHEST GRADE NEODYMIUM MAGNET
• LOW RESONANCE FREQUENCY (1500 Hz)
TWEETER MODEL
TW-20
Nominal Diameter
1” / 25 mm
Nominal Impedance
4 ohms
Frequency Response
1500 ~ 20,000 Hz ± 2 dB
Resonance Frequency
1500 Hz
Sensitivity
92
dB
Peak Power Handling
150 Watts*
RMS Power Handling
50 Watts*
Mounting Diameter
1-11/16” / 43 mm
Mounting Depth
15/16” / 24 mm
* When used with supplied TPM-1 modules.
LIMITED WARRANTY
RE AUDIO warrants this TW-20 soft dome tweeter set to
be free of defects in materials and workmanship for one
year from the data of purchase. This is contingent upon
being properly installed and approved by an Authorized
RE AUDIO dealer.
Abuse of this speaker system due to excessive amplifier
power, improper installation, amplifier clipping or
physical damage is not covered under warranty.

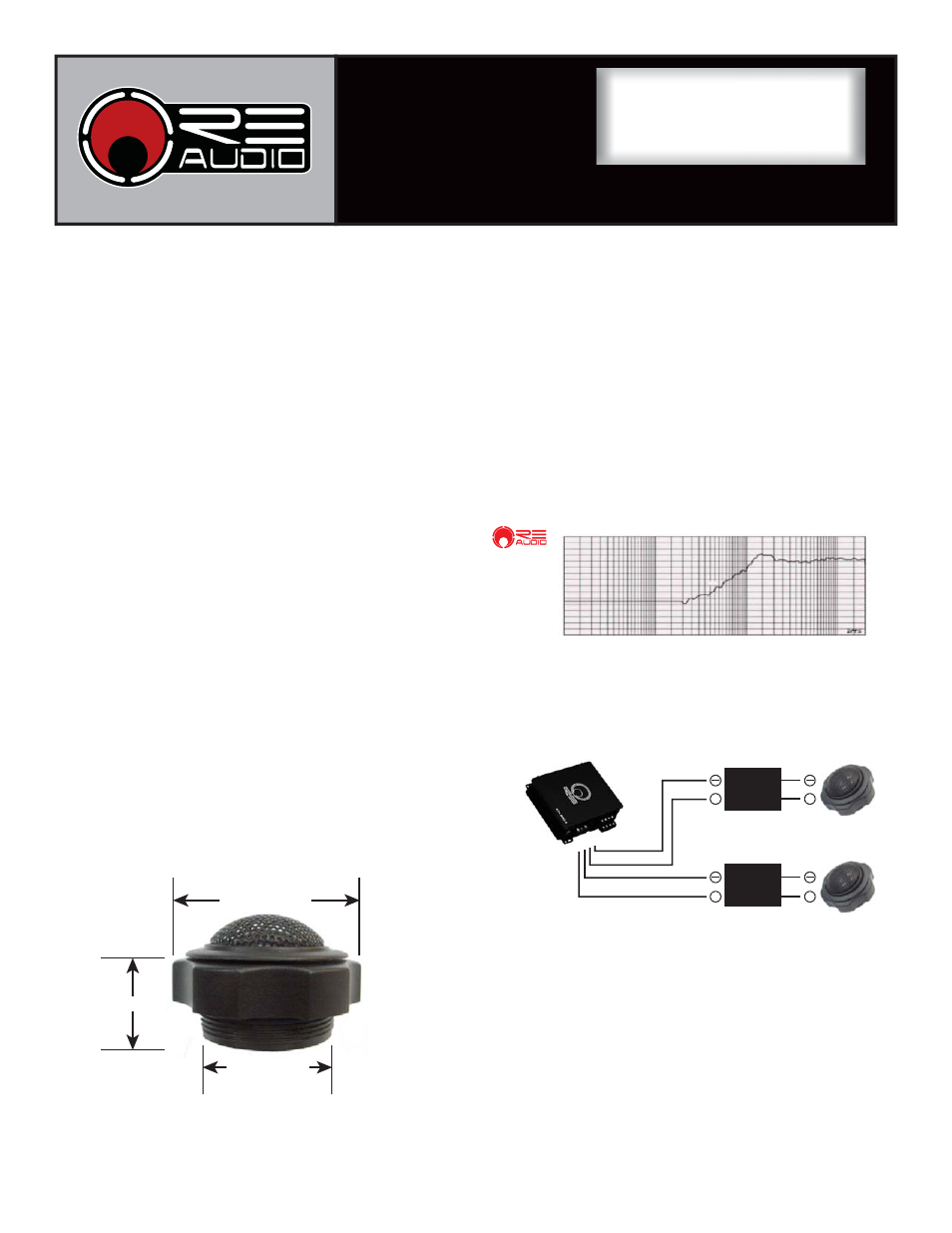

TW-20
30
10 Hz
20
50
100
200
500
1K
2K
5K
10K
20K
40
50
60
70
80
90
100
110
dB SPL
Actual
Response
Graph
RECOMMENDED WIRING DIAGRAM FOR TW-20 PAIR
AND FULL RANGE STEREO AMPLIFIER
FULL RANGE
STEREO AMPLIFIER
SPEAK
ER OUTPUT
+
+
+
+
RIGHT
LEFT
TPM-20
Pair of
TW-20
Tweeter
Protection
Module
SPEAK
ER OUTP
UT
15/16” / 24 mm
2-5/16” / 59 mm
1-11/16” / 43 mm
