Control elements

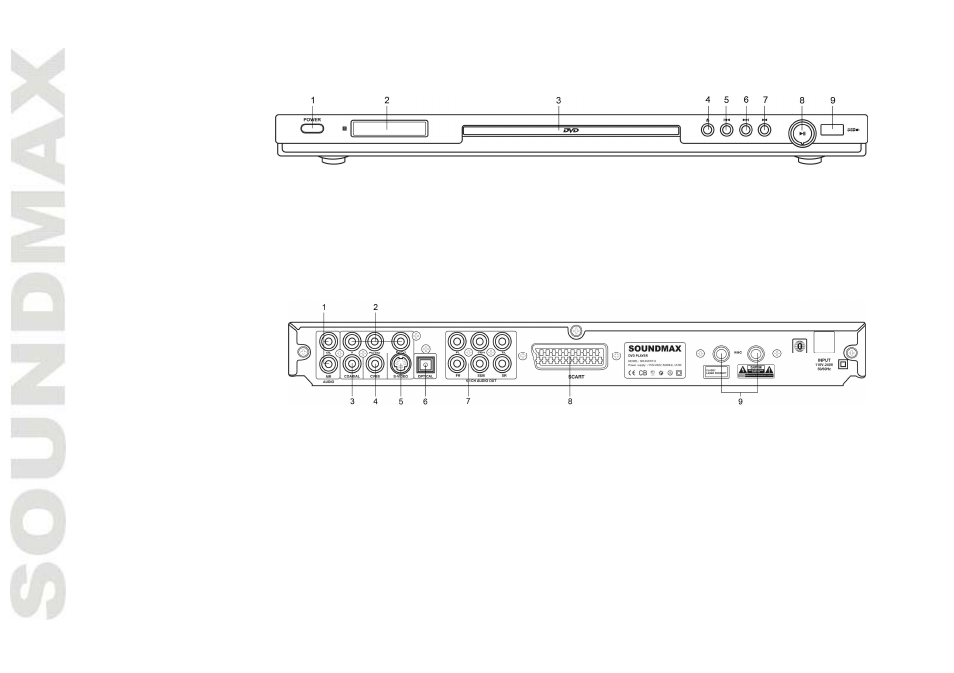

Front panel

1. POWER button

2. Display

3. Disc tray

4. OPEN/CLOSE button

5. PREVIOUS button

6. NEXT button

7. L/R/ST button

8. PLAY/PAUSE button

9. USB slot

Rear panel

1. Stereo audio output

2. Component video output

3. Coaxial output

4. Composite video output

5. S-Video output

6. Optical digital output

7. 5.1CH audio output

8. SCART connector

9. MIC jacks
