QTech Data Systems Q70 Base Station Modem User Manual
Page 3

Q70 – Quick Start Guide – v1.1 – December 2011
www.qtech.co.nz
Tel: 03 3663713
MODEM CONFIGURATION
DIP Switch Settings
Inside the Q70 modem case is a bank of 8 DIP switches.
To access the DIP switches, remove the two Phillips head screws holding the endplates to
the case. Either end can be removed.

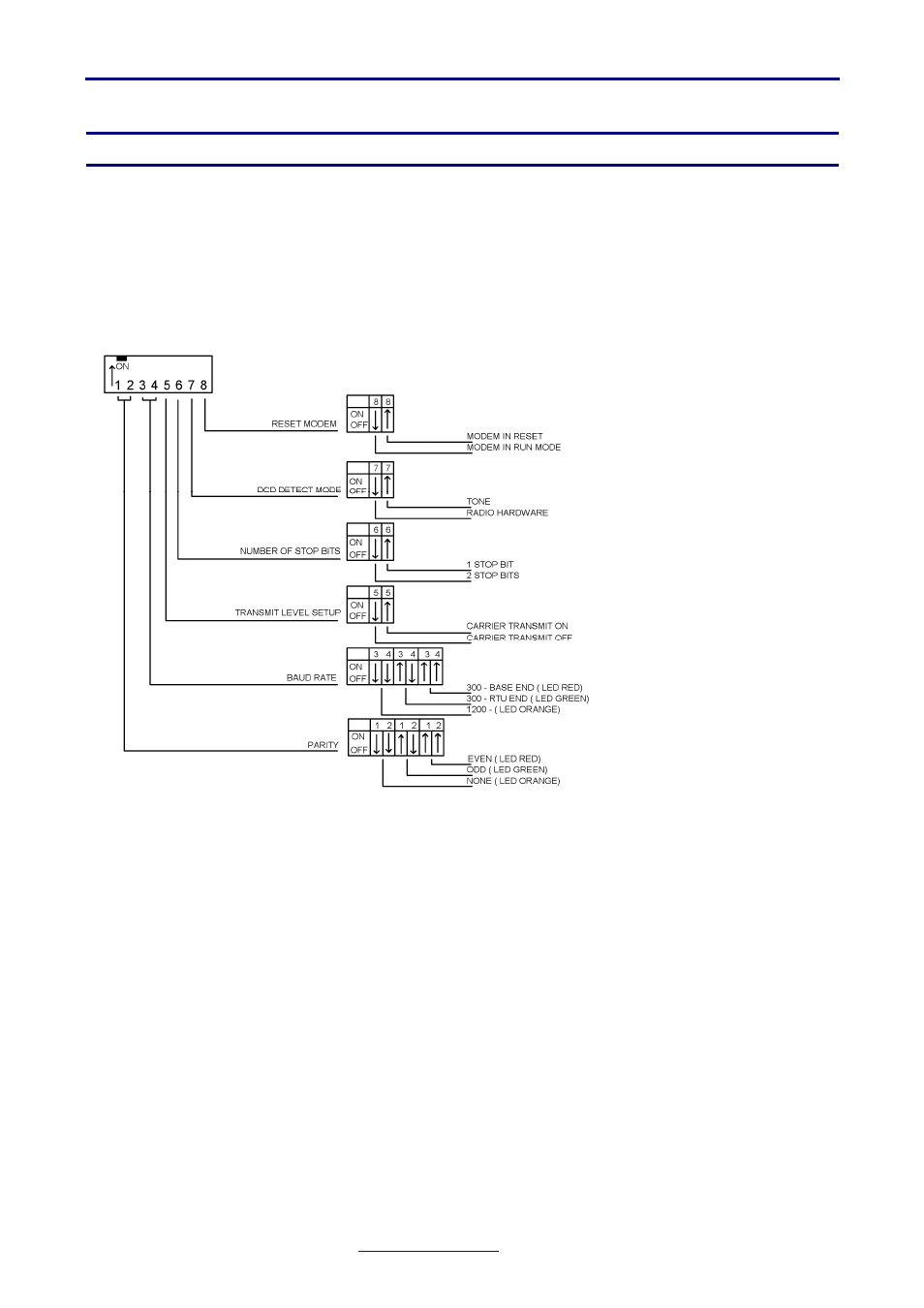

The function of the DIP switches is defined below:
Before applying power, set the DIP switches to the required position.
Setting the DIP switches is generally a one off task required before commissioning.
In normal operation the DIP switches do not need to be accessed.
Jumper Settings
Inside the Q70 modem case there are four PCB jumpers.
The function of these jumpers is defined below:
