Media-Tech 150M WIRELESS ROUTER- Universal wireless DSL router code: 590 User Manual

Page 3

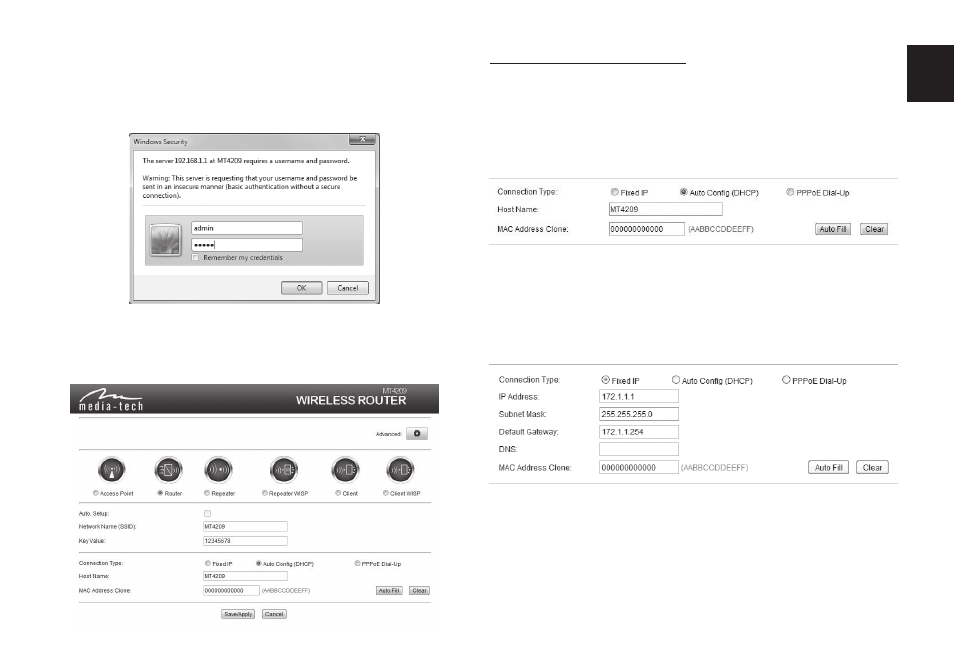

WAN interface setup

Method 1: Automatic obtain (Internet provider DHCP)
If you’re using the DHCP (auto config) connection, the

router will receive IP parameters from your ISP. Entering

any special parameters is not neccesary.

3. Launch web browser and enter default address

http://192.168.1.1, when password message box

appears enter default name “admin” and password

“admin”.

4. Router Management screen will appear (device is set

initially to Router mode). Set password for your net-

work (Key Value).

Method 2: Fixed IP (for semi-advanced users)
When Fixed IP connection will be marked, you’ll be

asked to enter static IP data such as local IP addres,

Subnet mask, Gateway and DNS.

Method 3: PPPoE Connection
You can initiate internet connection by connected

ADSL modem to the router when the option “PPPoE

Dial-up” will be marked. Enter User name and Password

provided by your ISP.
