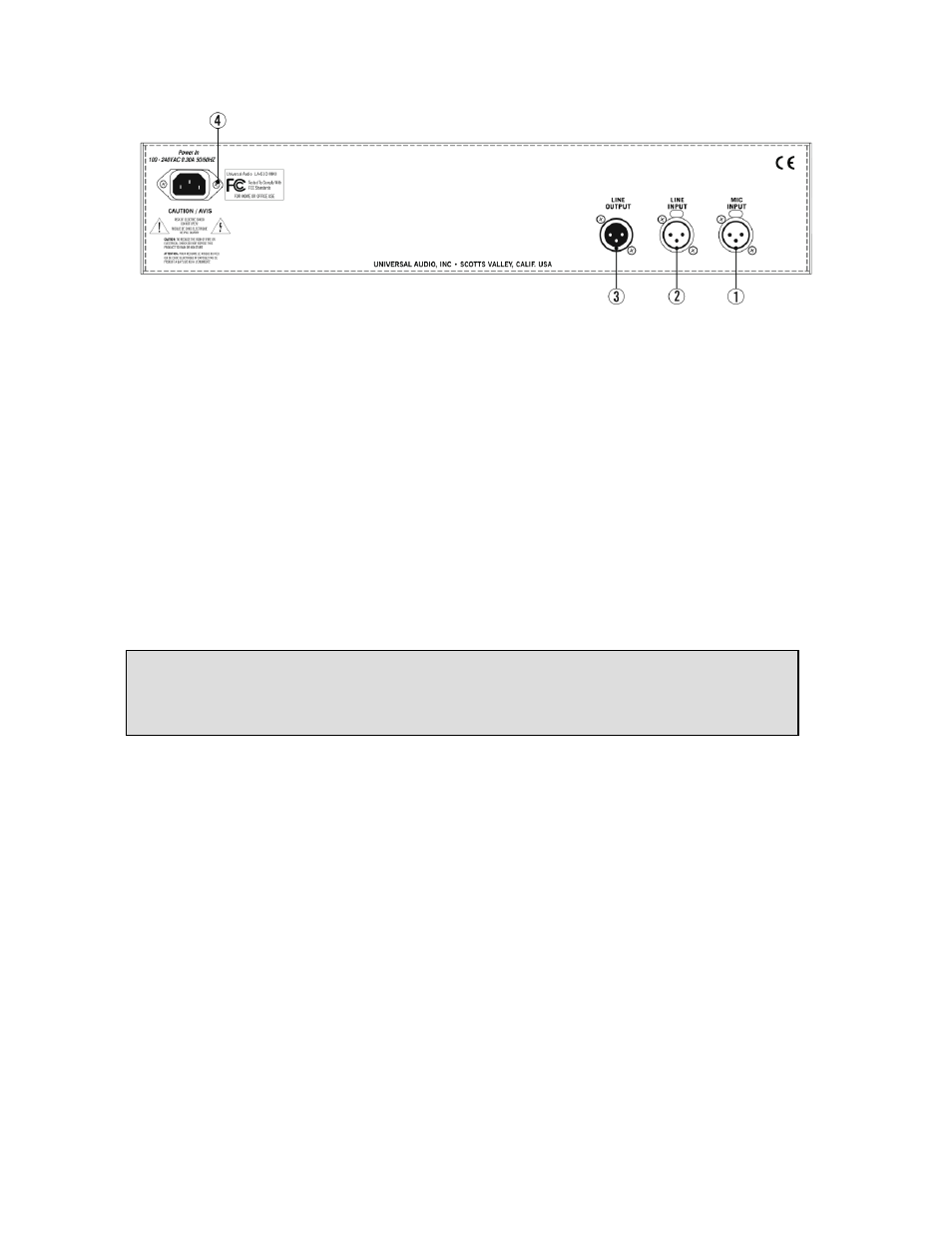

Rear Panel
__________________________________________________________
- 8 -
(1) LINE OUTPUT
- A balanced XLR connector carrying the line-level output signal of the LA-610. Note
that Pin 2 is positive when the front panel Polarity toggle switch is down (IN ø). Pin 3 is positive
when the front panel Polarity switch is up (OUT ø). (

see #4 on page 5)
(2) LINE INPUT
- Connect line-level input signal (coming from a device such as a mixer, DAW, tape
machine, or signal processor) to this balanced XLR connector. Pin 2 is wired positive (hot).
(3) MIC INPUT
- Connect your microphone to this standard XLR connector. Pin 2 is wired positive
(hot).
(4) AC Power Connector - Connect a standard, detachable IEC power cable (supplied) here. The LA-
610 can operate from 100V to 240 VAC / 50-60 Hz. The internal power supply is self-sensing and will
automatically work throughout this voltage range. (

see page 26 for more information)

Unlike the original LA-610, the LA-610 Mk II uses an internally switching power supply. The
unit may be used in virtually any part of the world with no need to worry about the incoming
voltage.
