5
Power
The 2-610 provides the user with a front panel power switch. It is recommended to power off the unit
when the 2-610 is not used for extended periods of time.
2-610 Rear Panel
The rear panel (figure 3) has two identical channels each with MIC INPUT, LINE INPUT, and LINE
OUTPUT XLR connectors. The center of the rear panel has an AC Power input with a fuse holder and a
voltage selector switch. These connectors and controls are discussed in the following sections.

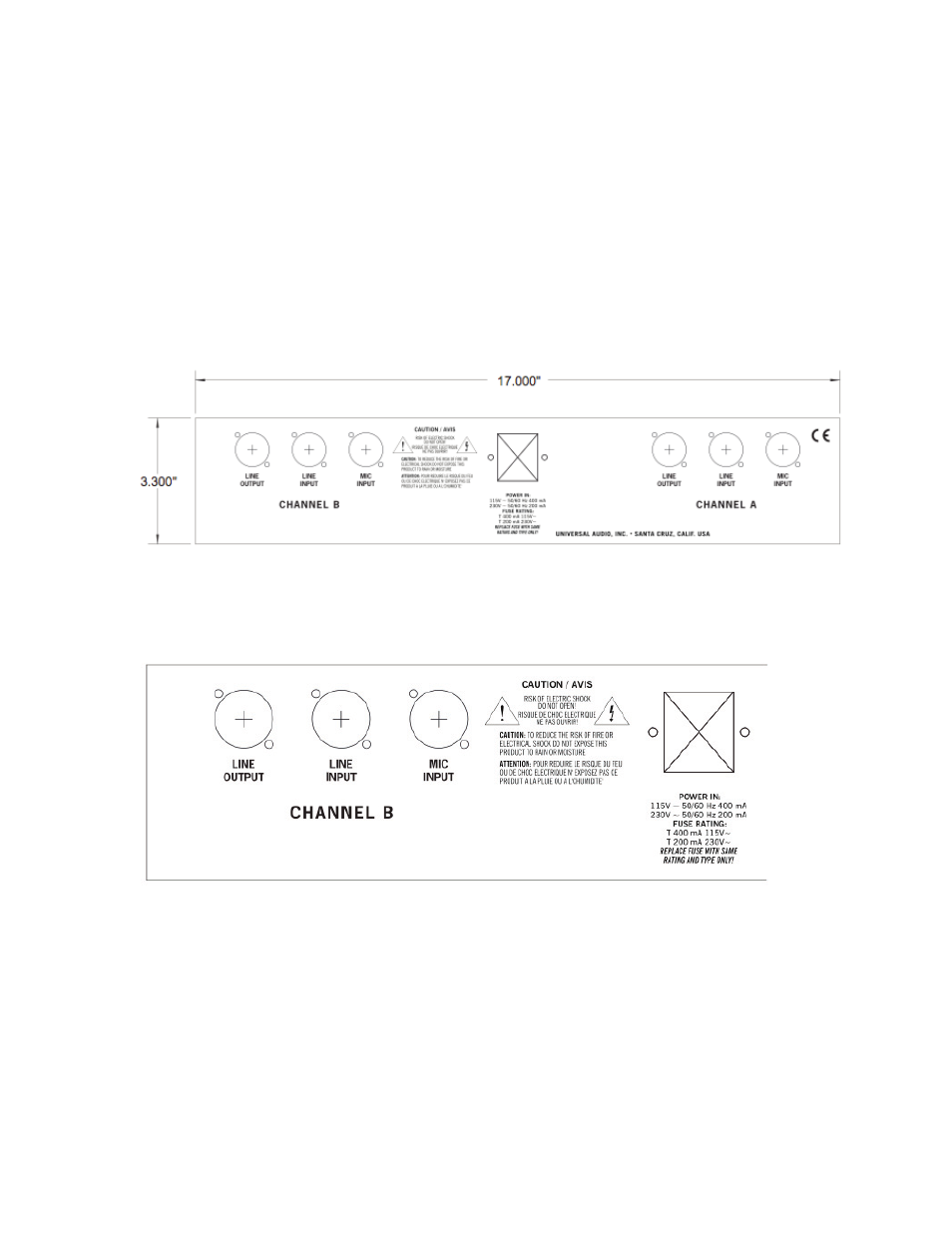

Figure 3: 2-610 rear panel
Figure 4: Detail of 2-610 rear panel
Input/Output
Standard XLR input and output connectors are provided on the rear panel. Pin 2 is wired positive (hot)
on the LINE and MIC INPUTS> Pin 2 is positive on the LINE OUTPUT when the front panel Polarity toggle
switch is down (IN ø). Pin 3 is positive on the LINE OUTPUT when the front panel Polarity switch is up
(OUT ш).
