Rear Panel
__________________________________________________________
- 6 -

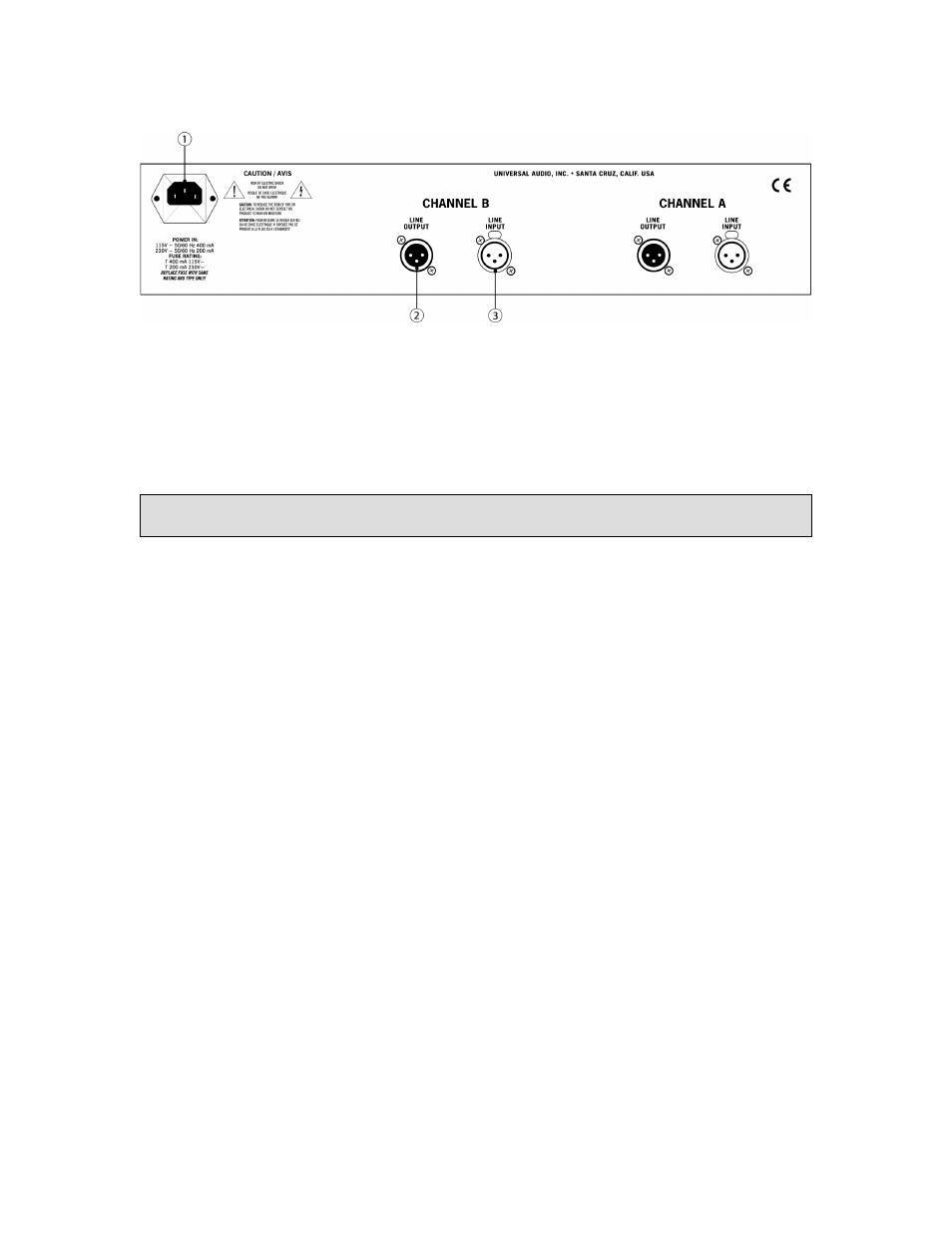

Figure 2: 2-LA-2 Rear Panel
(1) AC Power Connector - Connect a standard, detachable IEC power cable (supplied) here. If fuse
replacement is required, use only a 1.6 A time delay (slow blow) fuse for operation at 100 or 120 volts,
or an 800 mA time delay (slow blow) fuse for operation at 240 volts.
(2) LINE OUTPUT - A balanced XLR connector carrying the line-level output signal of the 2-LA-2
channel. This signal will normally be routed via a patchbay to a channel or bus insert return.
(3) LINE INPUT
- Connect line-level input signal for each channel to this balanced XLR connector.
Pin 2 is wired positive (hot). This signal will normally be arriving via a patchbay from a channel or bus
insert send.

Never substitute different fuses other than those specified here!
