ENGLISH
ENGLISH
DRAIN BODY INSTALLATION
7
8
9
10

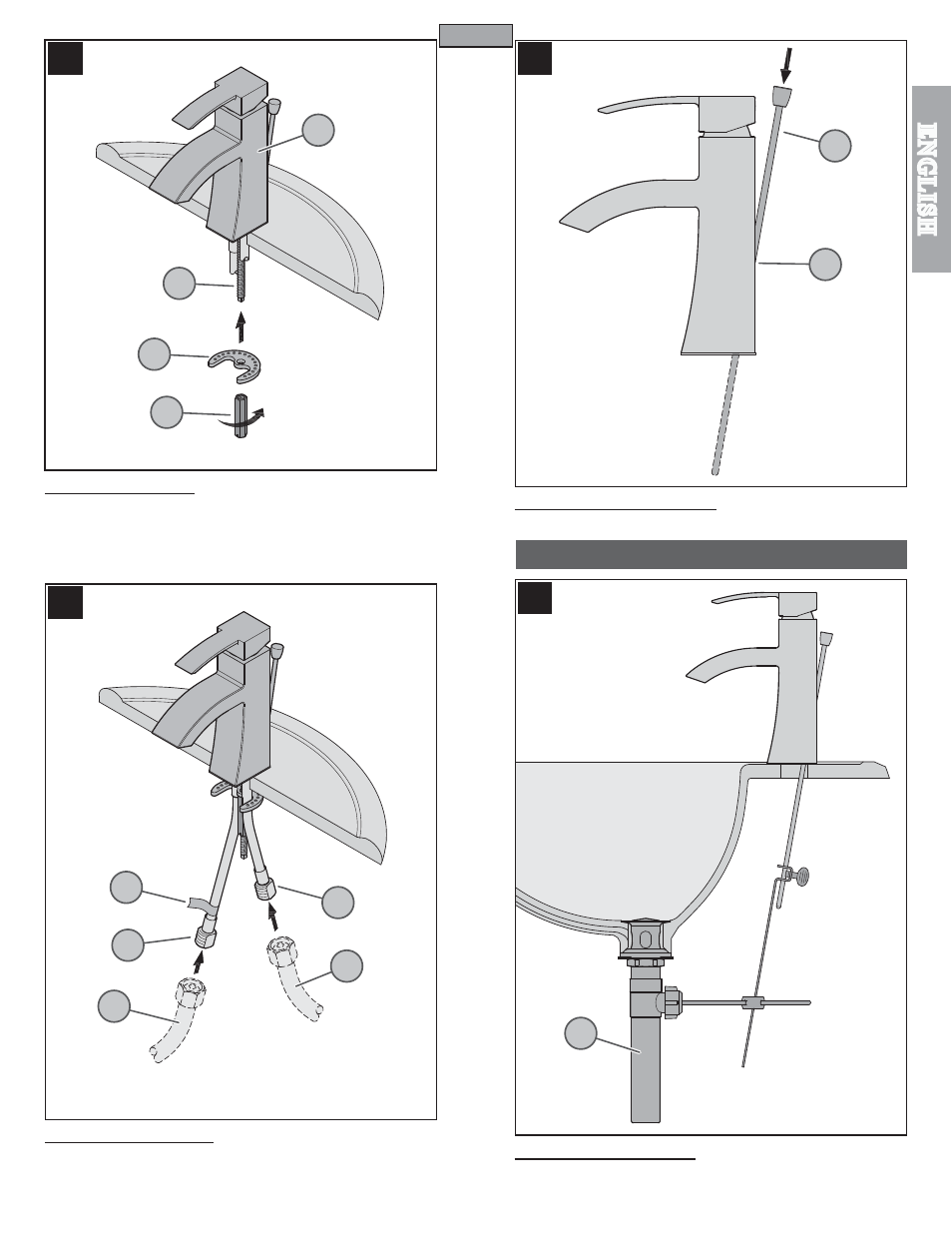

7 SECURING FAUCET
From underneath sink, secure Faucet Body (7A) by placing Metal Washer (7B) and
threading Long Nut (
7 / 16 Hex.) (7C) onto Mounting Post (7D). Make sure that the bumps
on Metal Washer (7B) are facing up. Firmly hand tighten Long Nut (7C). Secure Long
Nut (7C) not to exceed a
1 / 4 turn, after hand tight.
Caution: Do not over tighten!
8 WATER SUPPLY LINES
Connect Water Supply Lines (8A) to Faucet Inlets (8B). Hot water supply line goes to hot
inlet fitting indicated by red tag (8C). (Supply lines not included.) Follow manufacturer’s
instructions when installing supply lines.
9 POP-UP ROD CONNECTION
Insert Lift Rod (9A) into hole at the back of Faucet Body (9B).
10 POP-UP INSTALLATION
Install and adjust Pop-Up (10A) using separate instructions supplied with the Pop-Up
assembly.
3
7A
7B
7C
7D
HOT
COLD
8B
8A
8B
8A
10A
9A
9B
8C
