ENGLISH
ENGLISH

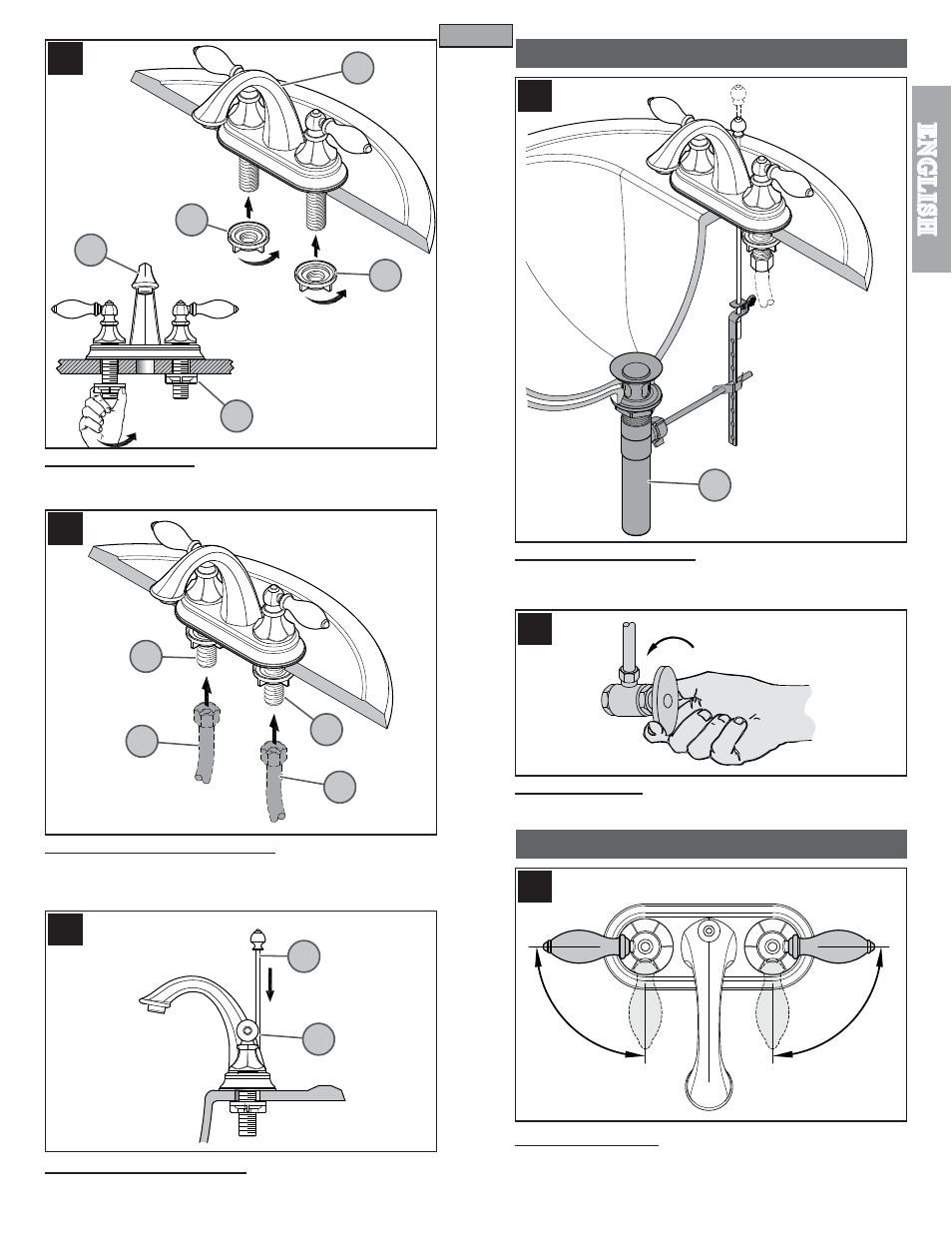

DRAIN BODY INSTALLATION
FAUCET FUNCTIONS
11
7
8
9
12
10
7 SECURING FAUCET
Place Faucet (7A) to sink surface. From underneath sink, secure Faucet using Wingnuts
(7B). Hand tighten.
8 WATER SUPPLY CONNECTIONS
Connect water Supply Lines (8A) to Faucet Inlets (8B). Hot water supply lines go into
left inlet. Cold water supply lines go into right inlet. (Supply lines are not included).
Please follow manufacturer’s instructions when installing suppy lines.
9 POP-UP ROD CONNECTION
Insert Lift Rod (9A) into hole at the back of Spout (9B).
10 POP-UP INSTALLATION
Install and adjust Pop-Up (10A) using separate instructions supplied with the Pop-Up
assembly.
11 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
12 VALVE FUNCTION
COLD valve: close-counterclockwise, open-clockwise; HOT valve: close-clockwise,
open-counterclockwise.
Note: Flush faucet before turning on valve (see step 13).
3
10A
HOT COLD
OPEN
HOT
COLD
OPEN
7B
9A
7A
7B
7B
7A
8A
8B
8B
8A
9B
