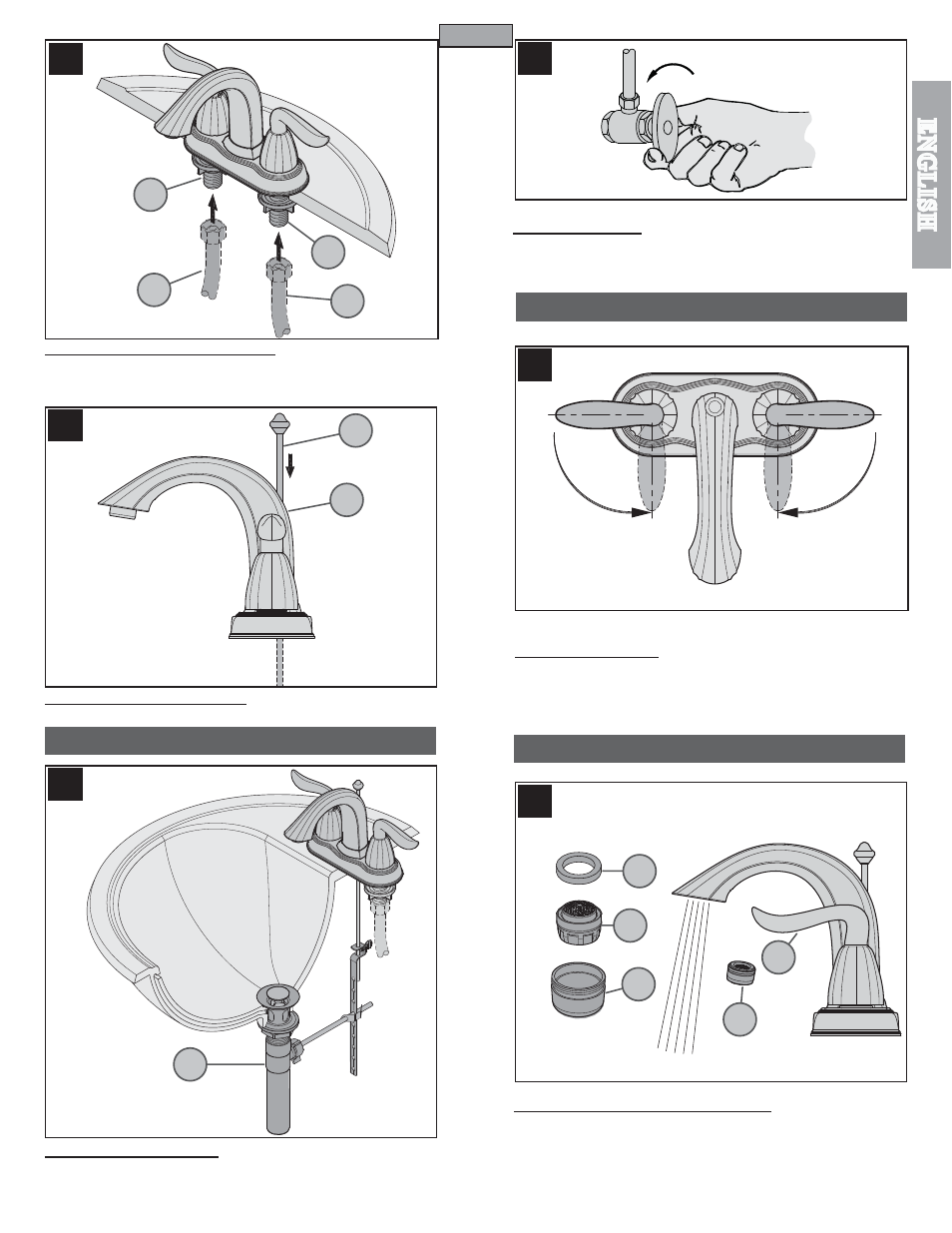

7 WATER SUPPLY CONNECTIONS
Connect water Supply Lines ( 7A) to Faucet Inlets (7B). Hot water supply lines go into left
inlet. Cold water supply lines go into right inlet. (Supply lines are not included). Please
follow manufacturer’s instructions when installing suppy lines.
8 POP-UP ROD CONNECTION
Insert Lift Rod ( 8A) into hole at the top of Spout (8B).
9 POP-UP INSTALLATION
Install and adjust Pop-Up ( 9A) using separate instructions supplied with the Pop-Up
assembly.
10 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
12 FLUSHING & AERATOR CLEANING
After installation is complete, remove Aerator Housing ( 12A). Turn Valves (12B) on
and allow both hot and cold water to run for at least one minute each. While water is
running, check for leaks. To clean the aerator, disassemble Aerator Housing (
12A) by
separating the Aerator Shell ( 12C), Basket (12D), and Washer (12E). Once parts have
been cleaned, reassemble by reversing steps.
MAINTENANCE & CARE
11 VALVE FUNCTION
COLD valve: close-counterclockwise, open-clockwise; HOT valve: close-clockwise,
open-counterclockwise.
