Connection
General information
•
Assure that the device is switched off and unplugged.
•
Read the manual of your TV and attend to the safety instructions.
•
Please establish an accurate connection.
•
Please check the video output settings. If your TV has a SCART input, choose CVBS/RGB
in “Setup -> TV System -> Video output.

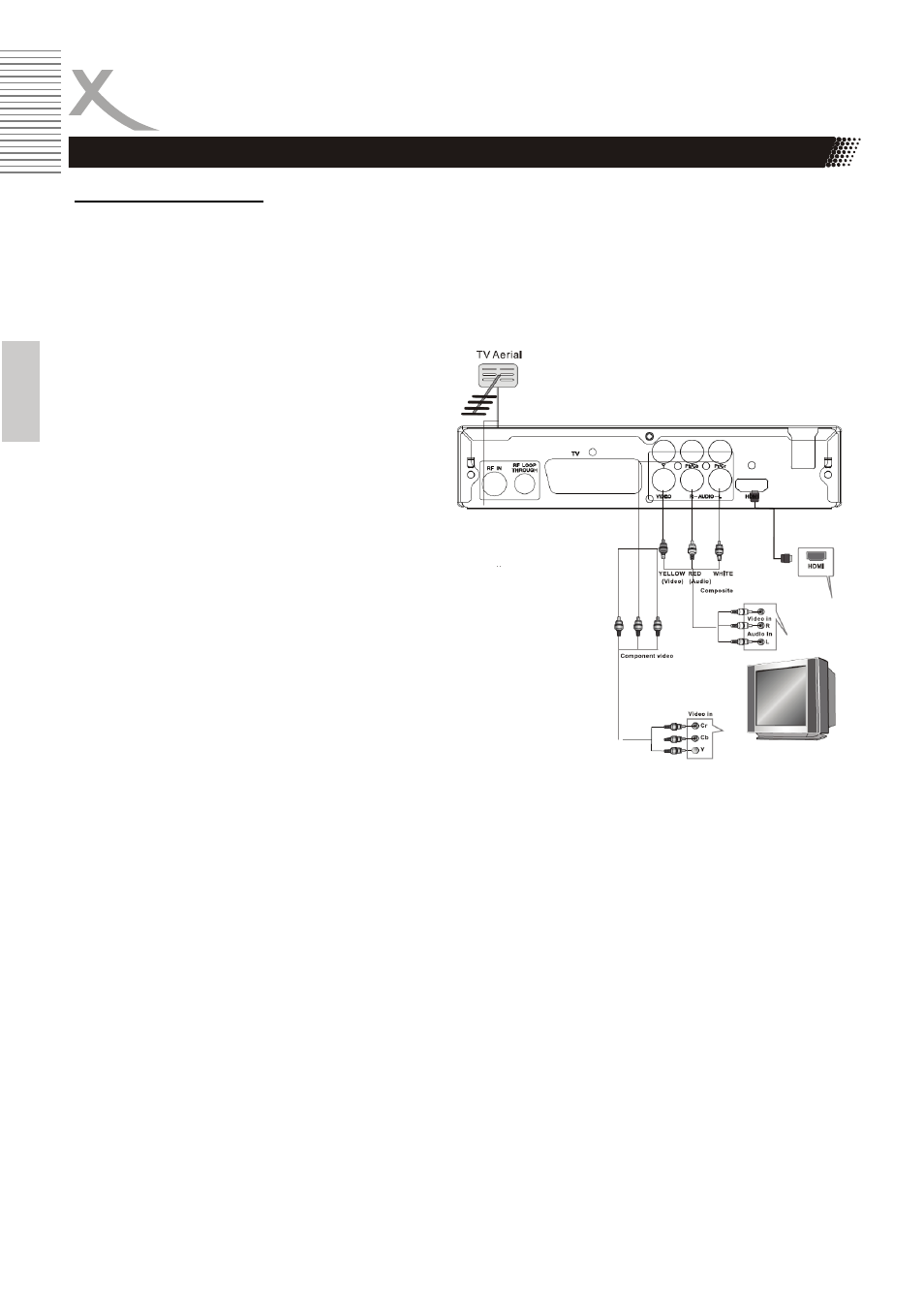

The schematic picture shows the connection
of the HRT 7510 to the antenna and the TV
1.
Connect a SCART (or HDMI) cable to the DVB-T receiver.
2. Connect the aerial cable to the aerial input (ANT IN) of the HRT 7510.
3. Connect the power cable and the plug to the wall outlet.
4. Switch on your DVB-S receiver and the TV
5. Choose the correct input SCART (or HDMI) at your TV
Note:
By using the loop through connector you can connect for example a second DVB-T Receiver.
Connecting to an Aerial and TV
