TWO YEAR WARRANTY
Assistive Listening Owners Manual
For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com
2
BELT PACK RECEIVER SETUP
Model: AL-WB
Belt pack receiver for use with Anchor Audio 16 channel base station transmitter, handheld
microphone or belt pack transmitter. The receiver operates in the UHF band frequency and is
powered by two DC 1.5V “AA” size batteries.
BELT PACK SETUP
1. INSERT BATTERIES: Open battery compartment by sliding latch down and insert
two “AA” batteries.
2. SET CHANNEL: Using the included screwdriver turn the Channel Selection Dial to the same
channel as the transmitter, close compartment door.
NOTE: Transmitter & receiver MUST be set to the same channel to operate.
3. CONNECT HEADPHONES: Insert the stereo headphone plug into the Stereo
Earphone Jack.
NOTE: For stereo audio output equipment, insert plug into the Stereo Recording Jack.
4. POWER ON: Slide the Power Switch to the “ON” position to power up the receiver.
5. VOLUME LEVEL: Adjust the volume to a comfortable listening level by turning the Volume
Control knob.
ASSISTIVE LISTENING SYSTEM OPERATION
DIVERSITY WIRELESS BY ANCHOR AUDIO
Anchor Audio Assistive Listening Systems are 16 channel UHF diversity wireless systems.
Diversity wireless technology utilizes two independent antennae to receive signals. The diversity
feature means the receiver will process the stronger of the two antenna signals, effectively
minimizing dropouts and interference from other sources.
CHANNEL SELECTION
Before you can use your wireless system, you will need to select a wireless frequency and set
the receivers and transmitters you are using to that channel.
1. Choose from any of the available wireless channels: 1 thru 16
2. Set each receiver and transmitter to the channel you have chosen
NOTE: To operate the transmitter & receiver must be set to the same channel.

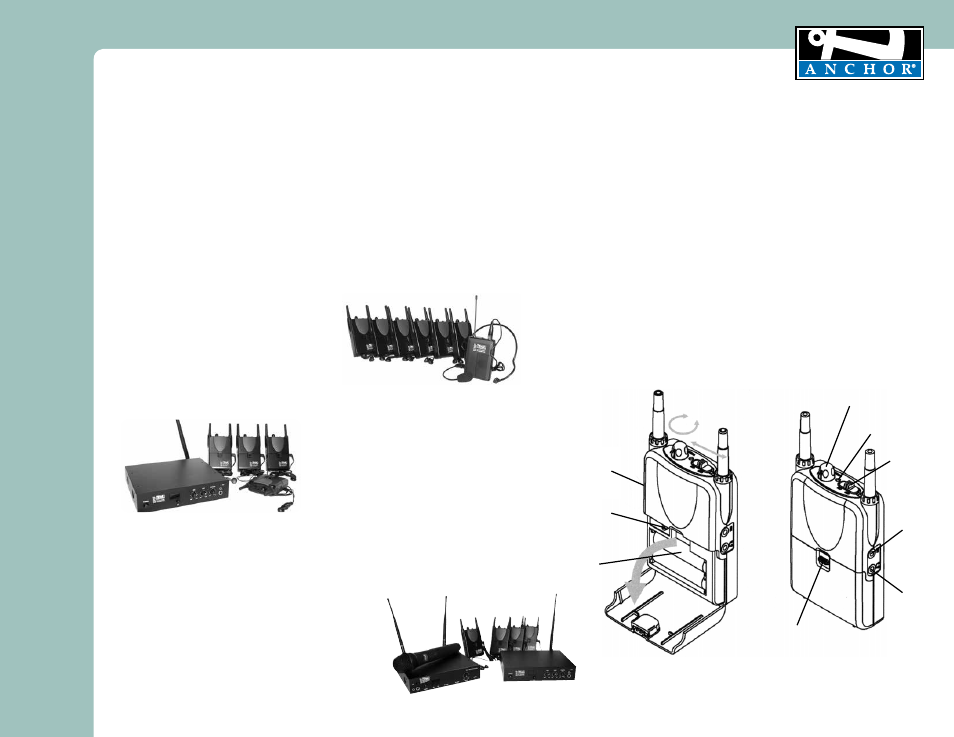

BODY PACK RECEIVER Model: AL-WB
STEREO
RECORDING
JACK
CHANNEL
SELECTION DIAL
CHARGING
INPUT JACK
(ON SIDE)
BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
LATCH
STEREO
EARPHONE
JACK
VOLUME CONTROL
POWER SWITCH
POWER LED
QUICK SYSTEM SETUP INSTRUCTIONS
TOUR GUIDE SYSTEM/TOUR-60
1. Select a wireless channel
2. Set transmitter channel
(page 3)
3. Set receivers to same channel (page 3)
4. Adjust volume on receivers to desired level (page 2)
4-USER BASIC SYSTEM/ALB-40
1. Select a wireless channel
2. Set transmitter channel
(page 3)
3. Set receivers to same channel (page 3)
4. Connect input source to transmitter -
microphone, stereo system, etc. (page 3)
5. Set output levels on transmitter (page 3)
6. Adjust volume on receivers to desired
level (page 2)
4-USER DELUXE SYSTEM/ALD-40
1. Select a wireless channel
2. Set transmitter channel
(page 5)
3. Set receivers to same channel (page 3)
4. Setup UHF-6400 wireless microphone (UHF-6400 User Manual)
5. Connect input source to transmitter - microphone,
stereo system, etc. (page 3)
6. Set output levels on transmitter (page 3)
7. Adjust volume on receivers to desired level (page 2)
