IV. Front

48 in. (1220 mm) to allow use of dryer.

V. Top

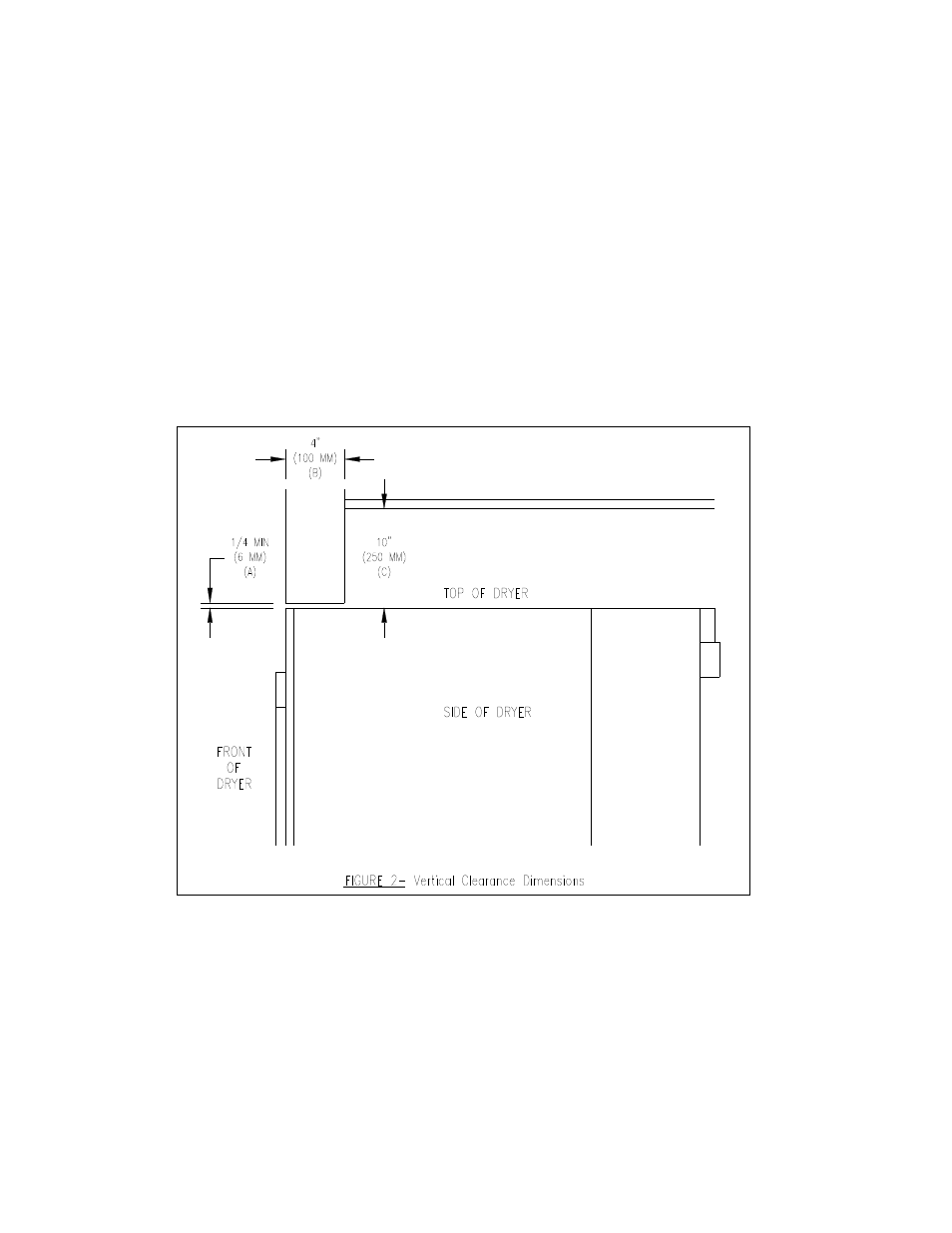

Refer to figure labeled “Vertical Clearance Dimensions”.
AB. 0 clearance is allowable at the top, 4 in. (102 mm) back from the

front. However 1/4 in. (6 mm) clearance should be allowed in case the

dryer needs moving.
C. 10 in. (254 mm) clearance is required from top at all other points.

VI. Floor If used as a stand alone dryer, this unit is intended to be installed upon an elevated

surface. The surface must be of suitable strength to support 450 pounds
(205 kg), and the dryer should be bolted or anchored to prevent horizontal
movement. The dryer may be installed upon a combustible surface.


Refer to the label attached to the Belt Guard on the rear of the dryer for other installation
information and start-up instructions.
