Forney Duct Burner - Manual (Page 2)

Pub # 404004-06
Rev 10/2011
Forney Duct Burners
Scope of Supply
Forney supplies a complete scope of equipment with our duct burner system.
Typical Scope:
Horizontal Burner Elements, Integral Flow Baffles and Supports
ANSI B31.1 Fuel Skid
Burner Management System
Scanner Cooling Air Blowers
MAXFire
® Igniter with HESI
Flame Scanner
Optional Scope:
Distribution Grid and Burner Frame (for ease of installation)
Inlet Fuel Pressure Reduction
CFD
Fuel Flow Measurement
Augmenting Air System
Interconnecting Piping
ANSI B31.3 Fuel Skid
Applications
Forney duct burners are used in various applications including:
• Cogeneration and Combined Cycle - Increase steam generation and plant power output.
• Fresh Air Firing - Used as a backup source of hot gas to HRSG/WHRU when combustion turbine is off-line.
• Air Heaters - Heat a large volume of air with minimal pressure drop.
• Process Heating - Many different process streams can be heated, including but not limited to SCR Reheat
applications, Ammonia/Urea Vaporizers and CFB inlet air heaters.
Operating Conditions
Forney duct burners offer customized solutions with flexible operating conditions.
Heat Input: 10 - 1,100 MMBtu/hr, LHV
Inlet Exhaust Gas Flow: 30,000 - 5,750,000 lbs/hr
Inlet Exhaust Gas Temperature: up to 1,250°F
Depending on specific emission requirements, augmenting air may be required when inlet oxygen levels and/or turbine
exhaust gas (TEG) temperatures are very low. Even temperature distribution is key to system performance and is
highly influenced by the uniformity of the combustion air / TEG velocity profile. Typical exhaust gas distribution to the
duct burner should be a minimum of ±20% of the average velocity over 90% of the duct cross section.

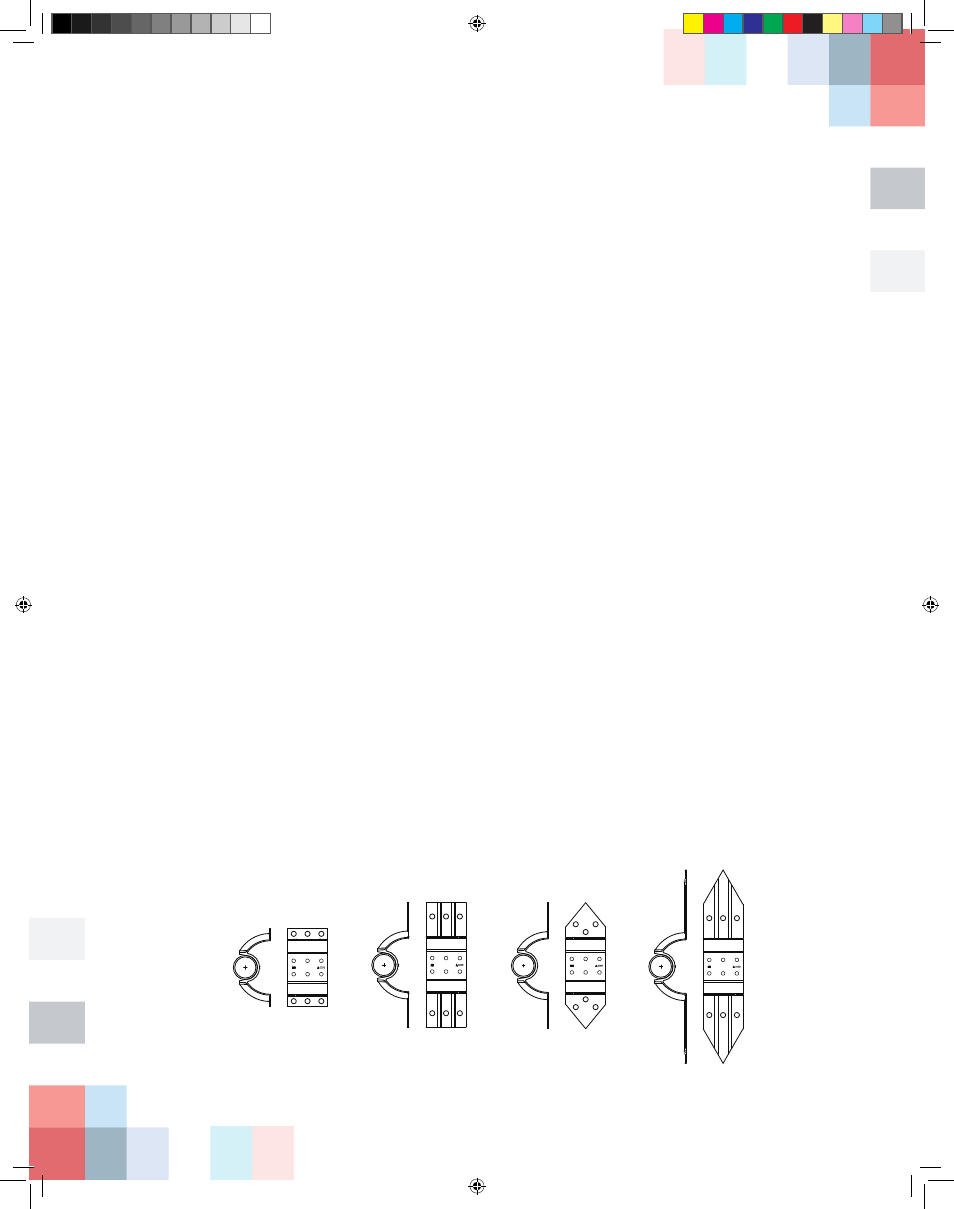

Compact
adVantage®
Modified
adVantage®
Conventional
