Front Plate
Igniter
Element Insulation Insert
SST Liner Plate
Flame Scanner
Flame Scanner
3" 150# Flange
Main Gas
Connection
adVantage
Stabilizers

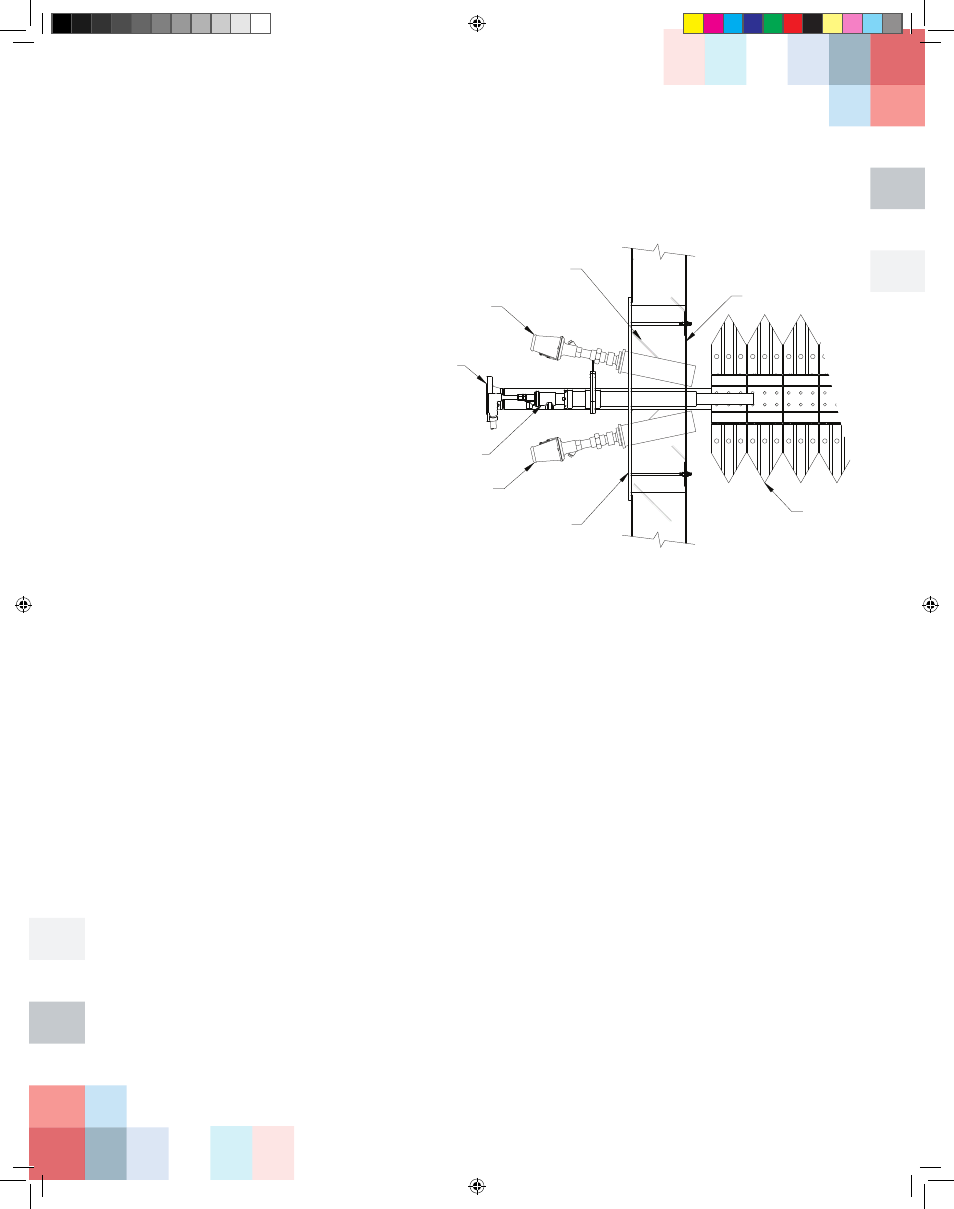

Burner Element Detail
Pub # 404004-03
Rev 10/2011
adVantage
®
Duct Burner
Scope of Supply
Forney supplies a complete scope of equipment with each duct burner system.
Typical Scope:
Horizontal (or vertical) Burner Elements
Integral Flow Baffles
ANSI B31.1 Fuel Skid
Burner Management System
Redundant Scanner Cooling Air Blowers
MAXFire® Igniter with HESI
Flame Scanner
Optional Scope:
Pressure Reducing Station
Fuel Flow Measurement
CFD
Individual Element Isolation
Interconnecting Piping
ANSI B31.3 Fuel Skid
Application Specifications
Duct cross sections:
3 to 50 feet
Heat inputs:
10 to 1100 MMBtu/hr
Inlet oxygen levels:
≥ 10.5% wet without augmenting air
Inlet H
2
O:
≤ 20% without augmenting air
TEG distribution to the burner:
± 20% of the average velocity over 90% of the cross section
Typical Emissions
For most advanced gas turbine applications firing natural gas (assuming < 12% wet H
2
O; Firing Temperatures
>1200°F), we offer the following emission guarantees over turndown - without augmenting air:
Non-Power Augmentation*
(lb/MMBtu, HHV)
Power Augmentation**
(lb/MMBtu, HHV)
NO
x
0.08
0.08
CO
0.04
0.06
VOC
0.004
0.006
PM-10 (front and back half)
0.01
0.02
*
> 11.5% wet O
2
and Burner Inlet TEG Temperature > 850°F
**
> 10.5% wet O
2
and Burner Inlet TEG Temperature > 750°F
