UV-4 DETECTOR

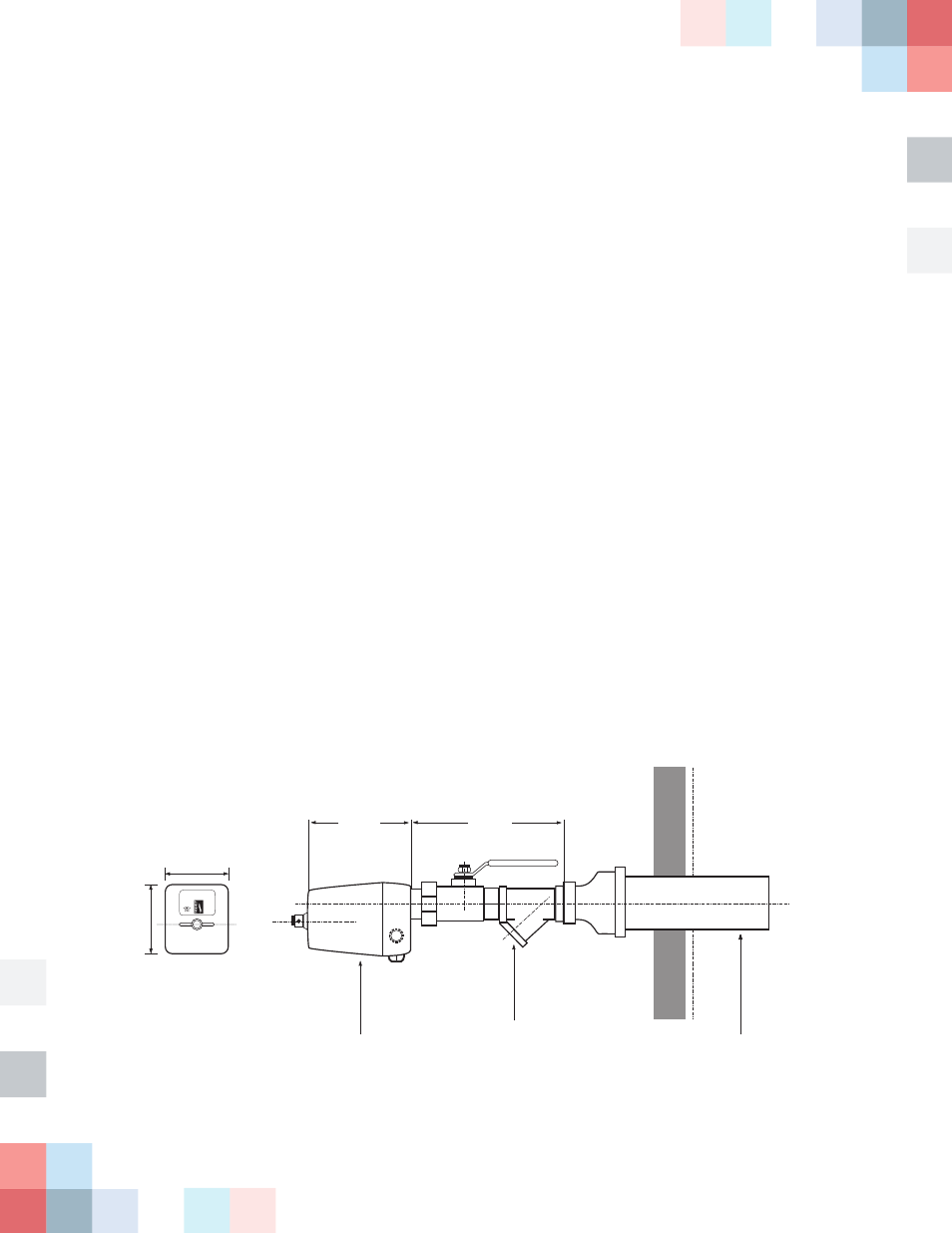

1" FNPT COOLING
AIR CONNECTION SIGHT TUBE
5.25 8.09
3.5"
4.0"
UV FLAME DETECTOR
MODEL UV-4
B-379189-02
UV-4 Flame Detector
Products and Accessories:
UV-4 Detector Part #37918902
UV-4 Base (Front Mount w/lens) Part #37900901
UV-4 Base (Fiber-optic Mount) Part #37850301
Isolation Valve & Wye Part #35275001
Four Conductor Cable (40 feet) Part #37997205
Specifications:
Mounting: 1” FNPT
Material: Die cast aluminum housing with matte black, anti-slip finish
Electrical: 15 VDC (supplied by the amplifier)
Electrical Connections: MS Bayonet Connector supplied with cable, 1/2” flexible conduit
required
Temperature Ratings: 32°F to 140°F (0°C to 60°C)
Humidity: 0-95% relative humidity, non-condensing
Cooling Air: 10 SCFM
Cooling Air Connection: 1” FNPT
Weight: 4 lbs 6 oz
Check Cycle: Once every two minutes
Sensor/Wave Length: UV photoionization tube, 190-260 nm
Approvals: Factory Mutual (FM)
Pub # 404005-17
Rev 01/2011
