Neutrik NADB15MF-B User Manual

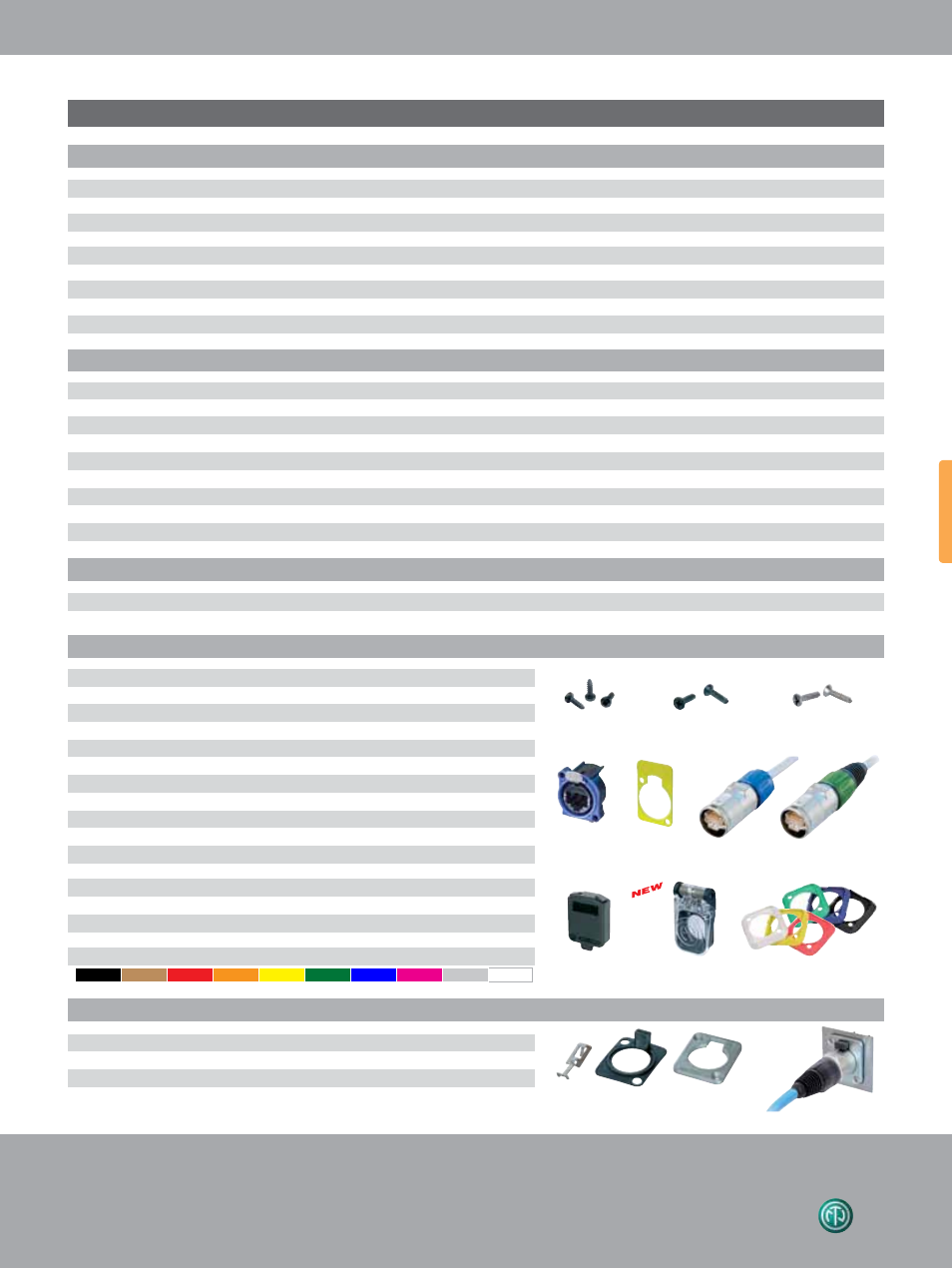

Page 17
99
A screw
E screw
E screw Nickel
DSS-*
ACRF-*
BSE-*
SCDX
SCCD-W
BSX-*
SCDP-*
www.neutrik.com
SE8FD
Waterproof kit, IP 54, consists of push, gasket, frontplate
Suitable for all NE8FD*, perfect in combination with
NE8MC-1 (with Collinox plating and sealing gasket)
C a b l e C o n n e c t o r
F e e d t h ro u g h
NE8FDP
Receptacle
(includes 2 mounting screws)
NE8FF Coupler
NE8MC
Cable housing with chuck and bushing (two antikink boots, one up to 5 mm and one up to 8 mm cable O.D.)
(standard bushing in black, 9 different coding colours on request)
NE8MC-B
Black chromium housing with chuck and bushing (two antikink boots, one for 5 mm and one for 8 mm cable O.D.)
(standard bushing in black, 9 different coding colours on request)
NE8MC-1
Cable housing with chuck and X-series bushing, Collinox plating and O-ring gasket (perfect for waterproof applications)
(standard bushing in black, 9 different coding colours on request)
NE8MC-B-1
Black chromium housing with chuck and X-series bushing
(standard bushing in black, 9 different coding colours on request)
IMPORTANT:
Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end-user!
R e c e p t a c l e
A-shape (all plastic) B-shape
(Nickel ring)
D-shape
Horizontal PCB
NE8FAH
NE8FBH
Vertical PCB
NE8FAV
NE8FBV
NE8FDV
/
NE8FDV-SE*
Vertical PCB with additional screw domes
NE8FAV-SD**
IDC terminals
NE8FAV-YK
**
NE8FDV-YK
**
IDC 110 punch down terminals
NE8FAV-Y110
**
NE8FDV-Y110
**
Horizontal PCB with metal housing (shielded)
NE8FBH-S
Horizontal PCB in CAT5e
NE8FDH-C5e
Horizontal PCB with metal housing and light pipe
NE8FBH-LED
** ... includes 2 mounting screws; * ... NE8FDV with SE8FD Waterproof kit
A-Screw
Mounting screw for A / B -shape
(black self-tapping PLASTITE
®
screw 2.9 x 8, panhead)
E-Screw
Mounting screw for D-shape
(black self-tapping PLASTITE
®
screw 2.9 x 12, countersunk)
E-Screw-Ni
Mounting screw for D-shape
(Nickel self-tapping PLASTITE
®
screw 2.9 x 12, countersunk)
ACRF-*
Colored coding rings for A-shape receptacles (Box of 100 pcs.)
BSE-*
Colored boot for cable connector carrier (Box of 100 pcs.)
BSX-*
Colored bushing for NE8MC-1 and NE8MC-B-1 cable connectors
DSS-*
Lettering plate for D series, colored plastic
NZP1RU
Panel1RU D-shape housing
SCDP-*
D-Size sealing gaskets, color coding
(*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
SCDX
Hinged cover seals D-size chassis connectors, IP 42 rated
SCCD-W
Spring-loaded cover to seals for D-size chassis connectors,
IP 65 rated
*: 0 - Black, 1- Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White
O r d e r i n g I n f o r m a t i o n
A c c e s s o r i e s
Wa t e r p ro o f k i t f o r e t h e r C O N D - S e r i e s
T e c h n i c a l D a t a
O r d e r i n g I n f o r m a t i o n
Waterproof assembly kit - SE8FD
