2. Description
The gas discharge tube S is used for observa-
tion of electrical discharges in gases under re-
duced pressure as well as for investigation of
cathode beams and canal rays, which appear at
low pressure outside the discharge path.
The gas discharge tube is a glass tube which
can be evacuated and which has luminescent
screens at either end. It is supplied in disman-
tled form and is intended to be set up on the S-
series tube holder (1014525).
3. Contents
1 Glass tube with pump nozzles
2 End caps with fluorescent screen
2 Holders with sealing washers, electrodes with
slotted apertures and 4-mm terminal pins
1 Vent valve
1 T-connector
3 Vacuum hoses (2x short, 1x long)
4. Technical data
Polarization voltage: ≤ 5 kV
Discharge current: 1.2 mA approx., de-
pending on gas pres-
sure
Connections: 4 mm contact pins
Tube length: 130 mm x 15 mm diam.
Total length: 280 mm approx.
5. Operation
5.1 Set-up for S-model discharge tube in S-
series tube holder (1014525)

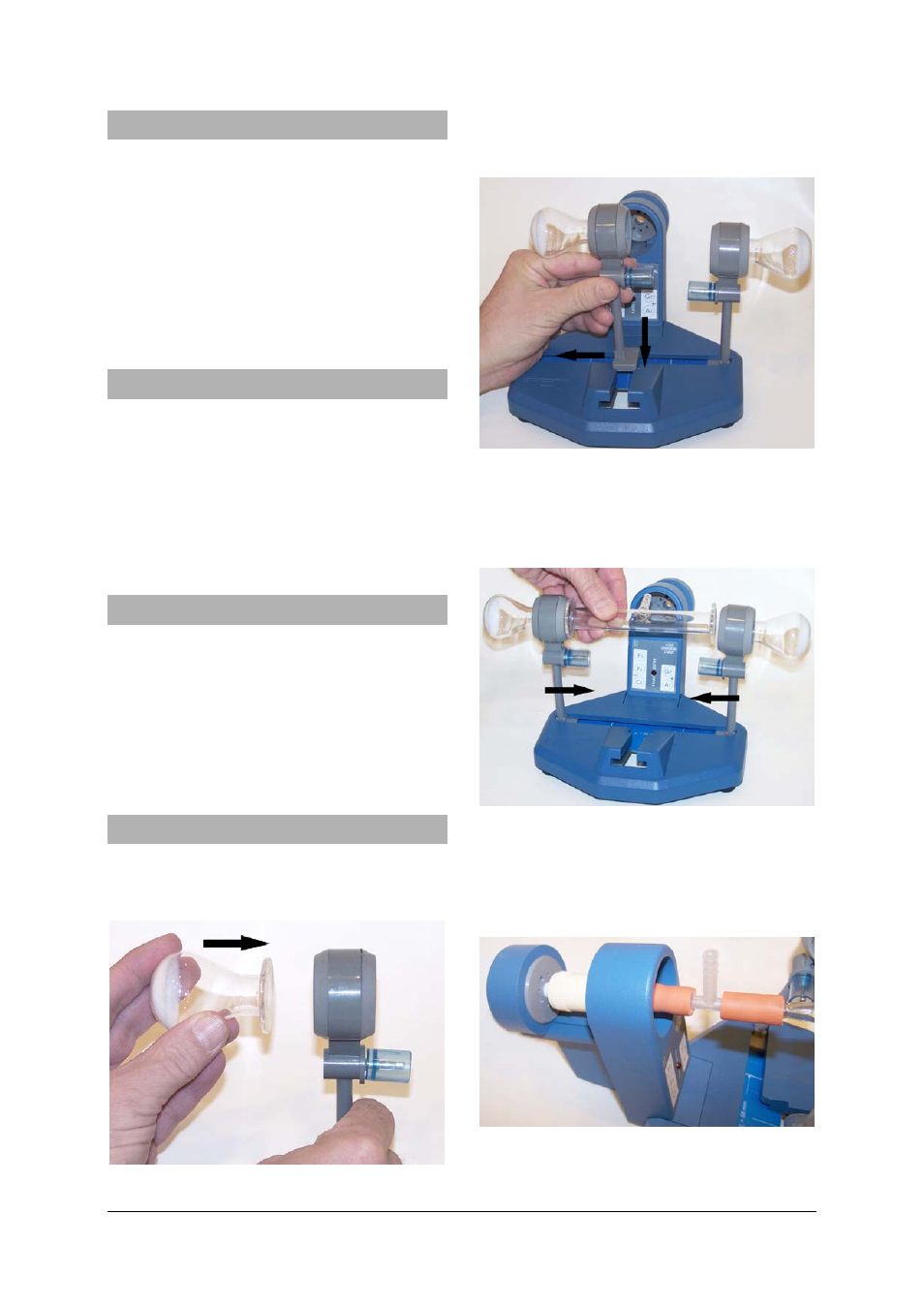

• Fit the end caps into the holder (see Fig. 1).
Fig. 1
• Slot both holders into the slit in the tube holder
unit and move them all the way to the left or
right (see Fig. 2).
Fig. 2
• Insert the glass tube into the holders. In order to
ensure that the glass tube is firmly held in place,
push the holders slightly towards the centre
(see Fig. 3).
Fig. 3
• Connect the vent valve to the T-connector using
a short hose and use the second short hose to
connect the connector to the glass tube. Insert
the vent valve into the central hole in the tube
holder
(see Figs. 4 and 5).
Fig. 4
