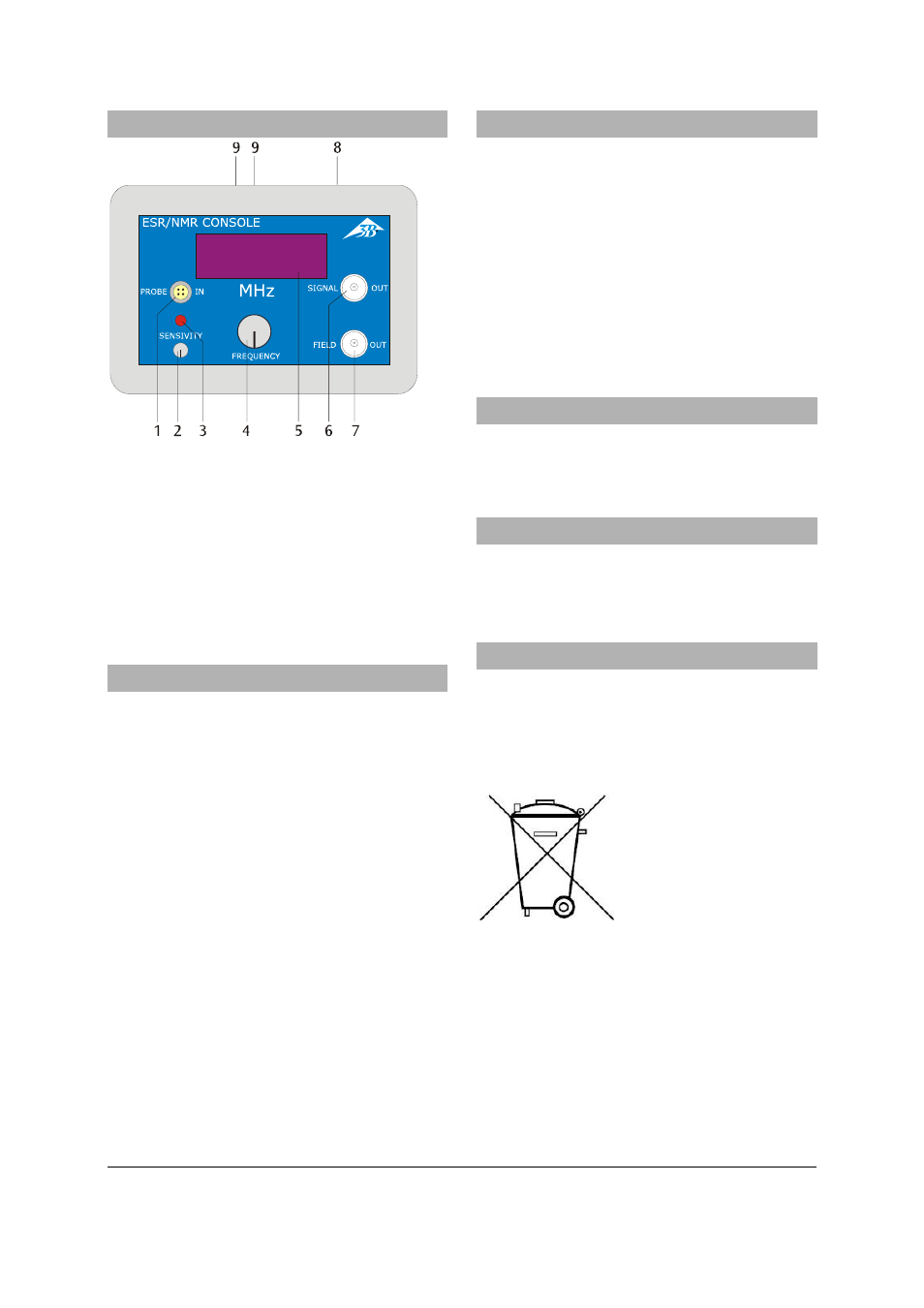

3. Control console panel

1 Connection socket for test probe
2 Sensitivity

trimmer

3 Sensitivity

indicator

4 Frequency selector
5 Frequency

display

6 Signal

output

7 Magnetic

field

output

8 Socket for power supply
9 Coil

connectors


4. Technical data

Basic unit
Dimensions: 165x105x135

mm

3

approx.

Weight:

1.25 kg approx.

Magnetic coils
Windings: 500

each

Magnetic flux density: 0 − 3.37 mT
Connectors: Coaxial

power

connectors

Dimensions:

20x74 mm diam. approx.

Weight:

0.2 kg approx.

Control console
Probe input:

4-pin Lemo socket

Coil connectors:

Sawtooth current

source, 0 − 250 mA,

50 ms, pair of co-axial

connectors

Magnetic field output: proportional to coil cur-

rent, 0 to 1 V, BNC socket

Signal output:

Resonance signal, 0 to

1 V, BNC socket

Frequency range:

45 to 75 MHz approx.(ESR)

10 to 15 MHz approx. (NMR)

Dimensions: 170x105x45

mm

3

approx.

Weight:

0.5 kg approx.

5. Additionally required equipment

1 ESR supplementary set

1000640

or
1 NMR supplementary set

1000642

1 Analogue oscilloscope, 2x30 MHz 1002727

2 High-frequency cables

1002746

alternatively
1 3B NETlog™ unit (230 V, 50/60 Hz) 1000540

or

1 3B NETlog™ unit (115, 50/60 Hz) 1000539

1 3B NETlab™ 1000544

2 High-frequency cables, BNC/4-mm plug 1002748


6. Operation

For set-up and experiment procedure see

instruction sheets for ESR (1000640) and

NMR (1000642) supplementary sets.


7. Care and maintenance

Before cleaning the equipment, disconnect it

from its power supply.

Use a soft, damp cloth to clean it.


8. Disposal

The packaging should be disposed of at

local recycling points.

Should you need to dispose of the equip-

ment itself, never throw it away in normal

domestic waste. Local regulations for the

disposal of electrical equipment will apply.
