4. Technical data
Measurement range:
0 to ±50 m/s²
Sensor type:
Capacitive semiconduc-
tor sensor
Sensitivity: Typically
400mV/g
Non-linearity:
No more than ±1% of
the full measurement
range.
Resolution:
0.03
m/s²
Band width:
typically 50 Hz
Drill hole for sensor
attachment:
3 mm diam. max.
5. Operation
•
Place the sensor box alongside the experiment
and attach the acceleration sensor (small black
box) to the mass to be investigated (target). Use
the supplied Velcro strip or a clamp for this
purpose.
•
Read the value of the acceleration from the
display on the 3B NETlog
TM
unit.
6. Applications
Demonstration track and air track experiments:
Downward acceleration
Elastic and non-elastic impact
Oscillating spring-mass system
High-resolution measurement of objects’ inclina-
tion
Pendulum oscillations
Jumping experiments; “bungee jumping”
7. Sample experiment
Acceleration measurement in a damped oscillat-
ing spring-mass system
Required equipment:
1 3B NETlog
TM
interface
U11300
1 3B NETlab
TM
software
program
U11310
1 5-g accelerometer
U11363
1 Stand base
U13270
1 Stand rod, 750 mm length
U15003
1 Stand rod, 250 mm length
U15001
2
Universal
clamps
U13255
1 Coil spring 3 N/m
U15027
1 Weight 100 g, from
U30016
•
Set up the equipment for the experiment as in
Fig. 1.
•
Run the 3B NETlab
TM
software with the appro-
priate template for the experiment using the
5g accelerometer.
•
Attach the acceleration sensor to the weight
with a piece of Velcro.
•
Suspend the weight and acceleration sensor
from the eye at the bottom of the coil spring
and be careful not to hinder the oscillating
motion.
•
Drape the connecting lead for the acceleration
sensor over the universal clamp, as shown in
Fig. 1. This adds further to the damping.
•
Pull down the weight by hand to the level of
the stand base and release it.
•
Start recording the measurement data in 3B
NETlab
TM
(Fig. 2).
•
Analyse the recorded chart.

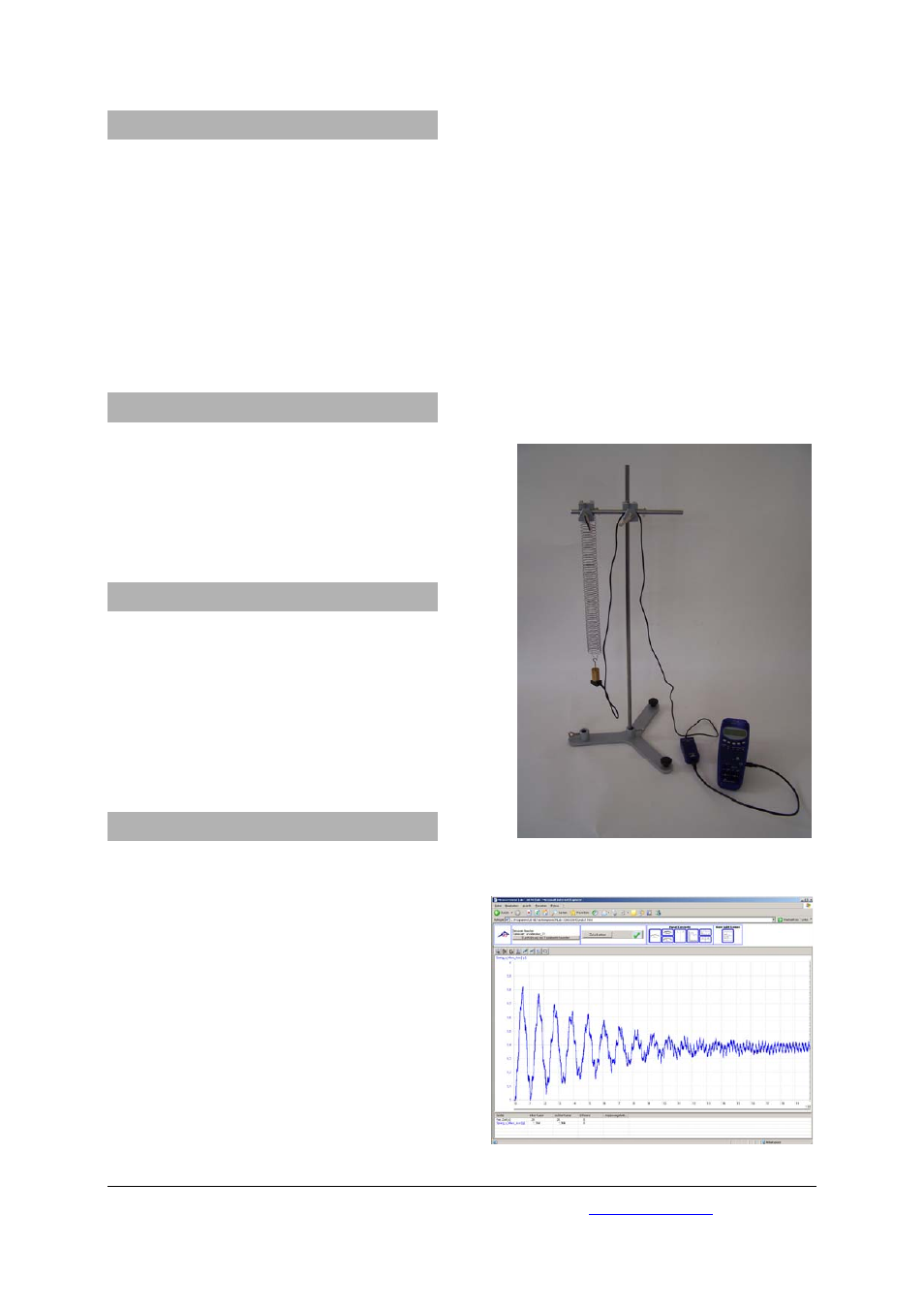

Fig. 1 Acceleration measurement for a damped oscilla-
tion of a mass on a spring
Fig. 2 Monitor display of the damped oscillation of a
mass on a spring in 3B NET
lab
TM (U11310)
