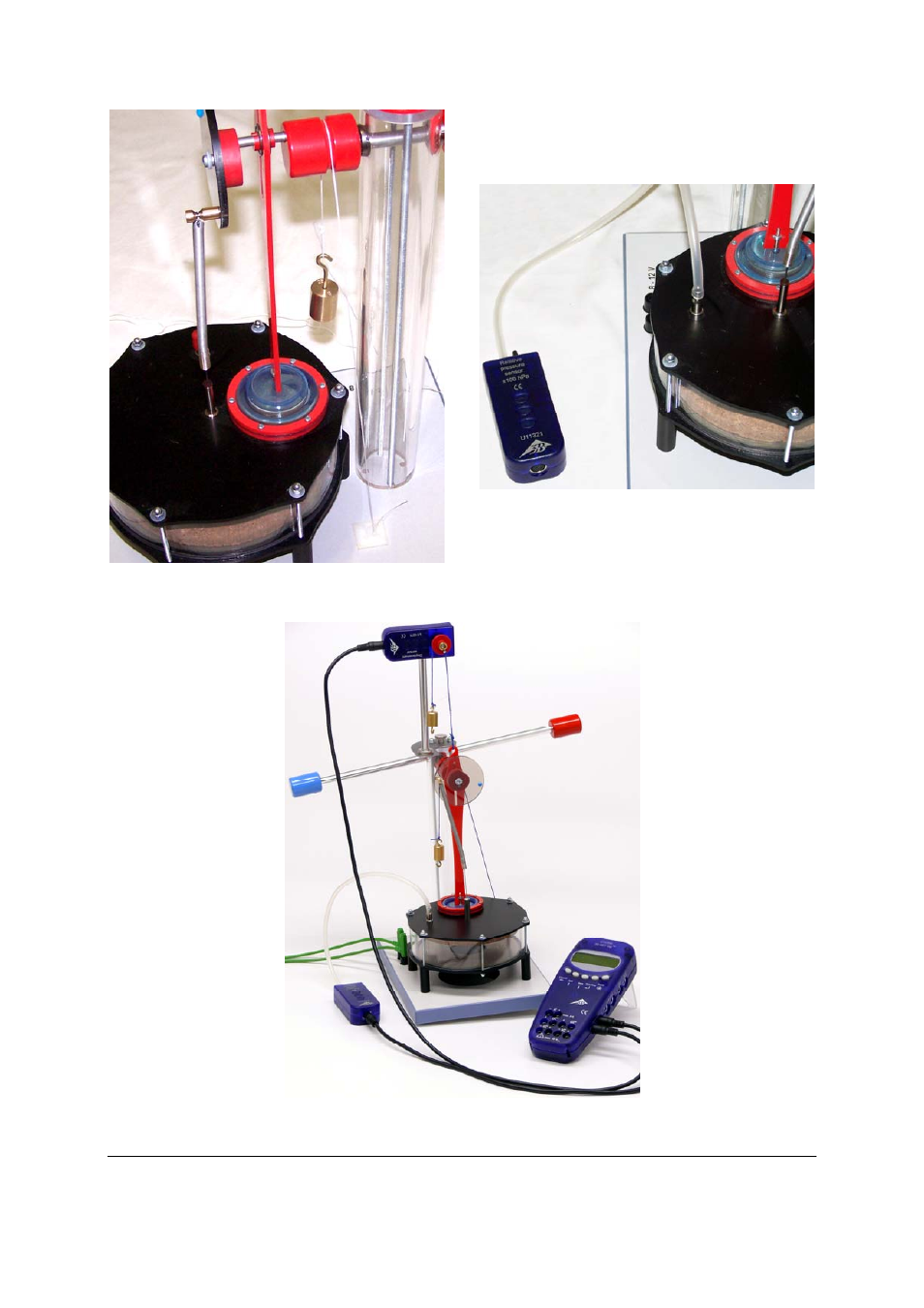

Fig. 6 A weight is attached to the end of the thread
•
Connect the relative pressure sensor (hoze nozzle
“+”) to the hose nozzle on the Stirling engine via
silicone tubing.
Fig. 7 Connecting the pressure sensor
•
Connect the pressure sensor to analog input A of
the 3B NETlog
TM
unit and the displacement sen-
sor to analog input B.
Fig. 8 Set-up for recording a pressure-volume diagram
