3B SCIENTIFIC ® PHYSICS
1
Set of Apparatus for Displaying Magnetic Fields U8491790
Instruction sheet
10/07 ALF

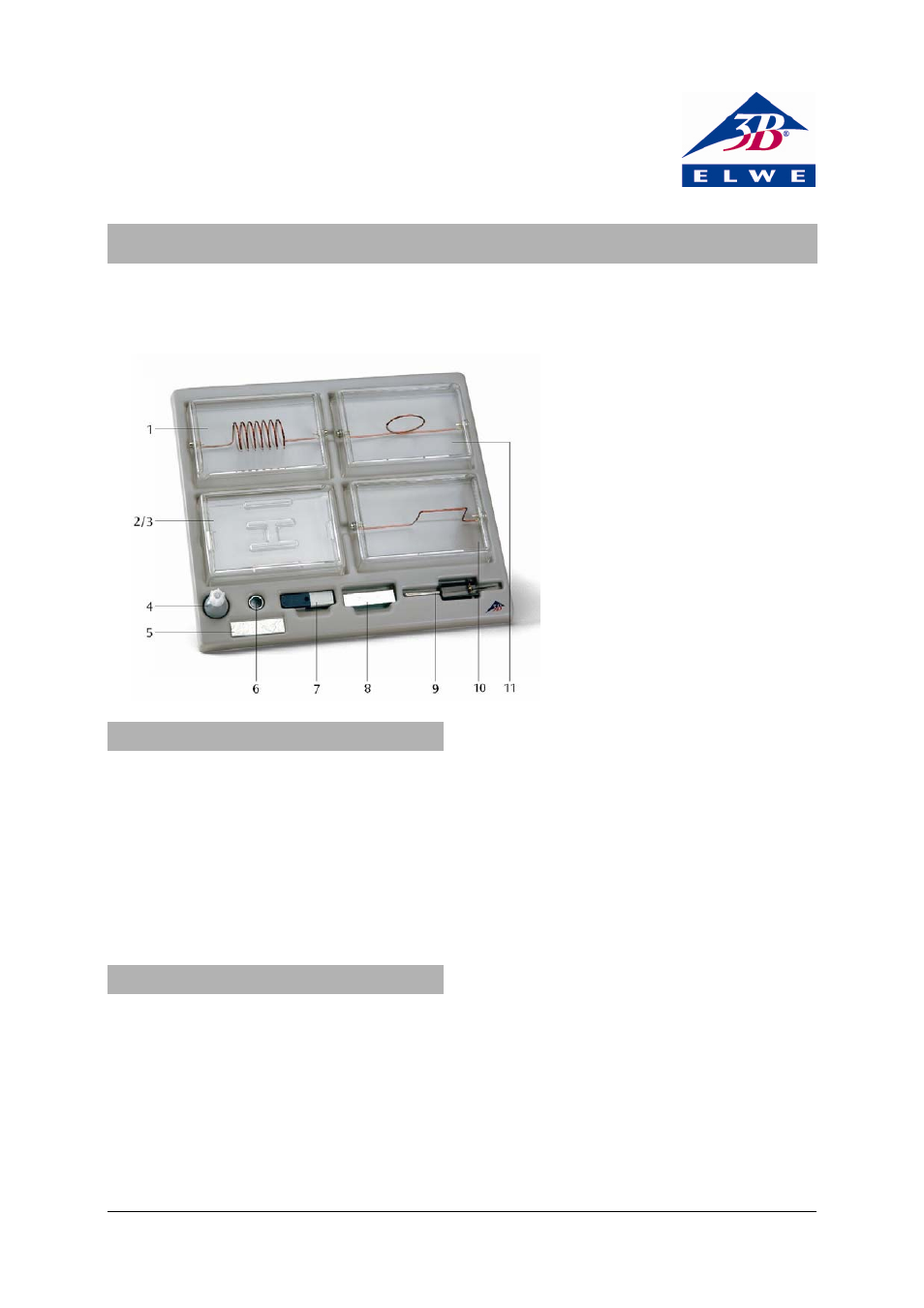

1 Cylindrical coil on box made of
Plexiglas
2 Magnet support base with guide
studs on box made of Plexiglas
3 Plexiglas box with smooth surface
4 Scattering bottle with iron filings
5 Flat soft iron bar
6 Soft iron ring
7 2 Permanent flat bar magnet
8 2 Soft iron bars
9 Magnetic needle with holder
10 Straight conductor on box made
of Plexiglas
11 Ring-shaped conductor on box
made of Plexiglas
1. Safety instructions
Currents of approx. 12 A – 15 A are required to de-
monstrate magnetic field distribution of current
carrying conductors.
• It is recommended that the power source be
switched off immediately once the lines of the-
magnetic force field become visible. (Danger
that the copper leads are damaged due to the
high current.)
• Do not touch the current carrying conductors
with your fingers.
2. Description
The set of apparatus for displaying magnetic fields is
used to illustrate magnetic field distribution of
permanent magnets and current-carrying conduc-
tors. Experiment topics include among others: mag-
netic flux lines of bar and horseshoe magnets, mag-
netic screening, magnetic induction, lines of force of
electromagnetic fields of straight conductors, ring-
shaped conductors, cylindrical coils and electro-
magnets.
The equipment kit includes 5 Plexiglas boxes as well
as 7 additional accessories (see point 2.1). The Plexi-
glas boxes used to scatter iron filings on is designed
with a recess so that after use the iron filings can
easily be refilled into the storage bottle. All of the
components are arranged in a componentshaped
premoulded storage tray. The equipment kit is also
well suited for use on a daylight projector.
2.1 Scope of delivery
1 Straight conductor mounted on Plexiglas box
1 Ring-shaped conductor mounted on Plexiglas box
1 Cylindrical coil mounted on Plexiglas box
1 Magnet pad with guide studs on Plexiglas box
1 Plexiglas box with smooth surface for scattering
materials on
2 Soft iron bars
1 Flat soft iron bar
2 Permanent flat bar magnets
1 Soft iron ring
1 Magnetic needle with holder
1 Scattering bottle with iron fillings
1 Pre-moulded storage tray
