Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.

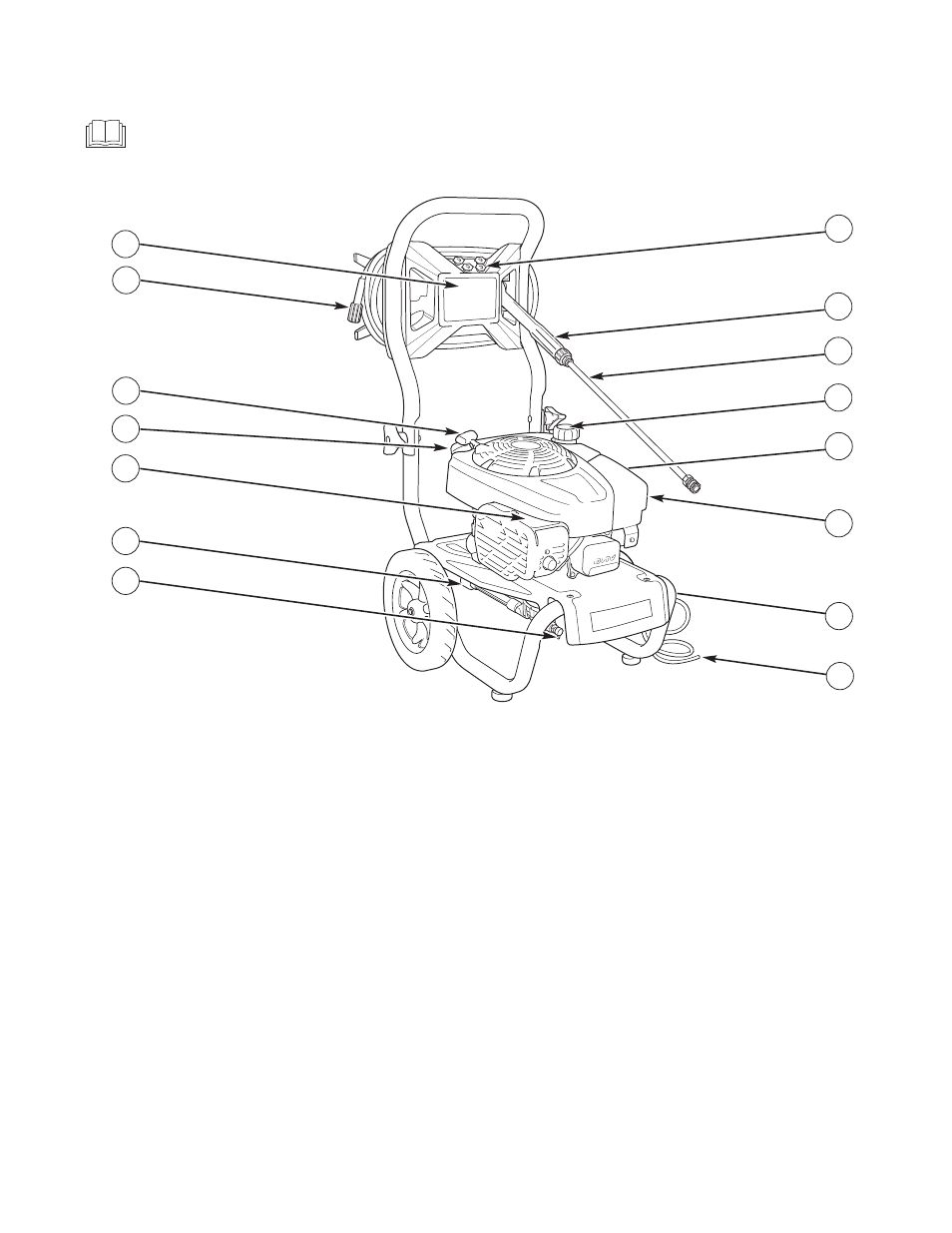

Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - Accessory Tray — Provides convenient storage for
standard and optional accessories, such as brushes,
turbo wands, etc.
B - High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
C - Recoil Starter — Used for starting the engine manually.
D - Oil Fill / Dipstick — Check, fill and drain oil here.
E - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
F - Water Inlet — Connection for garden hose.
G - Automatic Cool Down System — Cycles water through
pump when water reaches 125°-155°F (51°C-68°C).
Warm water will discharge from pump onto ground. This
system prevents internal pump damage.
H - Detergent Siphoning Tube — Use to siphon pressure
washer safe detergents into the low pressure stream.
J - Pump — Develops high pressure.
K - Air Filter — Protects engine by filtering dust and debris
out of intake air.
M- Engine Rocker Switch — Push this switch to on position
(I or ON) before using recoil starter. Push switch to off
position (O or OFF) for shutting off engine.
N - Fuel Tank — Fill tank with regular unleaded fuel. Always
leave room for fuel expansion.
P - Nozzle Extension with Quick Connect — Allows you to
switch between three different spray tips.
R - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger
lock.
S - Spray Tips — Detergent, 0°, 15° and 40°: for various
high pressure cleaning applications.
Items Not Shown:
High Pressure Outlet — Connection for high pressure hose.
Identification Label (near rear of base plate) — Provides
model and serial number of pressure washer. Please have
these readily available if calling for assistance.
Warning/Operating Instructions Tag — Identifies hazards
and proper procedure to start/stop pressure washer.
