Sink Contents
Confirm that all parts for the sink have been included before
beginning installation.

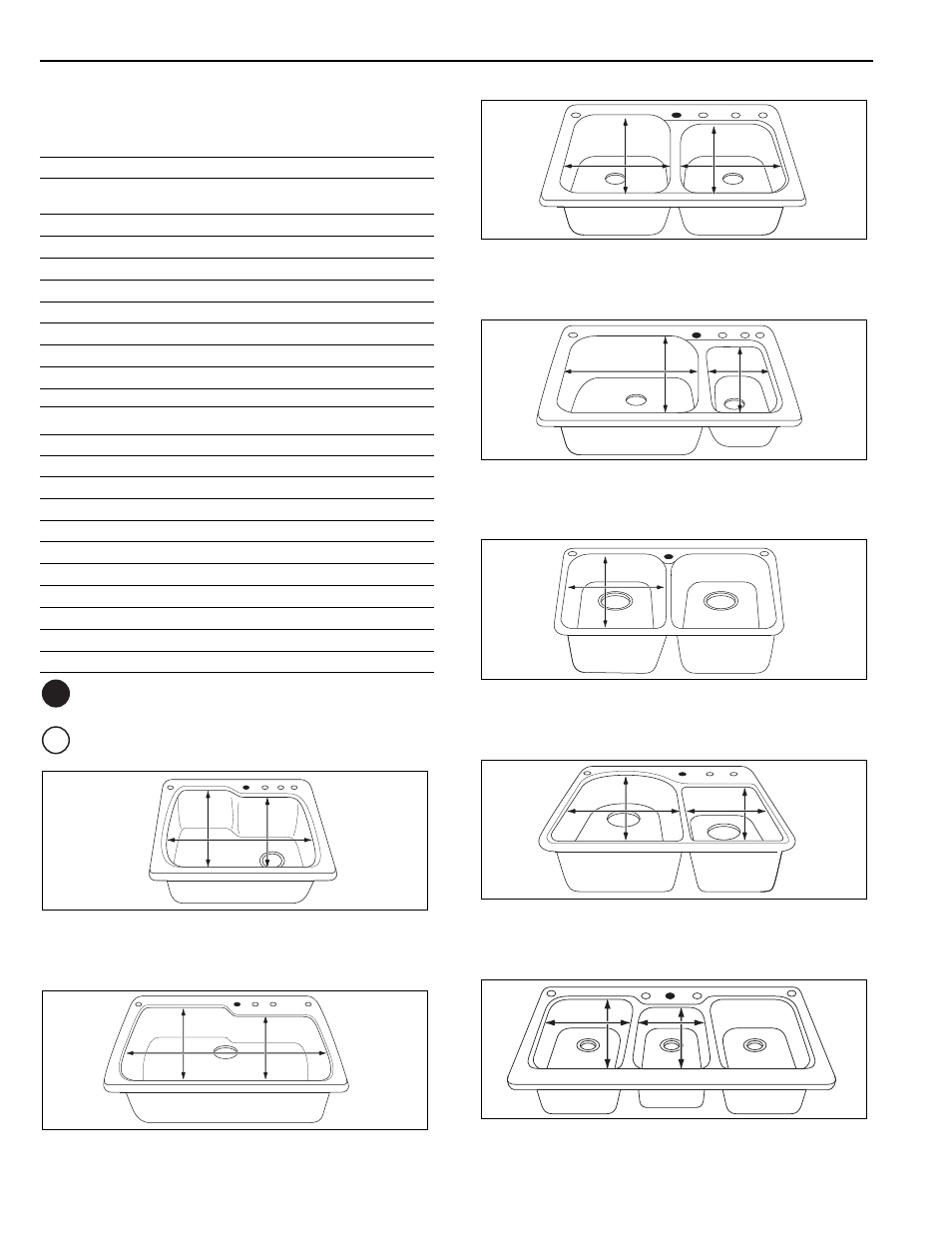

Inside Bowl Dimensions
Depth
Model A B C D (Right-Left)
KSSB-2522 21-1/8” 17-5/8” 15-5/8” — 9”
KSSB-3322 29-3/4” 19” 16-1/2” — 9”
KSDB-3322 14-7/16” 18-7/8” 13-3/4” 15-1/4” 9”-9”
KSLS-3322 19-3/8” 18-7/8” 8-7/8” 15-5/8” 9”-7”
KSLB-3322 14-3/8” 18-7/8” — — 10”-10”
KSDB-2518 12” 14-3/4” 12-3/8” 8-3/4” 7-1/2” - 7-1/2”
KSTB-4422 14-3/8” 18-1/2” 16” 9” 9”-7”-9”
KSRB-18 15-3/4” 1-3/8” — — 8-1/2”
BS-1515 12” 10-1/2” — — 5”
Sink Cutout Dimensions
Model Width Depth
KSSB-2522 24-3/8” (619mm) 21-3/8” (543mm)
KSSB-3322 32-3/8” (822mm) 21-3/8” (543mm)
KSDB-3322 32-3/8” (822mm) 21-3/8” (543mm)
KSLS-3322 32-3/8” (822mm) 21-3/8” (543mm)
KSLB-3322 32-3/8” (822mm) 21-3/8” (543mm)
KSDB-2518 24-3/8” (619mm) 17-3/8” (441mm)
KSTB-4422 43-3/8” (1102mm) 21-3/8” (543mm)
KSRB-18 17-7/8” (454mm) dia.
BS-1515 14-3/8” 14-3/8”
Predrilled Hole
Premarked Hole Location on Underside of Sink
KSSB-2522
25” x 22” (635mm x 559mm)
Depth 9” (229mm)
KSSB-3322
33” x 22” (838mm x 559mm)
Depth 10” (254mm)
KSDB-3322
33” x 22” (838mm x 559mm)
Depth 9” (229mm), Depth 9” (229mm)
KSLS-3322
33” x 22” (838mm x 559mm)
Depth 9” (229mm), Depth 7” (178mm)
KSLB-3322
33” x 22” (838mm x 559mm)
Depth 10” (254mm), Depth 10” (254mm)
KSDB-2518
25” x 18” (635mm x 475mm)
Depth 7-1/2” (191mm), Depth 7-1/2” (191mm)
KSTB-4422
44” x 22” (1118mm x 559mm)
Depth 9” (229mm), Depth 7” (178mm), Depth 9” (229mm)
B
A
C
D
B
A
C
D
B
A
B
A C
D
B
A
C
D
B
A
C
B
A
C
