Peerless-AV IBA4-W - Installation User Manual

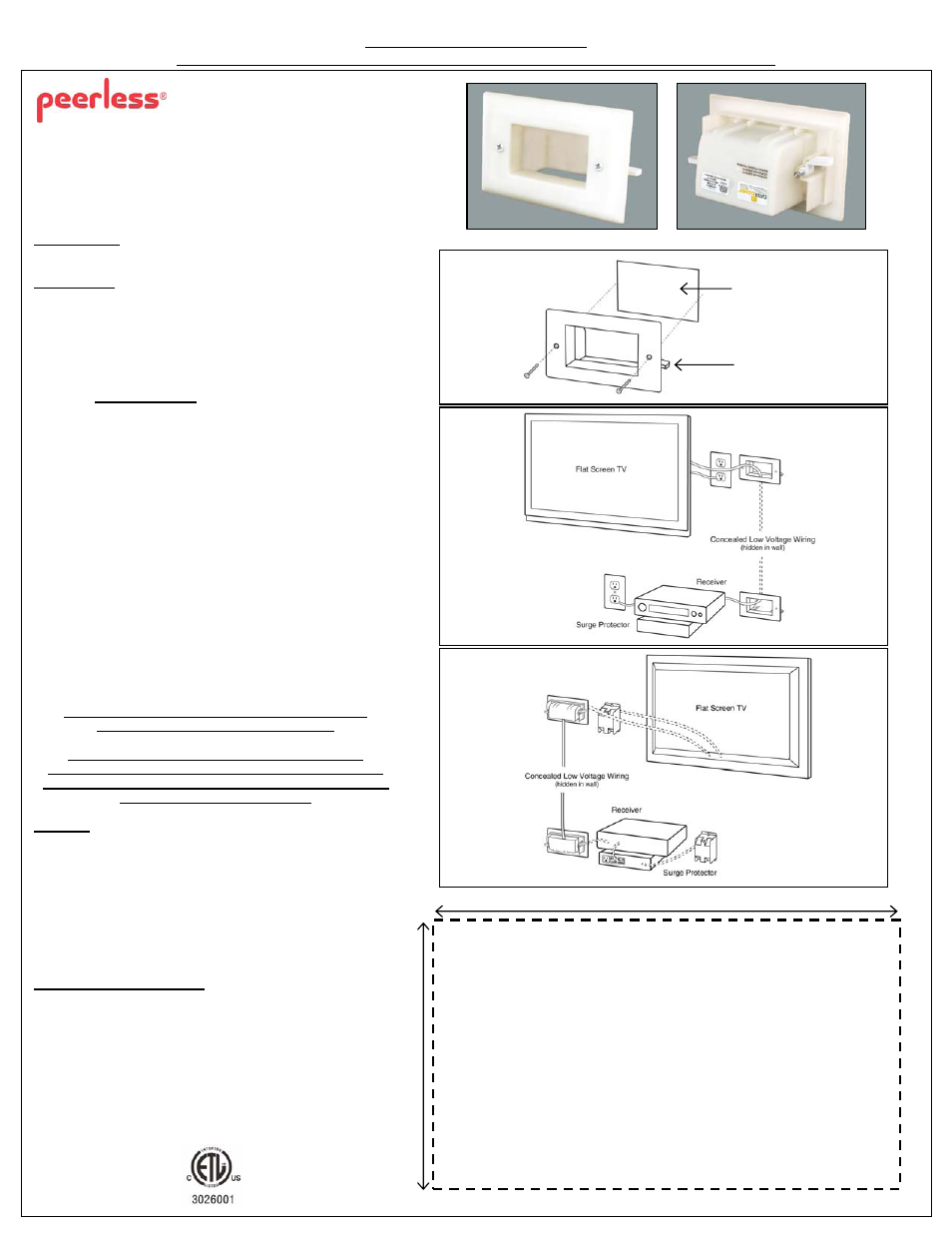

Template, Iba4-w easy mount recessed low voltage cable plate, Actual size

background image

4-1/16”

Parts Included

1. One (1) Easy Mount Recessed Low Voltage Cable Plate

Tools Needed

1. Drywall saw

2. 6 Ft. tape measure

3. Pencil

4. Screwdriver

Use Peerless Industries, Inc.’s Easy Mount Recessed Low

Voltage Cable Plates to install low voltage cables behind your flat

panel TV, (see Figures 2 & 3), your amplifier or other audio and

video devices. These recessed low voltage cable plates are

designed for use with

Low Voltage / Data Cables “ONLY”.

Easy Mount Recessed Low Voltage Cable Plates are designed

with the low voltage mounting brackets molded to the back of the

plate (see Figure 1). The wall plate can be installed upright or

upside down (see Figures 2 & 3 for upright installation).

Determine the location of your flat panel TV, amplifier or

audio/video device. Use the enclosed template to cut a hole in

the drywall. When cutting the hole in the drywall, allow for the

location of the stud. Now simply pull your audio/video cables

through the wall and through the opening in the Easy Mount

Recessed Low Voltage Cable Plate (to help insert larger cables

through the opening in the wall plate, the back scoop of the wall

plate is removable). Now insert the Easy Mount Recessed Low

Voltage Cable Plate flush into the wall. Next, screw down the wall

plate screws with wings. The wings will fasten tightly against the

back of the drywall (see Figure 3) and your installation is

complete.

These Recessed Cable Plates are Designed for Use

with Low Voltage / Data Cables “ONLY”.

Do Not Run or Pull the TV Cord or Other Electrical

Cords Inside the Drywall. National Electrical Code (NEC)

Does Not Allow the Installation of the TV Power Cord or an

Extension Cord Behind the Wall.

CAUTION

Never install low voltage wiring during lightning storms.

Never install low voltage wiring in wet locations

unless the wire is specifically designed for wet

locations.

Never touch un-insulated low voltage wires or

terminals unless the wire has been disconnected at

its source.

Use caution when installing low voltage cables.

IMPORTANT INSTRUCTIONS

Read and understand all instructions.

Follow all warning and instructions marked on the

product.

Do not use this product near water, for example

near a bath tub, wash bowl, kitchen sink, or

laundry tub, in a wet basement, or near a

swimming pool.

SAVE THESE INSTRUCTIONS.

Figure 2 - Front View

Instruction / Installation Sheet

Peerless Industries, Inc. IBA4-W Easy Mount Recessed Low Voltage Cable Plates

This product is patent protected by U.S. Patent number 7390964

RoHS Compliant

Peerless Industries, Inc.

2300 White Oak Circle

Aurora, IL 60502

800.865.8870

708.865.2110

www.peerlessmounts.com

Figure 1

Figure 3 - Back View

w

e

i

V

k

c

a

B

W

-

4

A

B

I

w

e

i

V

t

n

o

r

F

W

-

4

A

B

I

Low Voltage Mounting

Bracket Wing

2-5/16

TEMPLATE

IBA4-W

Easy Mount Recessed Low Voltage Cable Plate

ACTUAL SIZE

CUT ALONG DOTTED LINE 

Using Template (below),

Cut a Hole in the Drywall

ISSUED: 12-09-10 DOC#: 125-9168 Rev. 1
