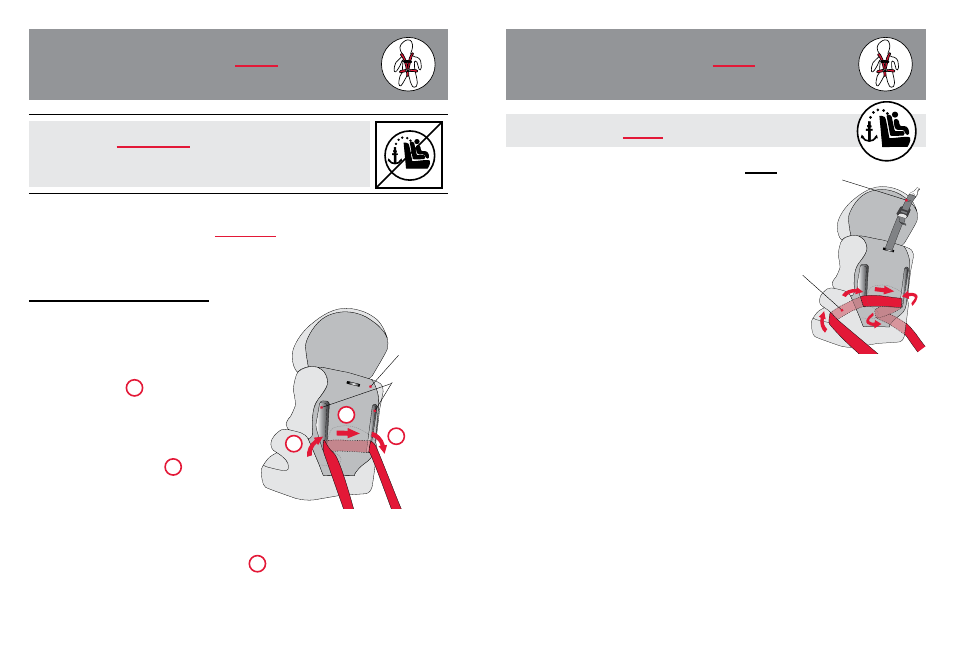

BabyTrend HYBRID 3-IN-1 - Manual (Page 15)

Installation WITHOUT Top Tether
“REAR ENTRY” Belt Routing
The “REAR ENTRY” belt routing is used to secure the Toddler Car Seat
(WITH Harness) when installed WITHOUT the Top Tether. The LATCH
lower anchor belt and vehicle seat belts are routed through the “REAR
ENTRY” belt path in the same way.
“REAR ENTRY” Belt Routing
• From the rear of the car seat,
insert the LATCH connector or
the vehicle seat belt latch plate
into the Belt Path Opening in the
Back Support .
• Pull the LATCH or vehicle seat
belt through the Belt Path Opening
and across the front of Back
Support to the Belt Path Opening
on the opposite side .
• From the front of the Back
Support, insert the LATCH
connector or the vehicle seat belt
latch plate into the Belt Path Opening
in the Back Support and pull the
LATCH or vehicle seat belt through .
Note: Store tether on back of seat when not in use
as shown on page 41.
27
7.0
Toddler Car Seat ( With Built-in
Harness) Installation and Use
Back
Support
Belt Path
Openings
1
1
2
3
2
3
7.3 Installation WITH Top Tether
The “FRONT ENTRY” belt routing, must
be used when the Top Tether is used to
secure this Car Seat.
Based on the seating location selected,
identify if LATCH, vehicle Lap/Shoulder
or vehicle Lap Belt only will be used
to secure the Car Seat. Use the
LATCH system when available.
Follow the steps in the following
sections for the type of belt that
will be used to secure the Car Seat.
The Top Tether must be secured and tensioned properly when using
the “front entry” belt routing.
7.0
Toddler Car Seat ( With Built-in
Harness) Installation and Use
28
Top
Tether
FRONT
ENTRY
Belt
Routing
