5
XNBP SERIES INSTALLATION
Illuminite TM Lighting Hook-Up Recommendations
The illuminite lighting elements of your XiNBP series products provide you with a unique
custom touch to your vehicle. Dual 's patent pending illuminite bulb system and contr ol
circuitry provides an extraordinary Blue-Hue illumination which allows great creative
opportunities for the beginner and seasoned custom installer alike. The interior of your
vehicle will never sound or look ordinary again. Let your imagination take you there.
The lighting features of all illuminite products require a 12 volt power source to operate.
The speaker has two distinct sets of input terminals. The first is labeled audio input
terminals and the second is labeled illuminite lighting inputs. The inputs are clearly
marked with a label positioned directly above the terminal housing. The polarity (+ and -)
indicators for each set of inputs also appear on these labels.
1. Do not connect Amplifier or any audio source to illuminite lighting inputs. Inputs are
designed for switched 12 volt DC power source only. . Do not connect your illuminite product
directly to your battery permanently, as if will cause your battery to discharge. Please use
a switched 12 volt source.

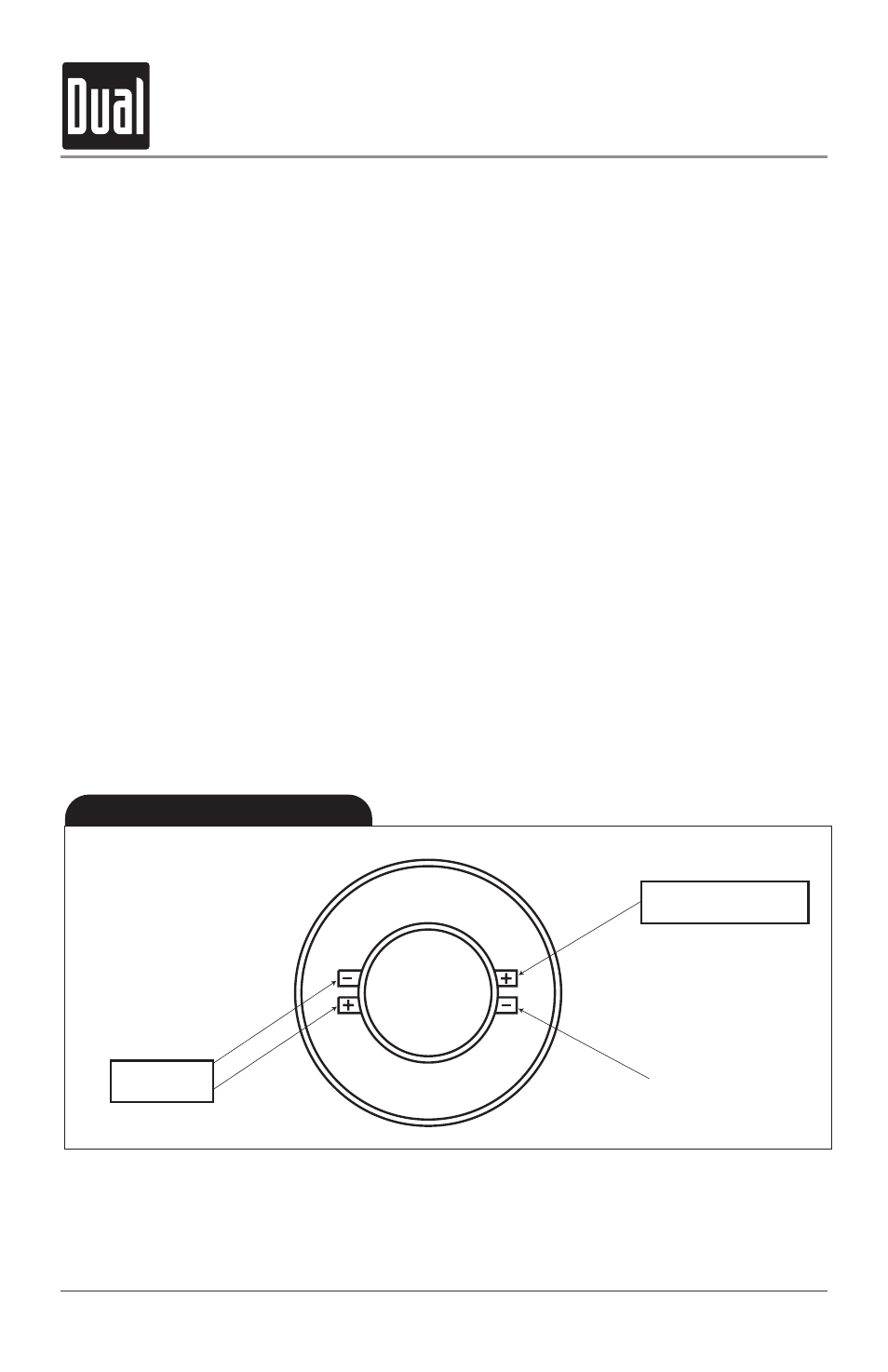

2. See fig. 1a, (illustrates wiring diagram) be sure to maintain polarity. Be sure to connect
to a constant switched 12 volt source. Correct connection would be the positive (+) 12
volt wire to the Positive (+) illuminite lighting input terminal and connect the negative
(-) illuminite lighting input terminal to a good chassis ground.
Fig 1a
Notice: The XiNBP series illumination elements are not removable. There are no serviceable
parts inside or attached to the speaker assembly. The XiNBP series products are sensitive
electronic devices. Removal or tampering with any part or portion of the speaker and/or
its assemblies will damage the product and void the limited warranty.
Audio Input
Terminals Illuminite Lighting
Input Terminals
Lighting Hook-Up From Rear
Head unit
12 volt DC source
Ground
